HIKMICRO

• High sensitivity thermal module NETD < 20 mK (@25C, F# = 1.0)
• 384×288 resolution with 12 detector
• 1024×768 resolution 0.39-inch OLED display
• Replaceable and rechargeable Li-ion battery
• 270 g lightweight, with a compact and ergonomic design
• Up to 6.5 hours of continuous operation

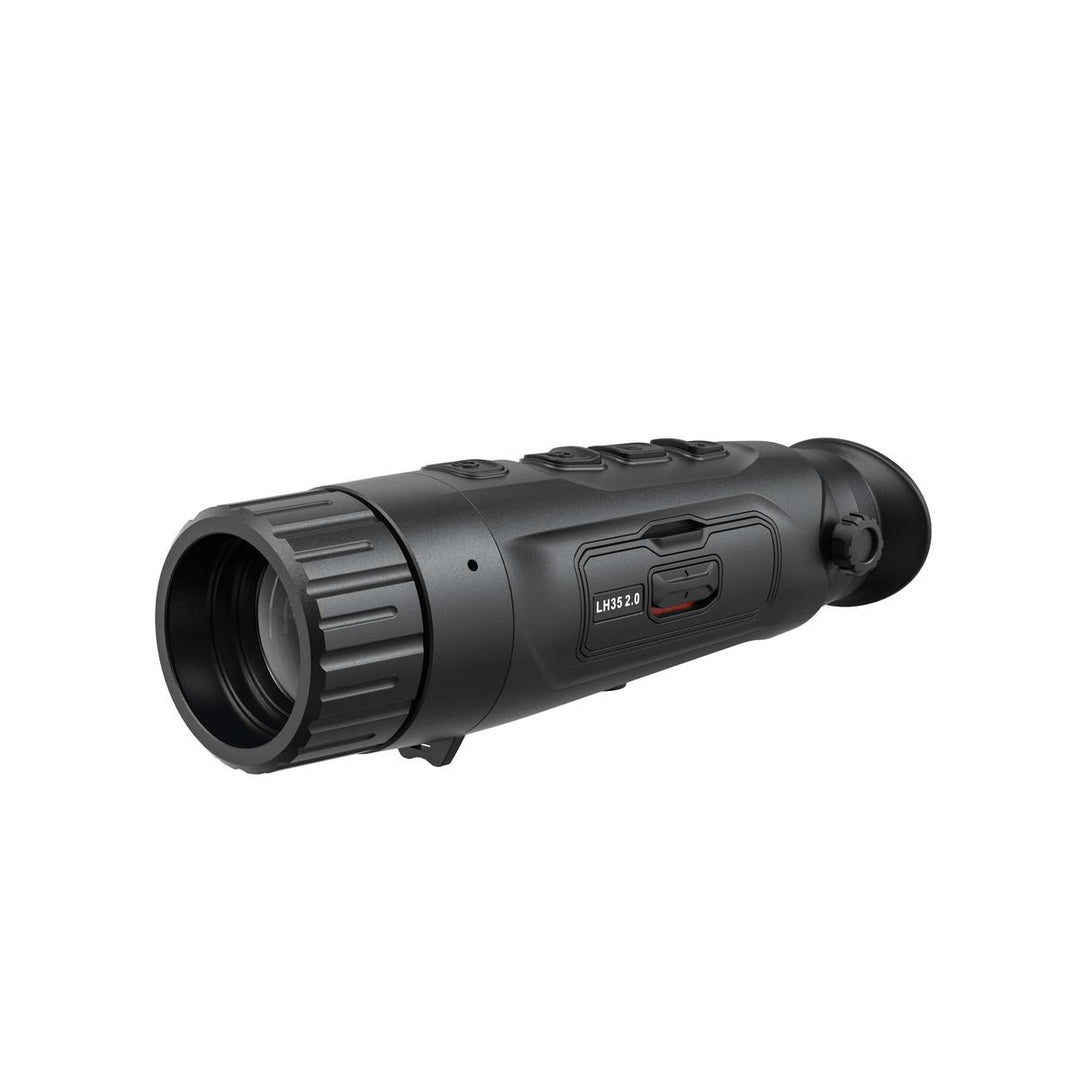

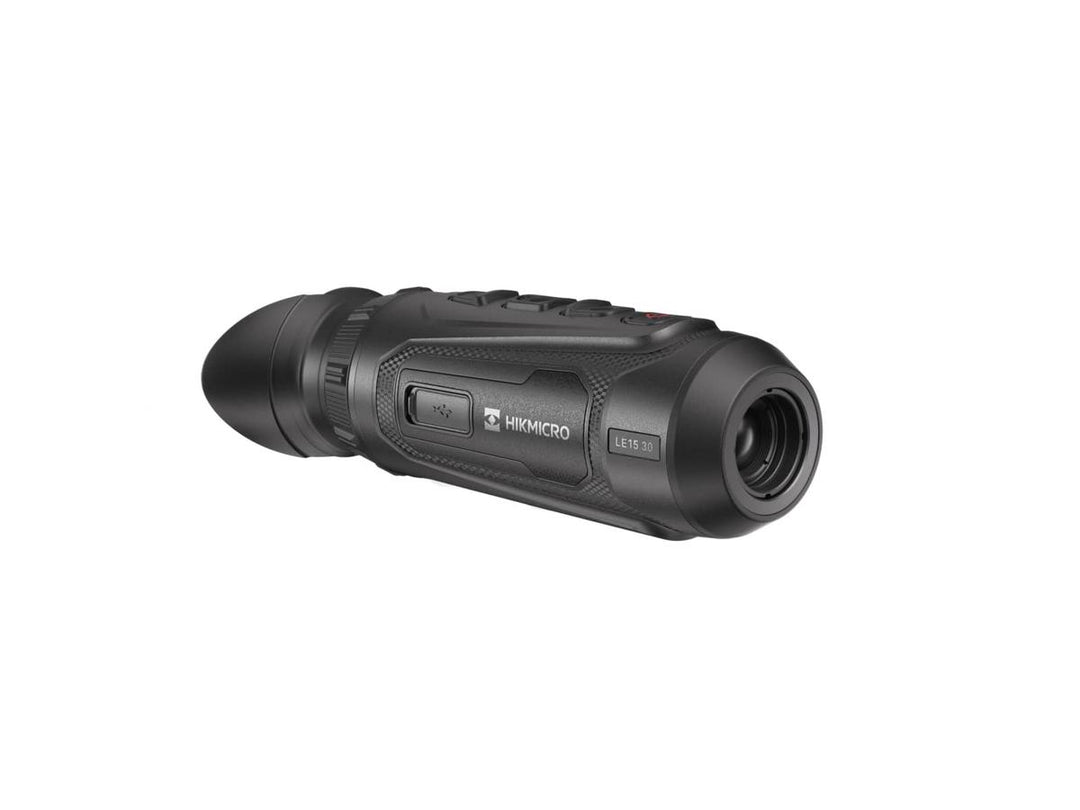

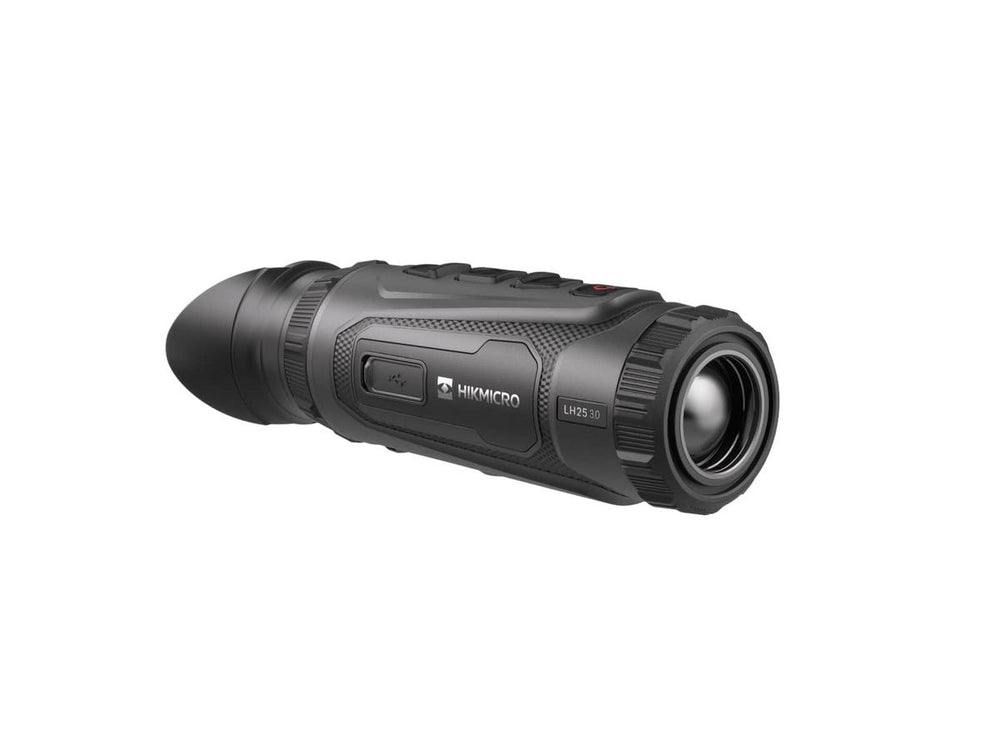

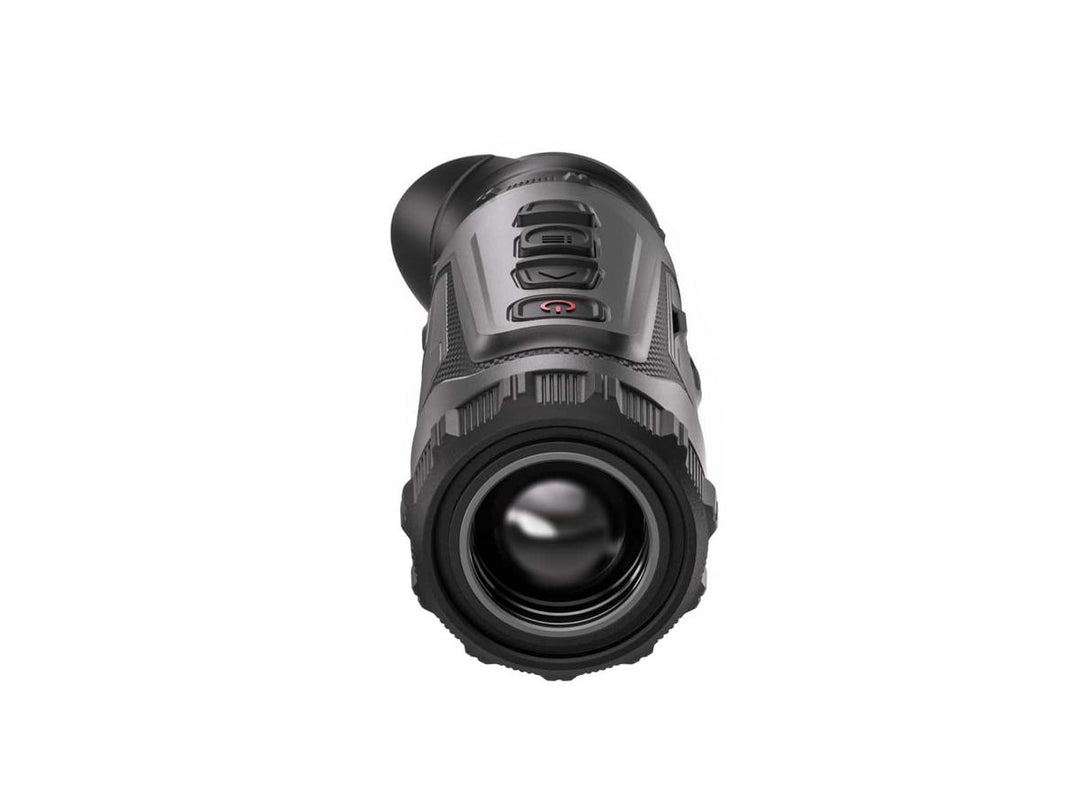

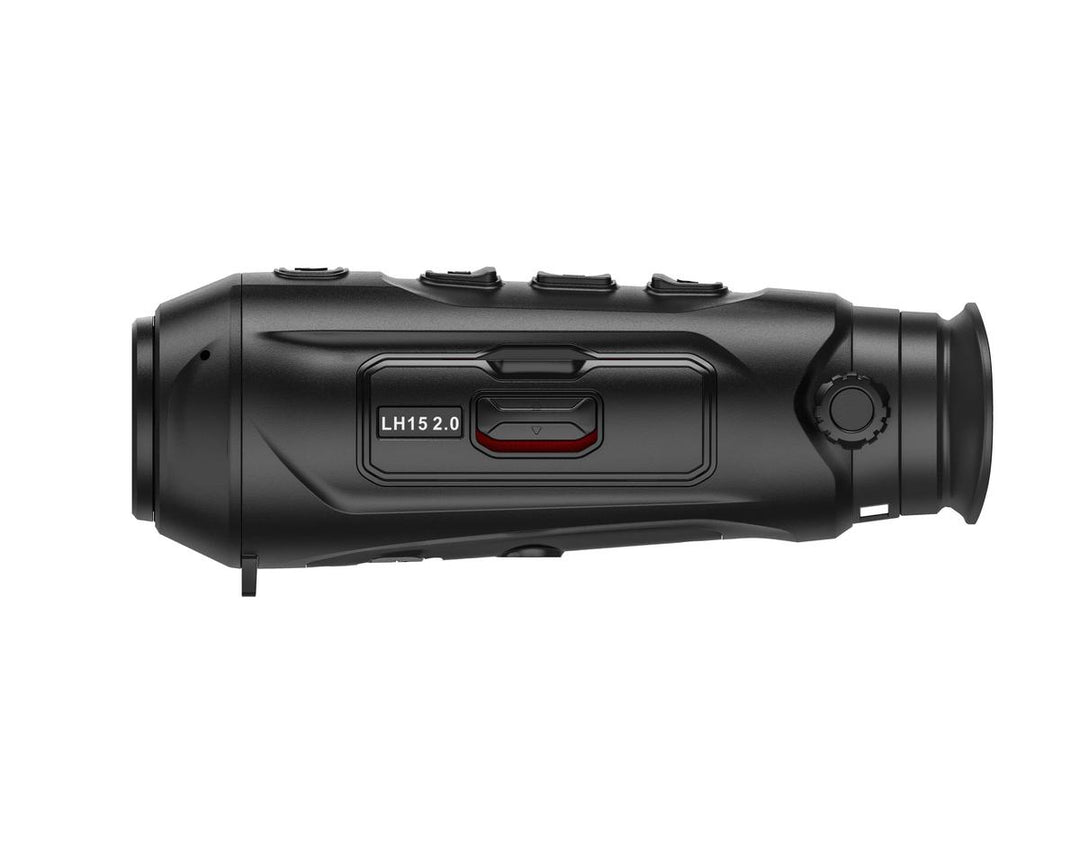

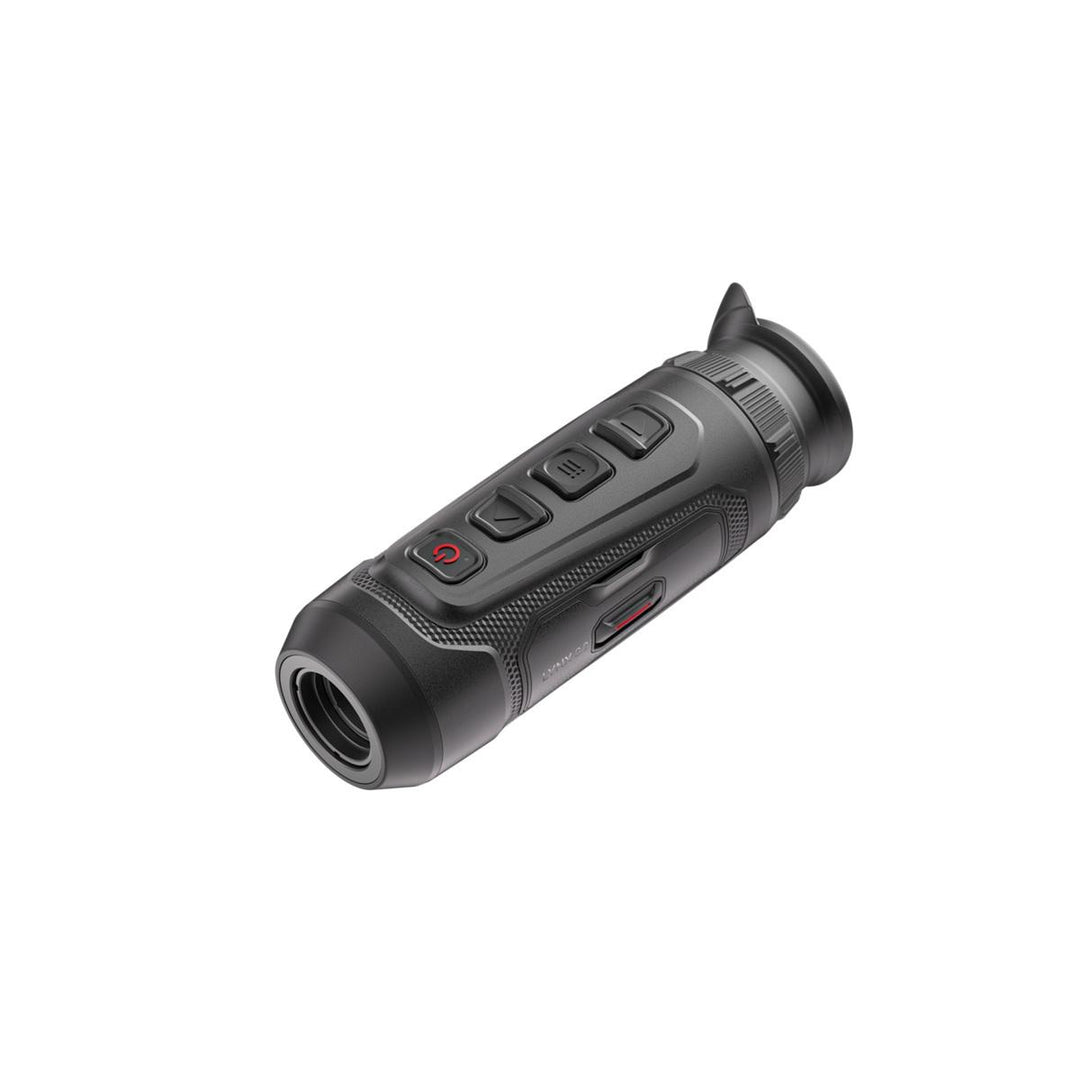

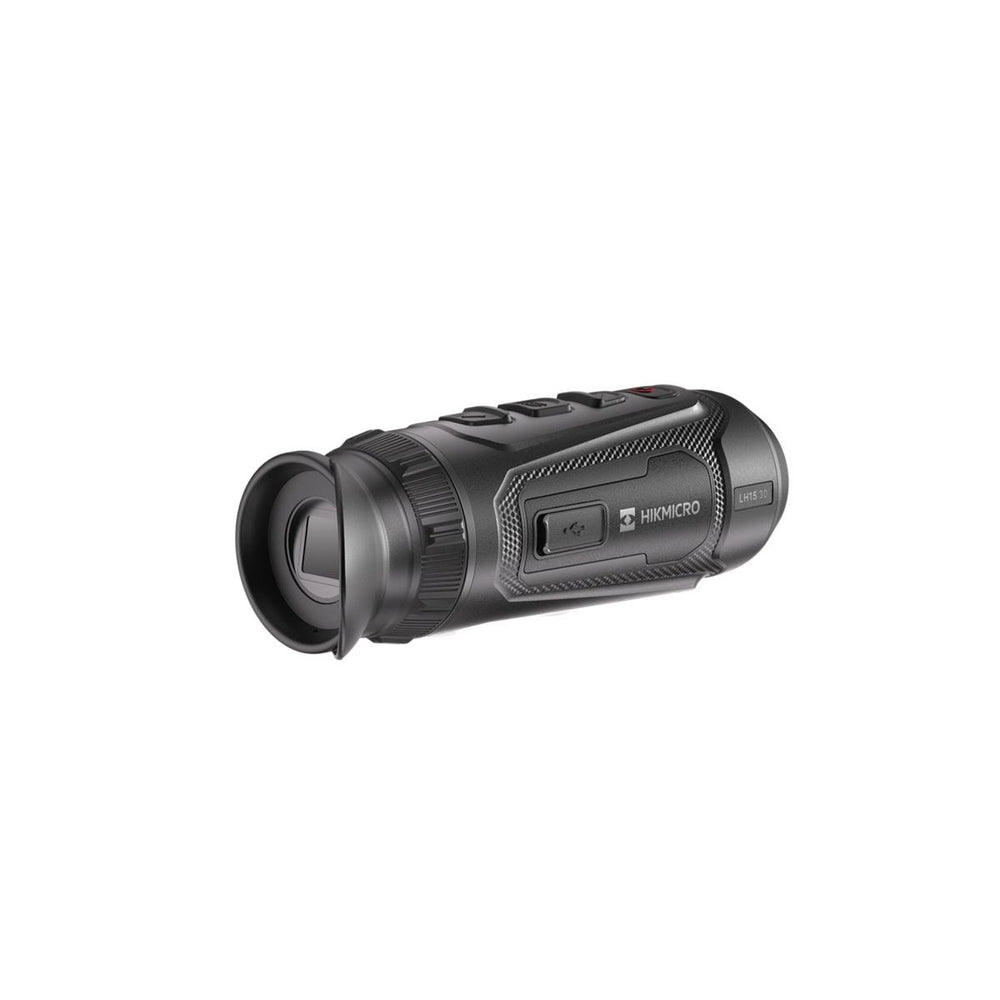

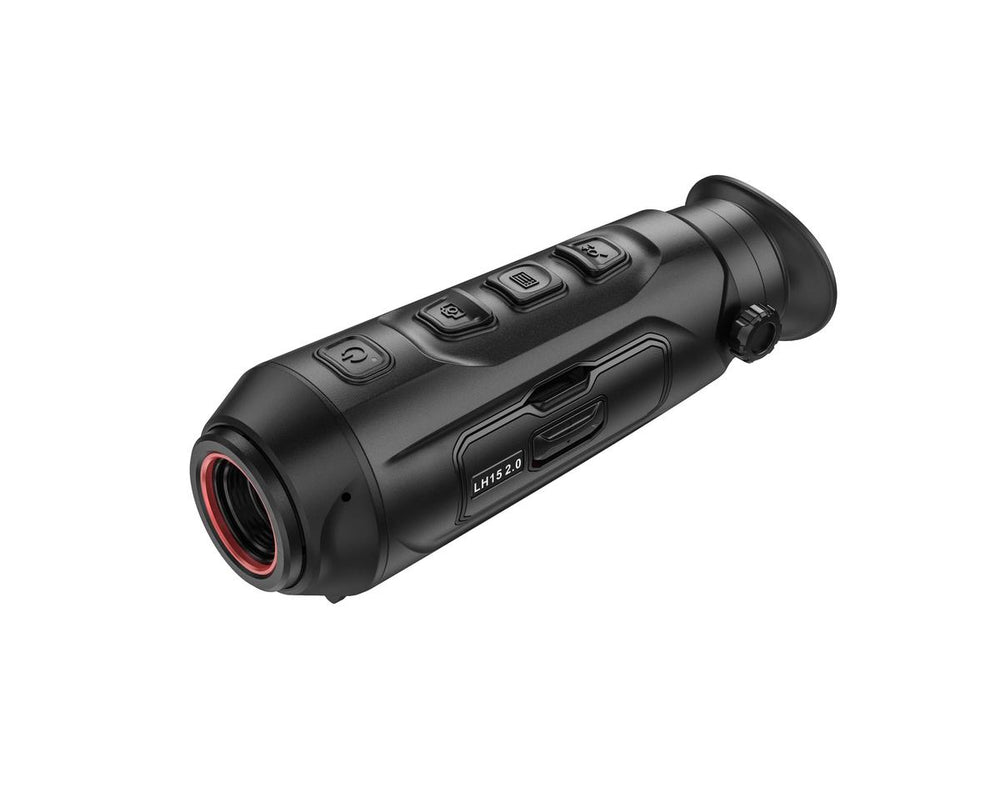

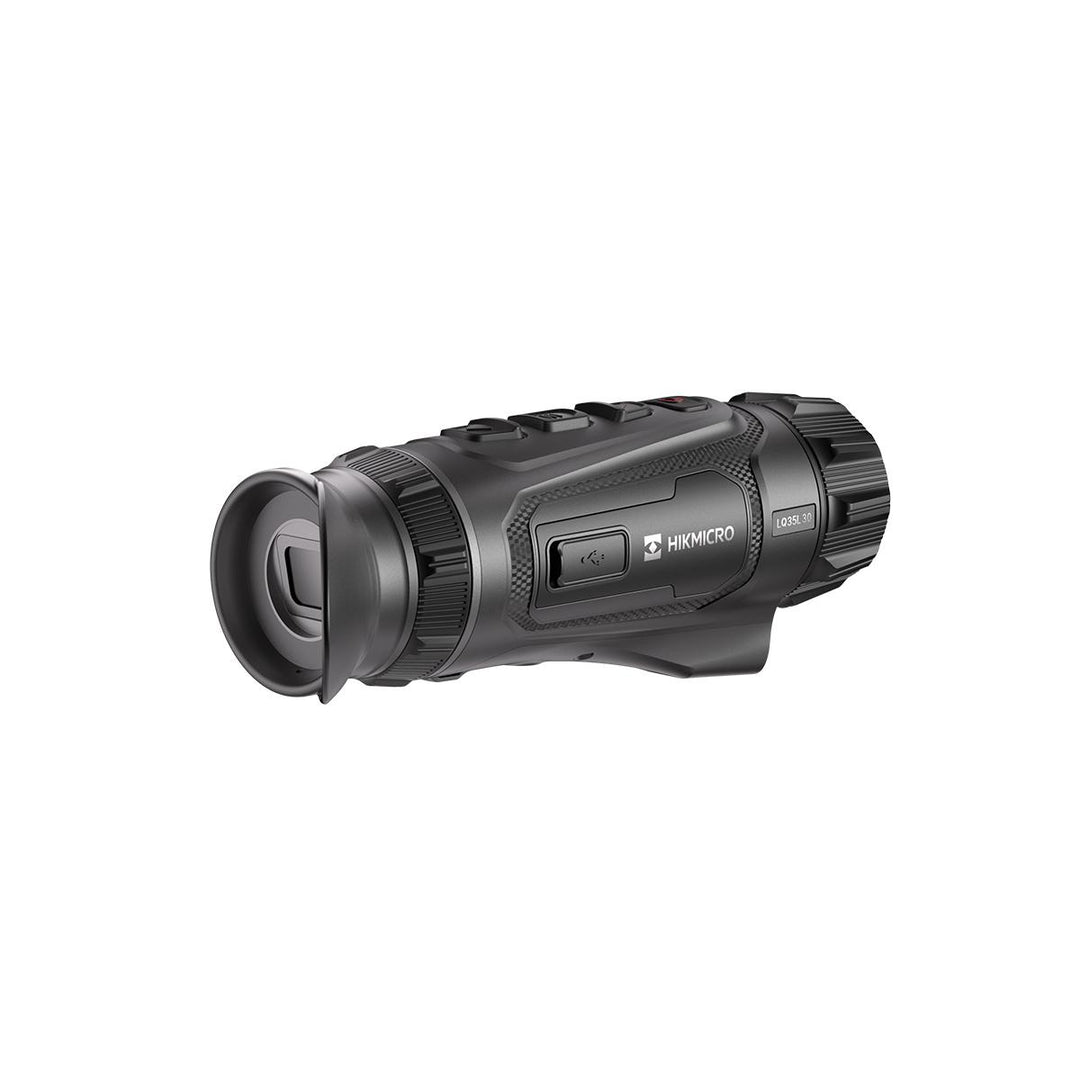

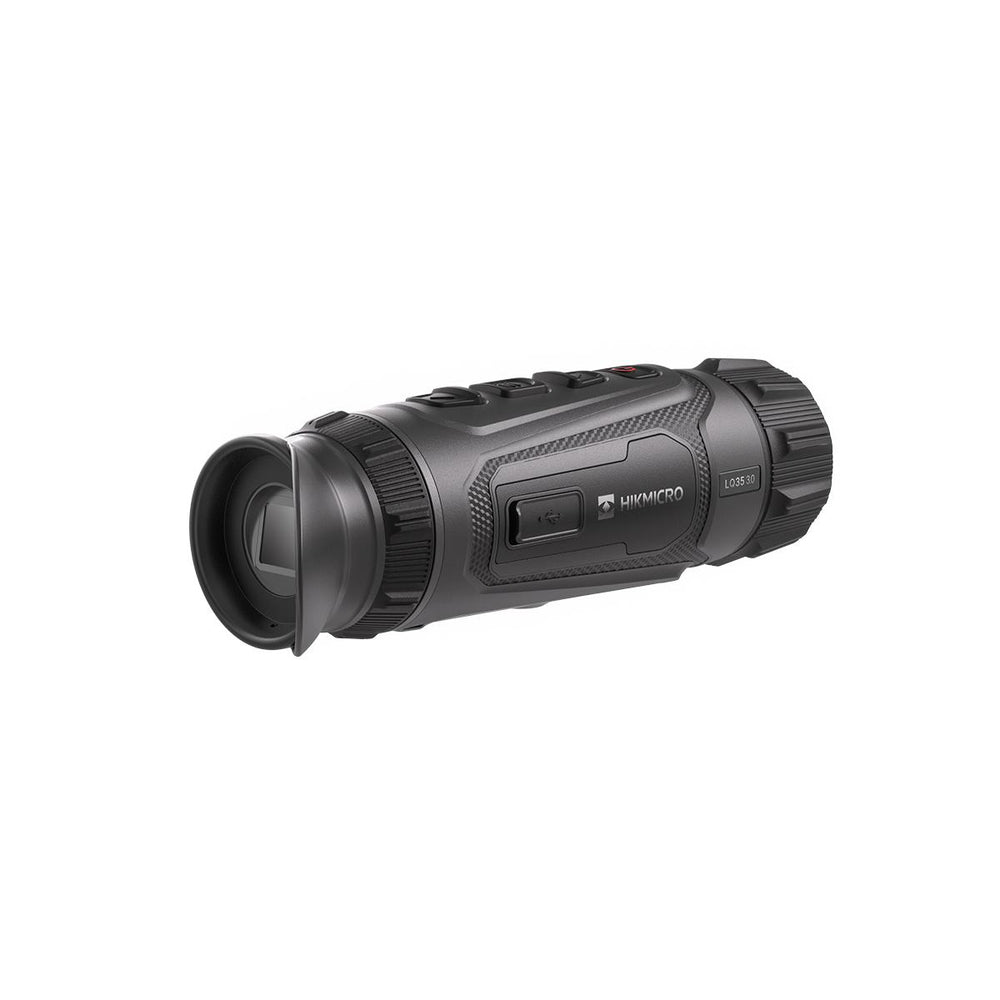

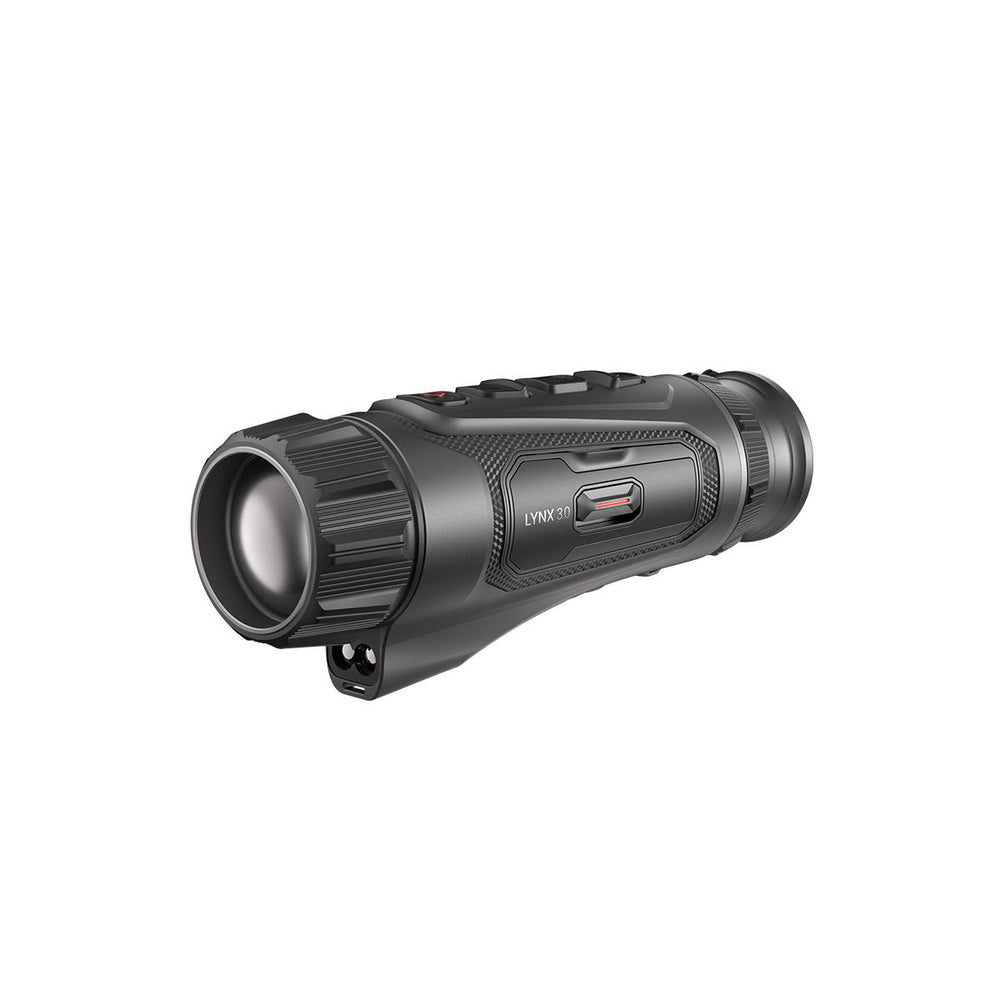

Introducing the new Lynx 2.0 15mm thermal monocular. Sharing the same design philosophy, robust build quality and high performance thermal sensors as the class leading Falcon and Condor monoculars, the Lynx 2.0 redefines expectations from entry level thermal products.

High performance thermal – At the core of the Lynx 2.0 15mm is HIKMICRO’s latest generation, 384px Sub 20 mK NETD sensor that pairs with the advanced, F1.0 lens to detect very small changes in temperature and deliver an incredibly detailed image, even in the most challenging conditions. The 15mm Focal length offers 1.4x base mag with up to 8x digital magnification giving you 1.4-11.2x magnification range.

Compact and powerful - Built on a robust magnesium-alloy chassis, the Lynx 2.0 has a distinctly premium feel from the first time you pick it up. The updated chassis design also features a removable 18650 battery delivering up to 6.5 hours of run time. The ergonomic buttons fall easily to hand and allow you to intuitively take control of the main features, even in complete darkness. The large OLED screen gives a great view of your surroundings while the soft eyecup prevents unwanted light spill.

Digital connectivity – The Lynx 2.0 is supplied with the latest HIKMICRO software which gives you fast access to commonly used options like brightness and contrast and allows you to add a PIP screen to your monocular. The Lynx 2.0 offers a choice of four thermal colour profiles, the ability to record pictures or video and WiFi to allow you to connect, stream and control from the HIKMICRO sight app.

The lower the NETD value, the better the imaging Thermal imaging works by sensing tiny differences in temperature, and the more sensitive the sensor is to minute contrasts, the better and more clear the image in the viewfinder. Lynx 2.0’s sub 20mK NETD sensors capture the sharpest, most informative images, even in challenging conditions; this means that you can not just find the heat of people, animals and birds, but capture the detail of the surroundings to aid identification.

Convenience is king The Lynx 2.0 has been redesigned to maximise convenience in every area. The size and weight, at under 175mm in length and under 300g with battery, combine with the rugged build and comfortable rounded shape to produce a powerful device that can easily be carried and used at all times. The new power system uses industry-standard rechargeable 18650 batteries for a continuous run-time of up to 6.5 hours, which can be renewed by a quick switch of the battery to a (supplied) spare. Lynx 2.0 also features a 3 second Fast Boot time, to easily keep pace with the action in the field.

Integrated phone or tablet hotspot HIKMICRO’s Sight App links Lynx 2.0 to your phone or tablet, creating a second display and adding functionality: You can control the device via the app, view and share recorded images and video, share the thermal view with others in your group, and control and update the software settings.

The Lynx 2.0 is the perfect, versatile companion device for hunting, ecological survey, wildlife observation, search & rescue and security applications. The affordable price, high performance and robust, proven build make it a natural choice and it seems well set to take over the best-seller crown from its much-loved predecessor.

• Image Pro:- YES
• Zoom Pro:- YES
• Record Video:- YES
• Capture pictures:- YES
• Audio recording:- YES
• Standby mode:- YES
• Picture in Picture:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

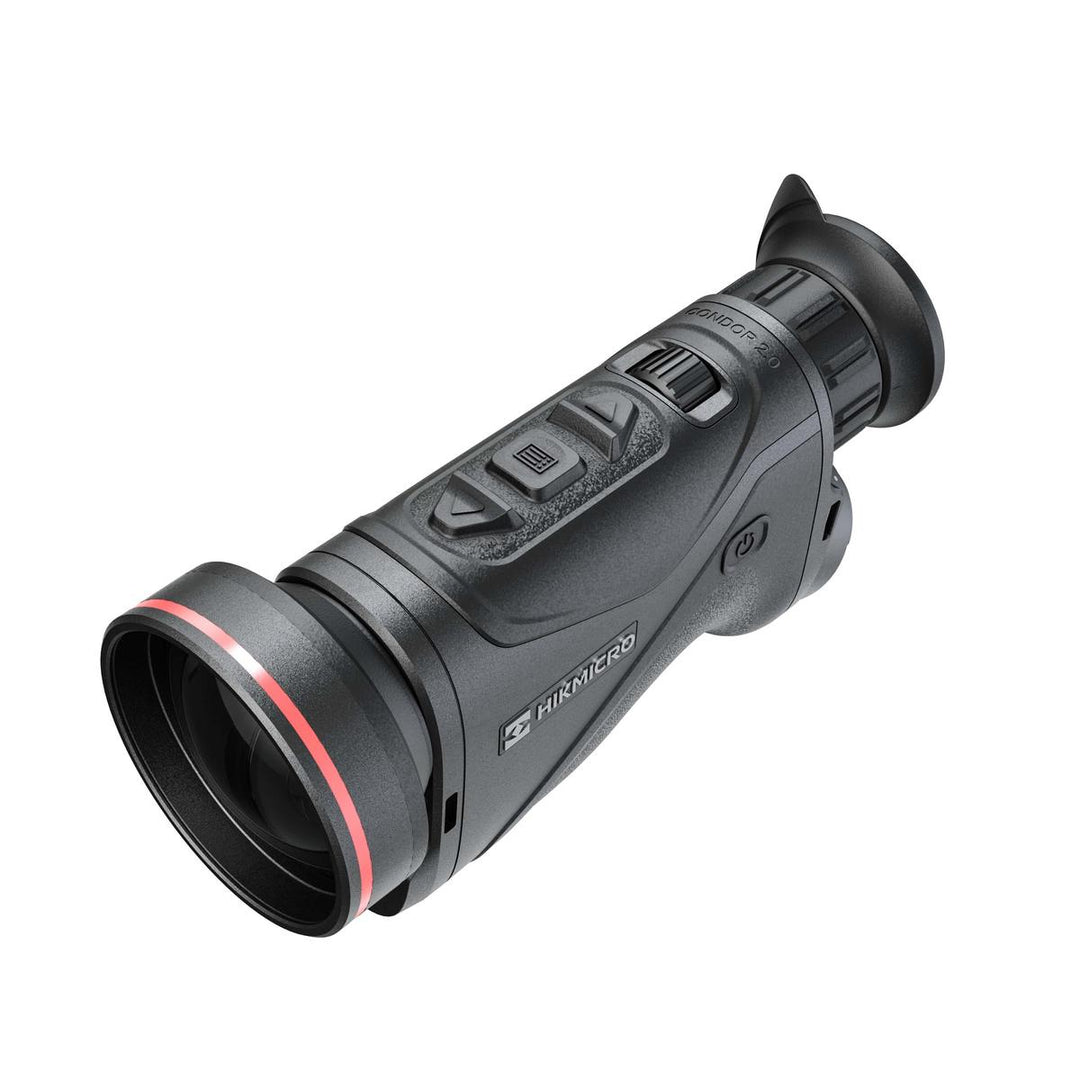

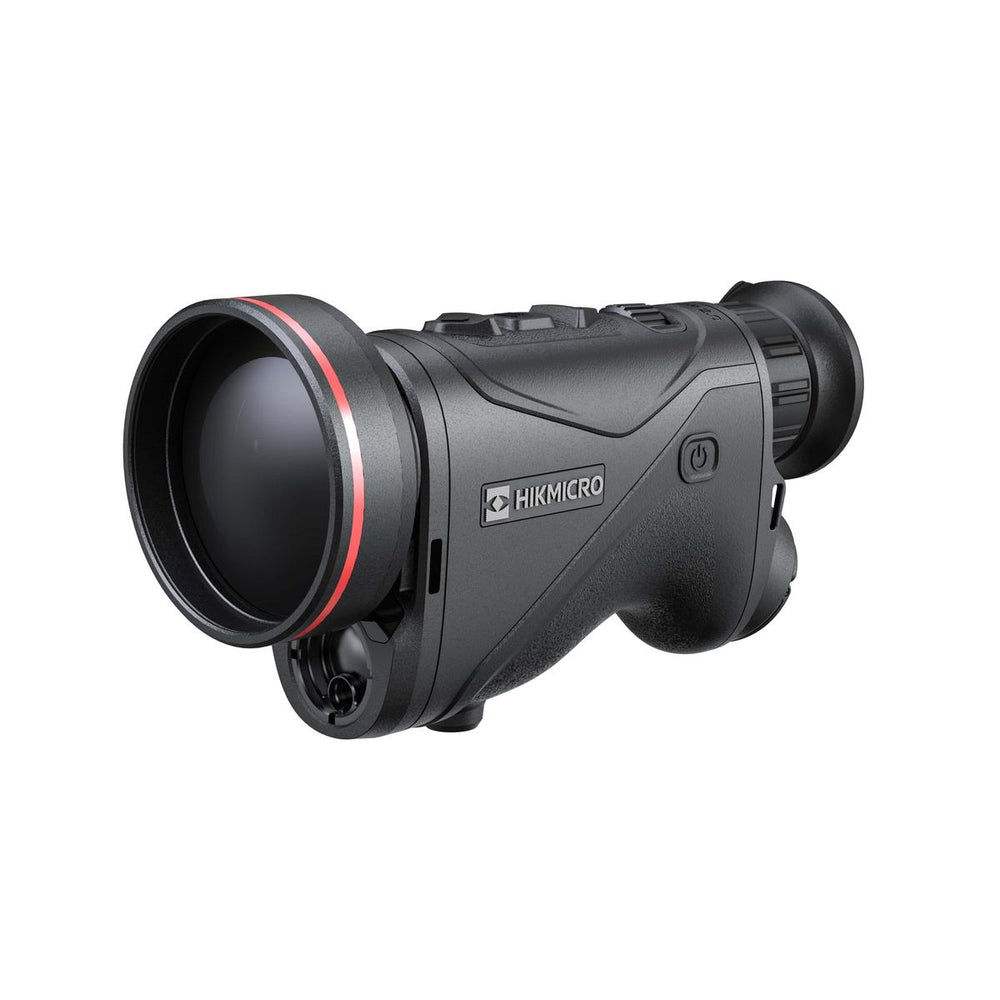

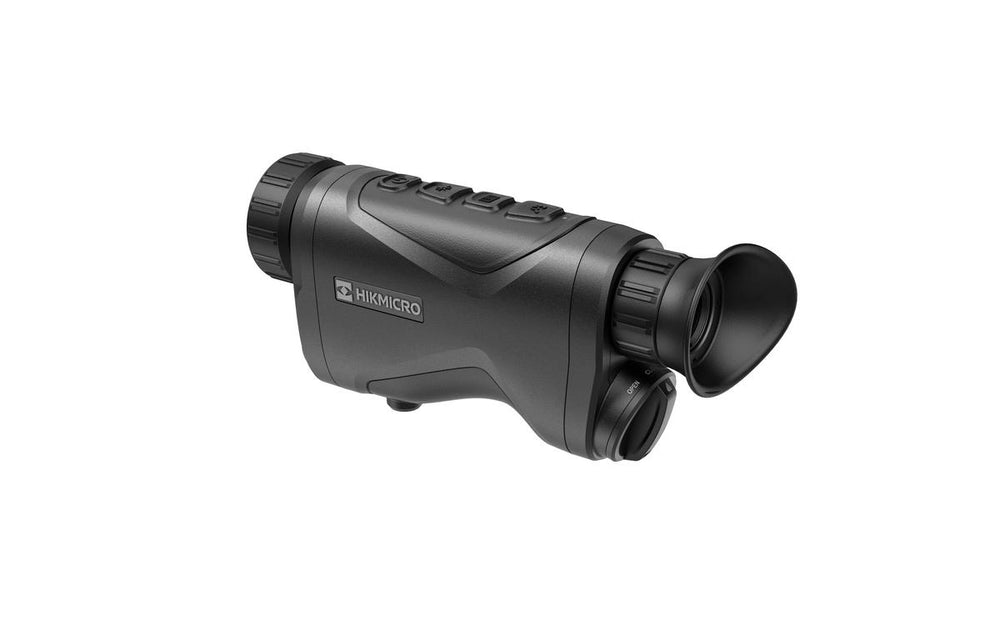

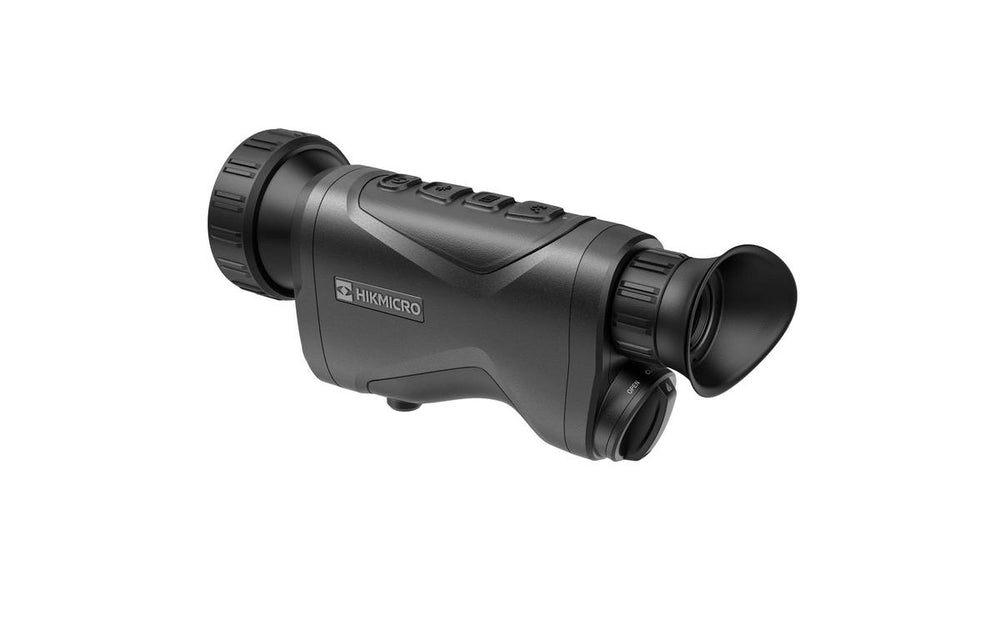

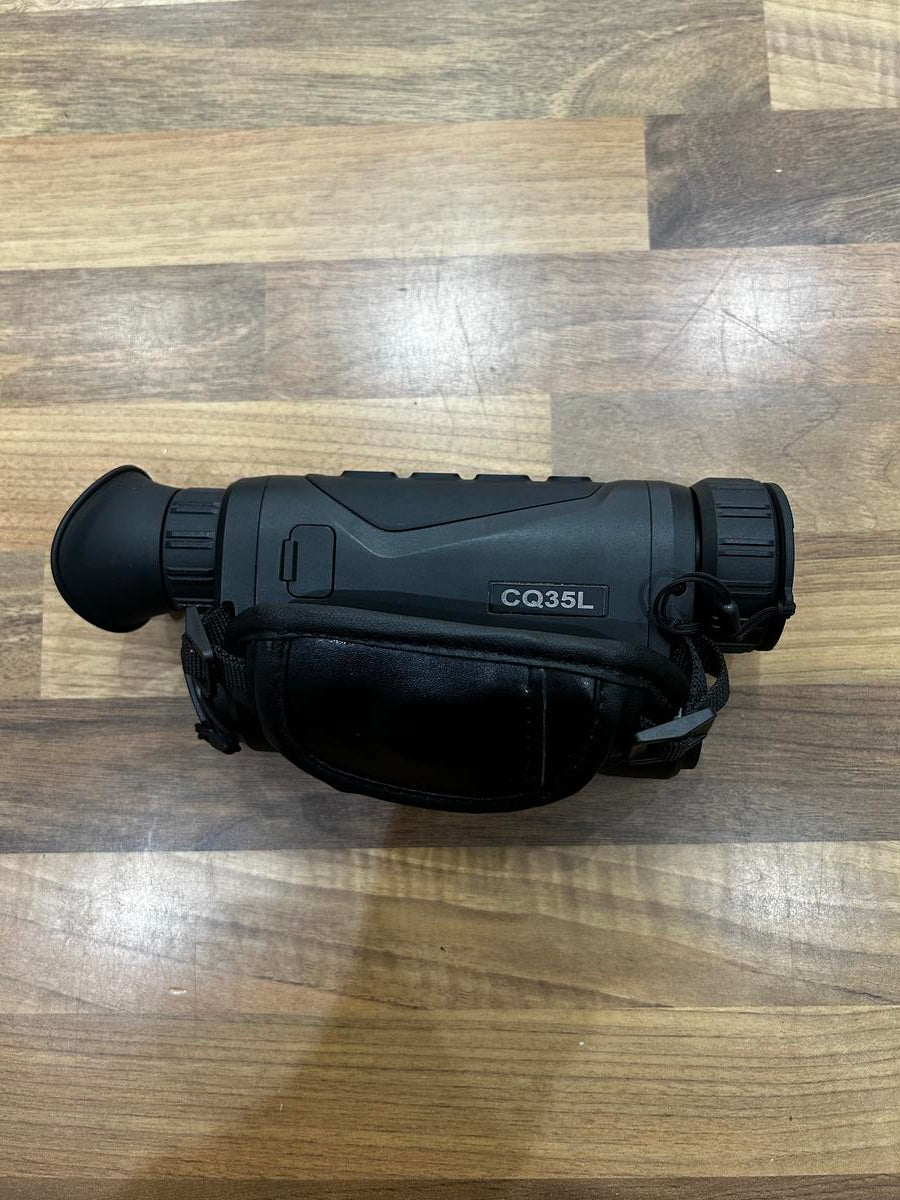

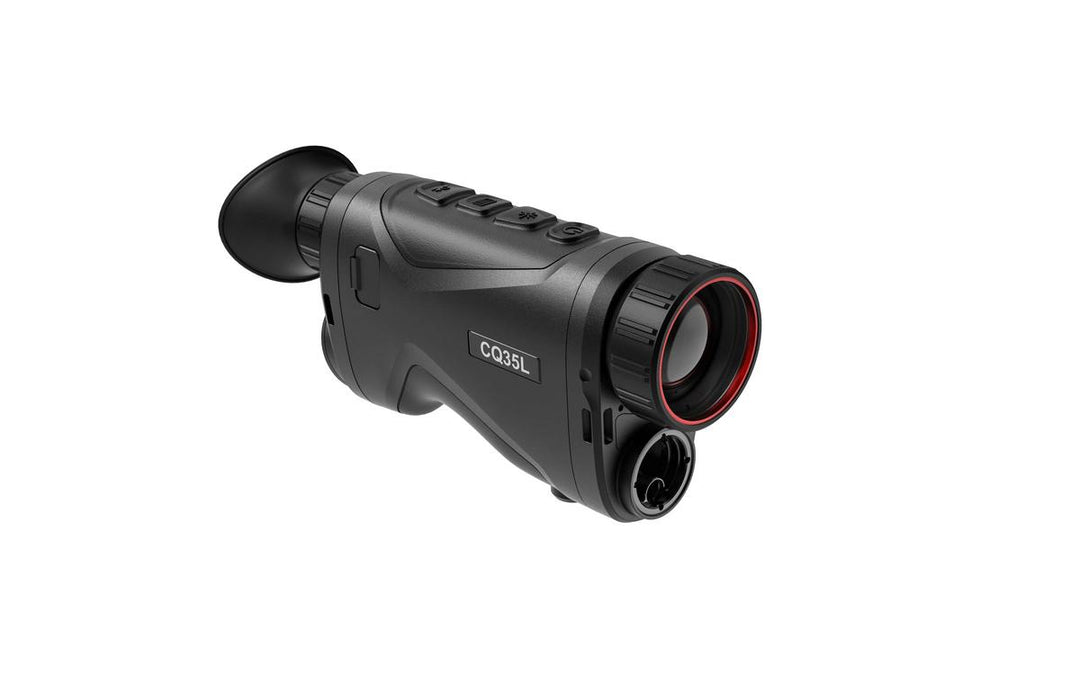

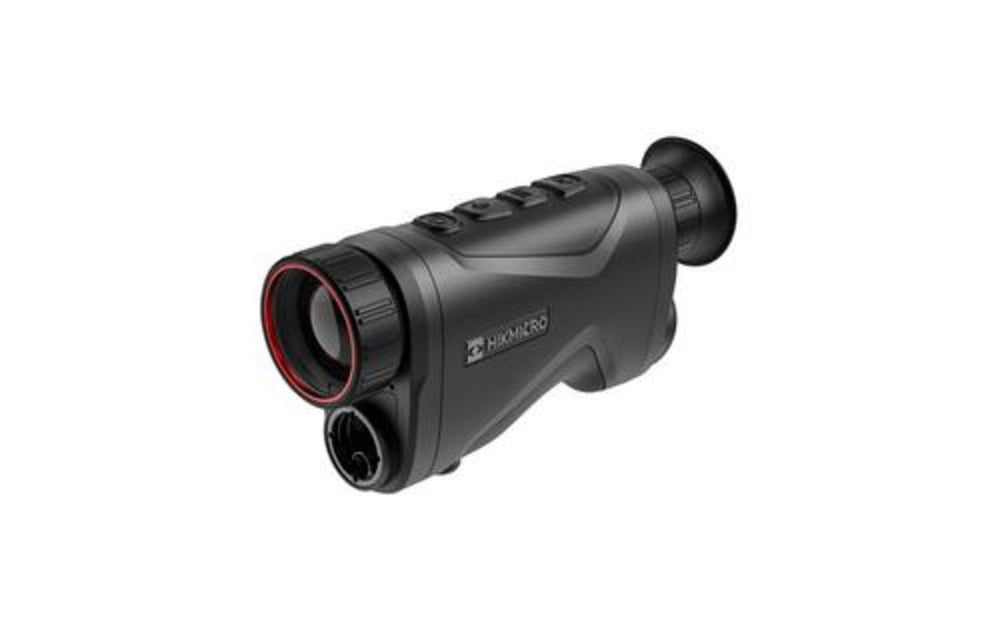

Condor Pro LRF 35mm 640px (CQ35L)
The new HIKMICRO Condor LRF Pro thermal monocular is built around the same high performance, SUB 20mk NETD 640x512px thermal sensor that is found in the acclaimed Falcon series but with the addition of a 1000m Laser Range Finder to make it easier to judge the distance to your target, even in complete darkness.
The combination of HIKMICRO’s highly sensitive 640x512px 12um SUB 20 NETD sensor and a high performance F1.0 lens ensures perfect detail recognition. The 35mm focal length offers 2x base magnification with a wider field of view to assist with quick scanning and observation. Capable of detecting the smallest details like animal hair, subtle physical characteristics and information like branches and leaves. The Condor delivers a detailed picture of your surroundings and heat sources, even in the most challenging weather conditions.
Utilising an all-new magnesium alloy chassis with ergonomic grip and profiled buttons, the Condor is comfortable and intuitive to use from the first time you pick it up. It is compact in size and can be comfortably be used in one hand and slips easily into a pocket. Powered by a single 18650 battery which delivers 4 hours of run time, the three batteries supplied in the box allow up to 12 hours of continuous use.
The Condor is controlled by the latest HIKMICRO software which includes advanced algorithm options including Image Pro and Zoom Pro which can be used to optimise the sharpness of the image. The Condor also boasts all of the software features found in other HIK products including a choice of 4 colour pallets and access to the HIKMICRO Sight app which allows you to stream, control and record from your thermal monocular. The built in memory also allows you to save images and videos directly onto the monocular.
MAIN

• Sensor:- 640 x 512 @ 12µm
• Objective Lens (Focal Length):- 35mm
• Detection Range (Human 1.8 x 0.5m):- 1800m

SENSOR

• Type:- "VOx Uncooled Focal Plane Arrays "
• Resolution, pixels:- 640 x 512px
• Pixel pitch, µm :- 12µm
• Frame rate, Hz:- 50 Hz
• NETD:- <20mK

THERMAL OPTICS

• Objective lens:- F1.0
• Magnification:- 2x - 16x
• Magnification (Digital):- 1x, 2x, 4x, 8x
• Field of view:- 12.5°× 10.0°

LASER RANGEFINDER

• LRF Fitted:- Yes
• Maximum range:- 1000m
• Measurement accuracy:- ± 1m

DISPLAY

• Type:- 9.9mm, OLED
• Resolution, Pixels:- 1024 ×768
• Colour Palettes:- White Hot, Black Hot, Red Hot, Fusion

Additional features

• Image Pro:- YES
• Zoom Pro:- YES
• Record Video:- YES
• Capture pictures:- YES
• Audio recording:- YES
• Standby mode:- YES
• Picture in Picture:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

Environmental

• Degree of protection, IP code:- IP67
• Dust protection:- Protected against dust ingress
• Water protection:- Protected against temporary submersion in water
• Operating temperature range:- -30 °C to 55 °C

WEIGHT & SIZE

• Dimensions, mm:- 184mm x 53mm x 87mm
• Weight, kg:- 0.4 kg

POWER SUPPLY

• "Operating time on battery (WiFi & Hot tracking disabled)":- 4 Hours
• Charging interface:- Removable 18650 battery

Warranty Period 3 Years

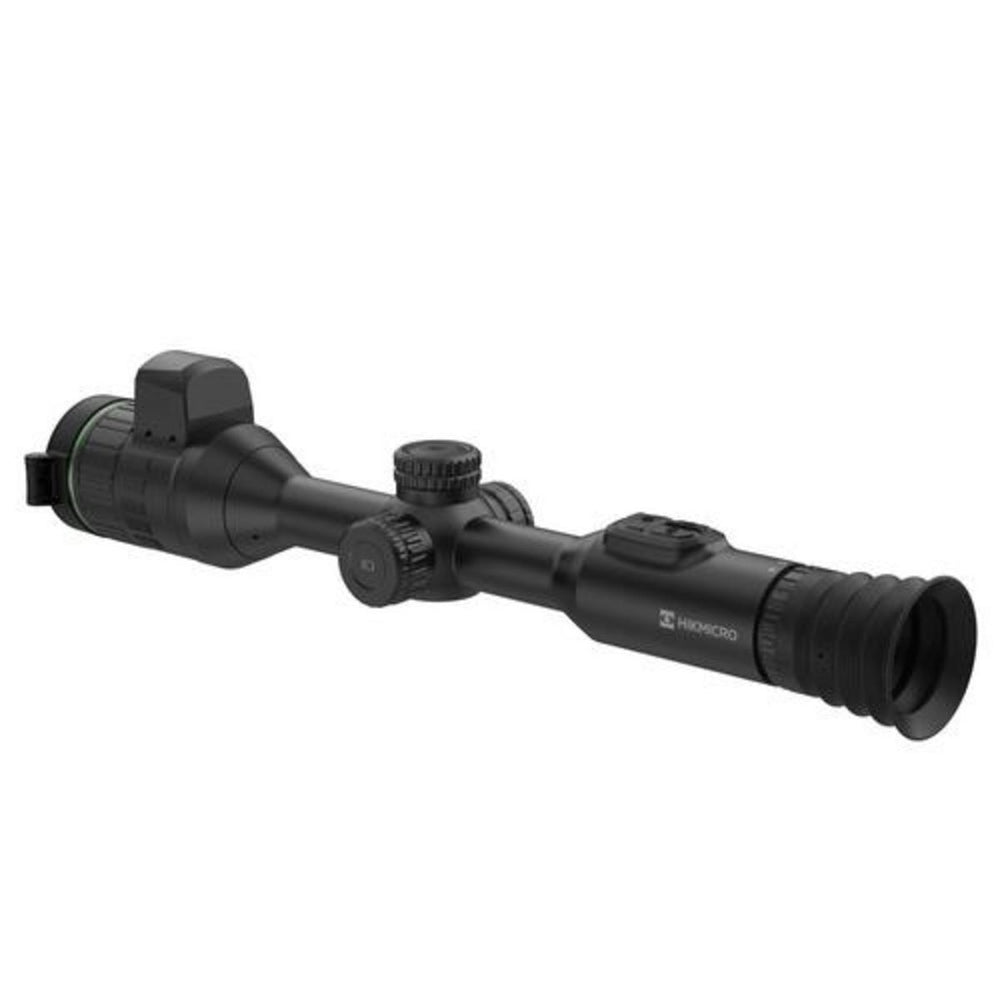

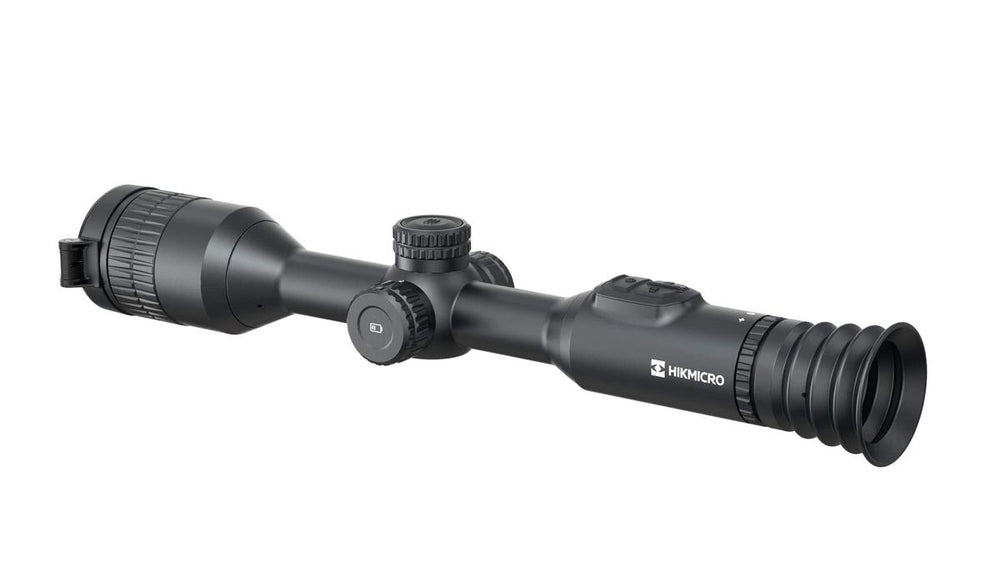

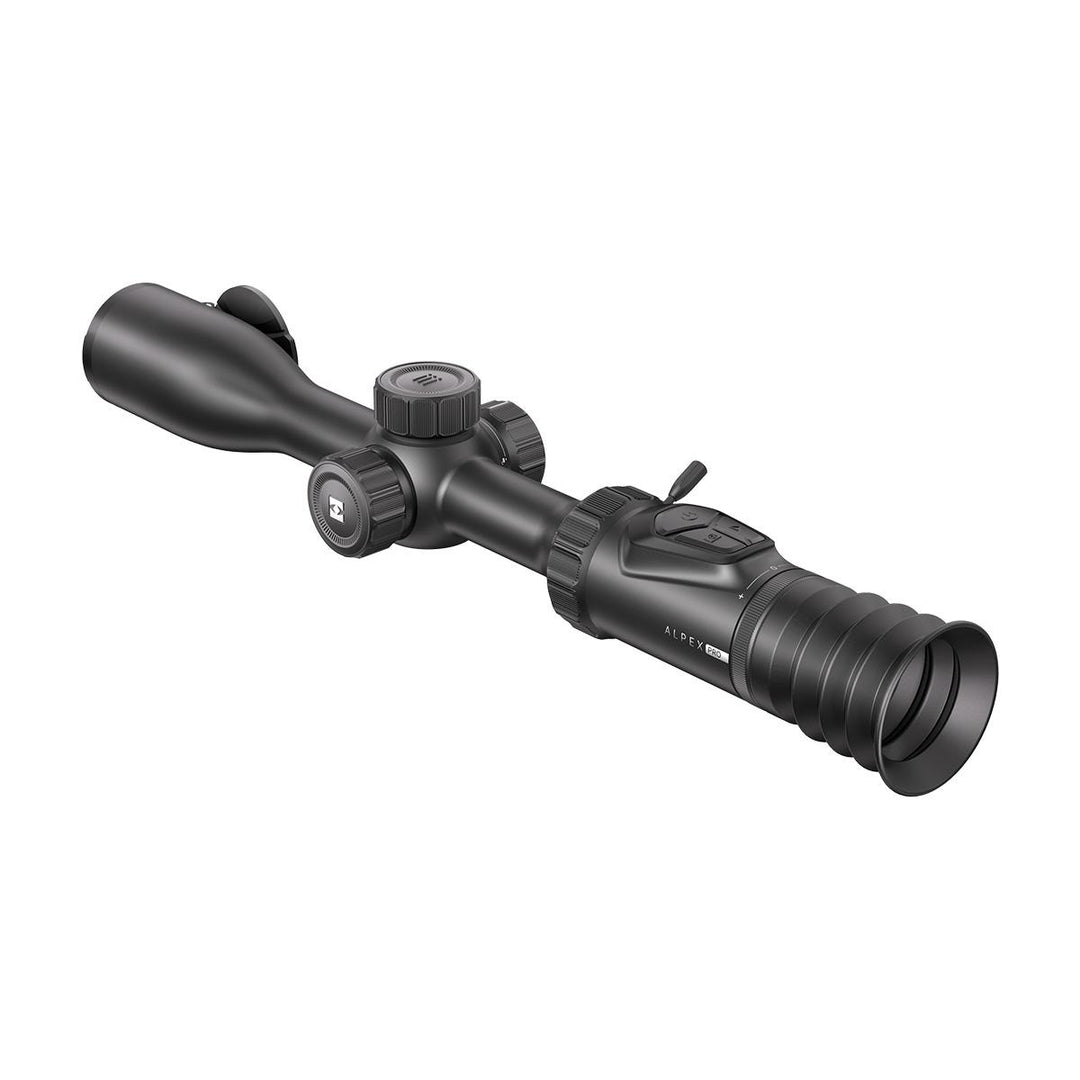

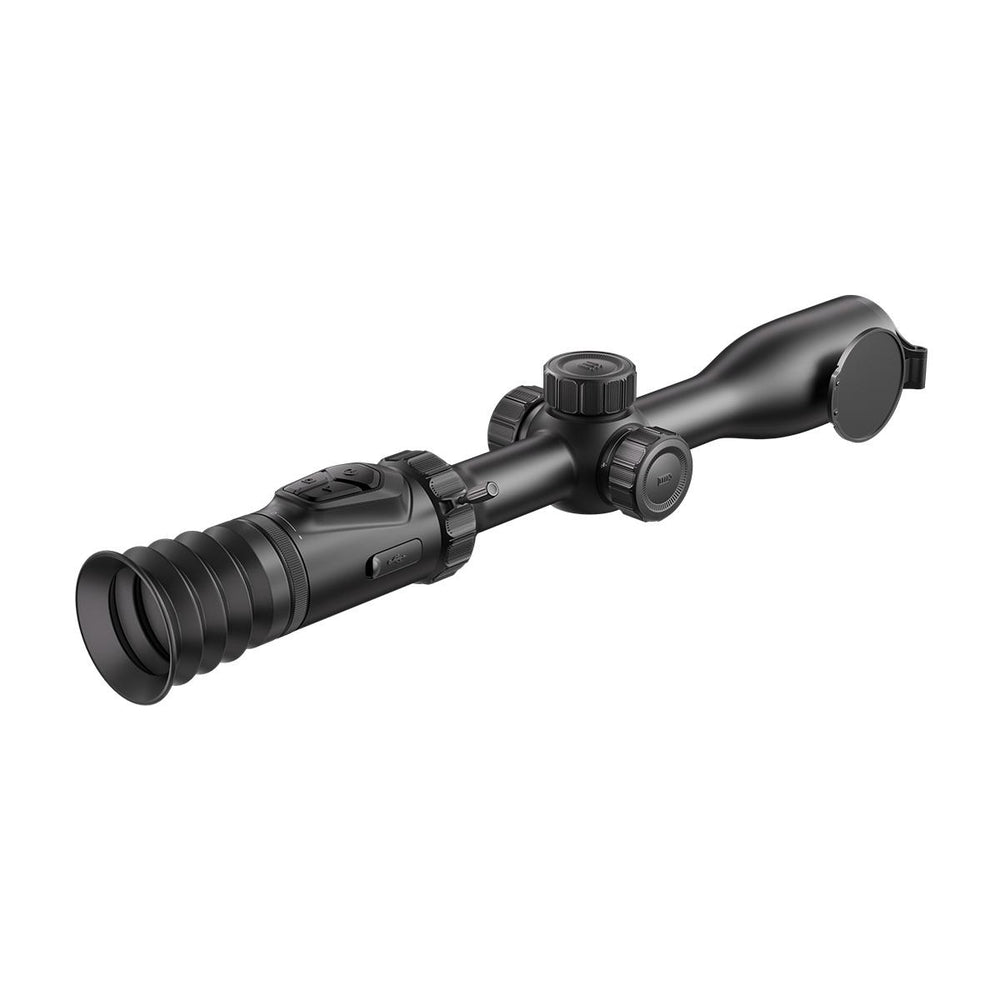

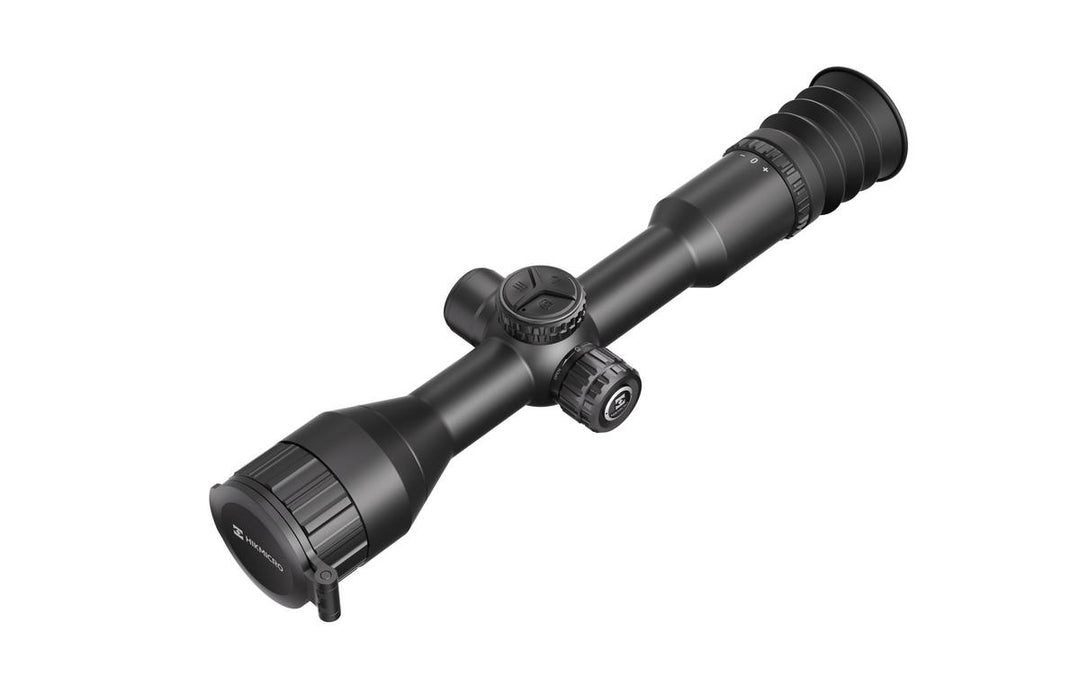

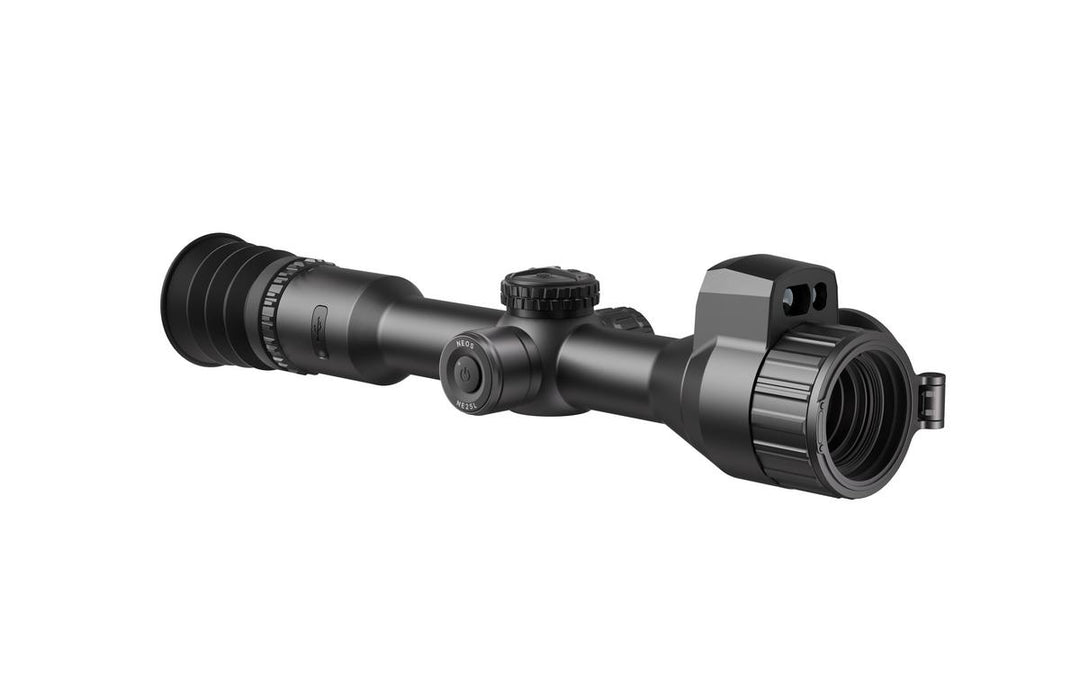

Alpex Day & Night scope (A50T)
The ground-breaking Alpex day and night riflescope is BORN FOR LOW LIGHT HUNTING.
The advanced sensor technology and image processing delivers a detailed, full colour image through the day - automatically adjusting to twilight and continuing to display an amazing full colour image up until total darkness.
When darkness sets in, a single button press activates the black and white night mode and the performance of the sensor shines again. Any ambient light such as the moon or starlight is enough to provide a basic image while adding the supplied IR torch allows you to see a highly detailed view of your surroundings.
Built on a traditional 30mm riflescope tube chassis the Alpex is easy to mount using conventional riflescope rings and retains the classic look of your rifle. The riflescope tube also hosts the two internal lithium batteries that provide an outstanding 13 hours of runtime. The top turret that traditionally contains the windage adjustment holds a battery compartment where you can add an additional CR123a to gain an extra hour of runtime in an emergency.
Rolling the jog dial up and down controls your digital magnification (3.5x – 14x). Press and hold this in to access the menu which includes a simplified zeroing system with the inclusion of freeze-frame and magnification. Advanced software provides up to 5 zeroing profiles allowing you to use the Alpex on multiple Rifles.
The three buttons on the eye piece control the power, recording and quickly switch between Day & Night mode while the precise focus adjustment is located around the objective bell at the front of the scope.
The Alpex is also fitted with a microphone and recoil activated recording so it is easier to record your special hunting moment onto the built in 64gb internal memory. Connecting to the HIKMICRO Sight app makes it quick and easy to share these memories with your friends or stream the output from the scope in real time while you are in the field with your hunting buddy.
Main Specs

• Sensor resolution:- 1920x 1080px
• Frame rate, Hz:- 50 Hz
• Focal Length:- 50mm
• Minimum Focus Distance:- 3m
• Field of view:- 7.7° × 5.8°
• Aperture:- F1.2
• Magnification:- 3.5x
• Full colour day mode:- Yes
• High performance twilight mode:- Yes
• Black & White night mode:- Yes

Display

• Type:- 9.9mm OLED
• Resolution:- 1024 x 768px
• Exit Pupil:- 5 mm
• Eye Relief:- 60mm

System Features

• Magnification (Digital):- 1x, 2x, 4x
• Image / Video resolution:- 1440 x 1080
• One-Shot Zero:- Yes
• Standby mode:- Yes
• Picture-in-Picture:- Yes
• Recoil-Activated recording:- Yes
• Max Recoil:- 1000g
• Reticle Options:- 5+
• Zero Profiles:- 5
• Audio Recording:- Yes
• Wi-Fi Connection:- Yes
• HIKMICRO Sight App:- Compatible
• Storage:- Built in 64 GB

Power Supply

• Internal Battery:- 2x Lithium batteries
• External Battery:- 1x Replacable CR123A
• Battery run time:- 12 Hrs (Continuous running)
• Battery Capacity display:- Yes
• Recharging method:- USB-C

General

• Working temperature:- -30°C to 55°C
• Dimensions:- 442 x 78mm
• Weight:- 1062g (Without eyepiece)
• Degree of protection, IP code:- IP67
• Water protection:- Protected against temporary submersion in water

• Image Pro:- YES
• Zoom Pro:- YES
• Record Video:- YES
• Capture pictures:- YES
• Audio recording:- YES
• Standby mode:- YES
• Picture in Picture:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

Condor Pro LRF 35mm 640px (CQ35L)
The new HIKMICRO Condor LRF Pro thermal monocular is built around the same high performance, SUB 20mk NETD 640x512px thermal sensor that is found in the acclaimed Falcon series but with the addition of a 1000m Laser Range Finder to make it easier to judge the distance to your target, even in complete darkness.
The combination of HIKMICRO’s highly sensitive 640x512px 12um SUB 20 NETD sensor and a high performance F1.0 lens ensures perfect detail recognition. The 35mm focal length offers 2x base magnification with a wider field of view to assist with quick scanning and observation. Capable of detecting the smallest details like animal hair, subtle physical characteristics and information like branches and leaves. The Condor delivers a detailed picture of your surroundings and heat sources, even in the most challenging weather conditions.
Utilising an all-new magnesium alloy chassis with ergonomic grip and profiled buttons, the Condor is comfortable and intuitive to use from the first time you pick it up. It is compact in size and can be comfortably be used in one hand and slips easily into a pocket. Powered by a single 18650 battery which delivers 4 hours of run time, the three batteries supplied in the box allow up to 12 hours of continuous use.
The Condor is controlled by the latest HIKMICRO software which includes advanced algorithm options including Image Pro and Zoom Pro which can be used to optimise the sharpness of the image. The Condor also boasts all of the software features found in other HIK products including a choice of 4 colour pallets and access to the HIKMICRO Sight app which allows you to stream, control and record from your thermal monocular. The built in memory also allows you to save images and videos directly onto the monocular.
MAIN

• Sensor:- 640 x 512 @ 12µm
• Objective Lens (Focal Length):- 35mm
• Detection Range (Human 1.8 x 0.5m):- 1800m

SENSOR

• Type:- "VOx Uncooled Focal Plane Arrays "
• Resolution, pixels:- 640 x 512px
• Pixel pitch, µm :- 12µm
• Frame rate, Hz:- 50 Hz
• NETD:- <20mK

THERMAL OPTICS

• Objective lens:- F1.0
• Magnification:- 2x - 16x
• Magnification (Digital):- 1x, 2x, 4x, 8x
• Field of view:- 12.5°× 10.0°

LASER RANGEFINDER

• LRF Fitted:- Yes
• Maximum range:- 1000m
• Measurement accuracy:- ± 1m

DISPLAY

• Type:- 9.9mm, OLED
• Resolution, Pixels:- 1024 ×768
• Colour Palettes:- White Hot, Black Hot, Red Hot, Fusion

Additional features

• Image Pro:- YES
• Zoom Pro:- YES
• Record Video:- YES
• Capture pictures:- YES
• Audio recording:- YES
• Standby mode:- YES
• Picture in Picture:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

Environmental

• Degree of protection, IP code:- IP67
• Dust protection:- Protected against dust ingress
• Water protection:- Protected against temporary submersion in water
• Operating temperature range:- -30 °C to 55 °C

WEIGHT & SIZE

• Dimensions, mm:- 184mm x 53mm x 87mm
• Weight, kg:- 0.4 kg

POWER SUPPLY

• "Operating time on battery (WiFi & Hot tracking disabled)":- 4 Hours
• Charging interface:- Removable 18650 battery

Warranty Period 3 Years

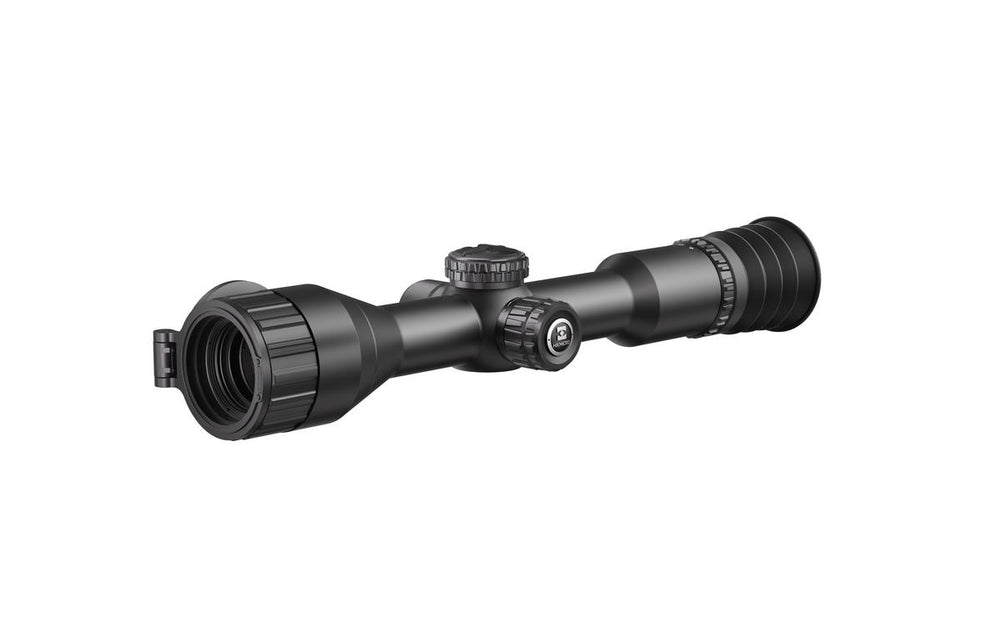

ALPEX S Day & Night Scope
Same great performance – stripped- back on price!
The award winning ALPEX is now available as a standalone, scope only package for the user who wants to add their own aftermarket IR torch. The ALPEX scope remains the same, we have just taken away the IR torch and associated accessories to deliver you even better value for money.
The ground-breaking Alpex day and night riflescope is BORN FOR LOW LIGHT HUNTING.
The advanced sensor technology and image processing delivers a detailed, full colour image through the day - automatically adjusting to twilight and continuing to display an amazing full colour image up until total darkness.
When darkness sets in, a single button press activates the black and white night mode and the performance of the sensor shines again. Any ambient light such as the moon or starlight is enough to provide a basic image while adding the supplied IR torch allows you to see a highly detailed view of your surroundings.
Built on a traditional 30mm riflescope tube chassis the Alpex is easy to mount using conventional riflescope rings and retains the classic look of your rifle. The riflescope tube also hosts the two internal lithium batteries that provide an outstanding 13 hours of runtime. The top turret that traditionally contains the windage adjustment holds a battery compartment where you can add an additional CR123a to gain an extra hour of runtime in an emergency.
The ergonomic design puts all of the major controls of the Alpex within easy reach.
Rolling the jog dial up and down controls your digital magnification (3.5x – 14x). Press and hold this in to access the menu which includes a simplified zeroing system with the inclusion of freeze-frame and magnification. Advanced software provides up to 5 zeroing profiles allowing you to use the Alpex on multiple Rifles.
The three buttons on the eye piece control the power, recording and quickly switch between Day & Night mode while the precise focus adjustment is located around the objective bell at the front of the scope.
The Alpex is also fitted with a microphone and recoil activated recording so it is easier to record your special hunting moment onto the built in 64gb internal memory. Connecting to the HIKMICRO Sight app makes it quick and easy to share these memories with your friends or stream the output from the scope in real time while you are in the field with your hunting buddy.
IN THE BOX? HIKMICRO ALPEX A50T-S Day & Night Riflescope
FEATURES

• 1920 × 1080 High-definition sensor
• Supports Day/Night mode
• Supports audio recording
• Supports recoil-activation recording
• Supports video recording and snapshot, built-in EMMC (64 GB)
• 1024 × 768 resolution 0.39-inch LED display
• Detection range up to 600 m

SPECS
Main:

• Max Resolution: 1920x1080
• Frame Rate: 50Hz
• Lens (Focal Length): 50mm
• Min. Focusing Distance: 3m
• Field of View: 7.7 degrees x 5.8 degrees
• Aperture: F1.2
• Magnification: 3.5x

Image Display:

• Display: 1024x768, 0.39 inch, OLED
• Image Mode: Day, Night
• Exit Pupil: 5mm
• Eye Relief: 60mm
• Diopter (Range): -5D to 5D

System:

• Digital Zoom: 1x, 2x, 4x
• Capture Resolution: 1440x1080
• Record Video: On-board video recording
• Standby Mode: Yes
• PIP: Yes
• Capture Snapshot: Yes
• Freeze Zeroing: Yes
• Recoil Activation Recording: Yes
• Record Video Resolution: 1440x1080
• Max. Recoil: 1000g
• Reticle: Yes
• Audio Recording: Yes
• Wi-Fi Hotspot: Yes, HIKMICRO Sight App
• Storage: Built-in EMMC (64GB)

Power Supply:

• Battery Type: Two rechargeable Lithium batteries (internal)
• Battery Operating Time: 12 hours continuous running (@ 25 degrees Celcius, Wi-Fi off)
• Battery Capacity Display: Yes
• Anti-Reverse Battery Connection: Yes
• Overvoltage Protection: Yes
• Power Supply: 5 VDC/2A, USB Type-C interface, supports QC3.0 PLEASE NOTE: When purchasing further CR123A batteries for your unit , please ensure the voltage on the battery is no greater than 3.0V. This for your safety and those around you.

General:

• Working Temperature: -30 to 55 degrees Celcius (-22 to 131 degrees Fahrenheit)
• Dimensions: 442mm x 78.1mm x 83.5mm
• Weight: 1062g without eyepiece and CR123A
• Protection Level: IP67

• Sensor: 640 x 512px @ 12µm
• Objective Lens: 50 mm / F1.0
• Detection Range (Human 1.8 x 0.5m): 2600m
• Magnification Riflescope: 2.5x

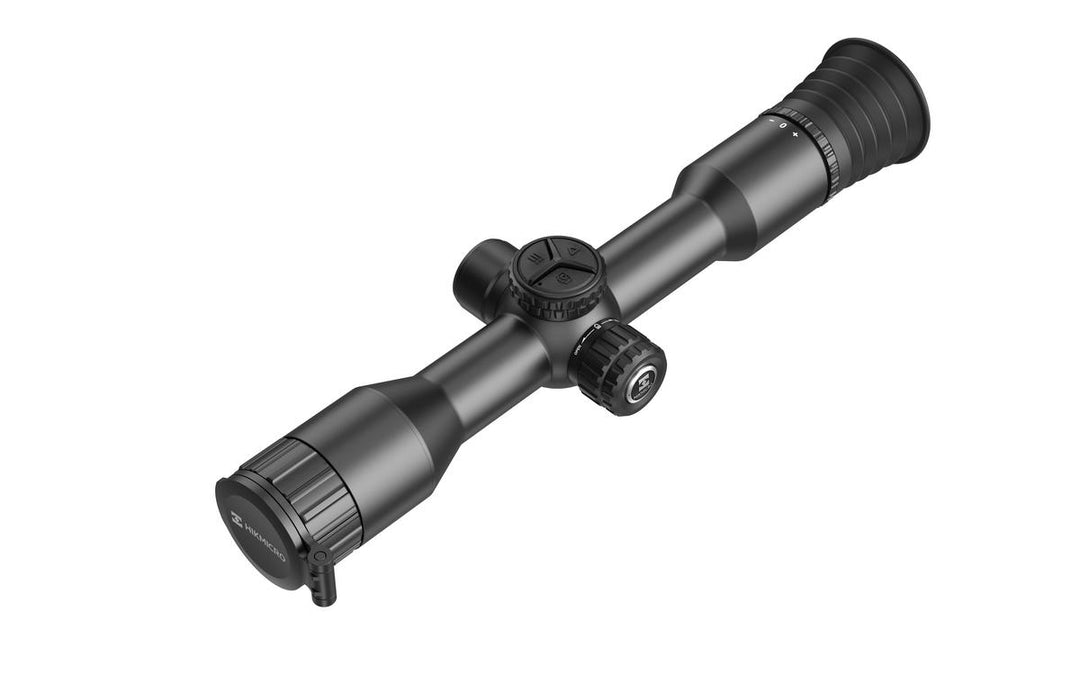

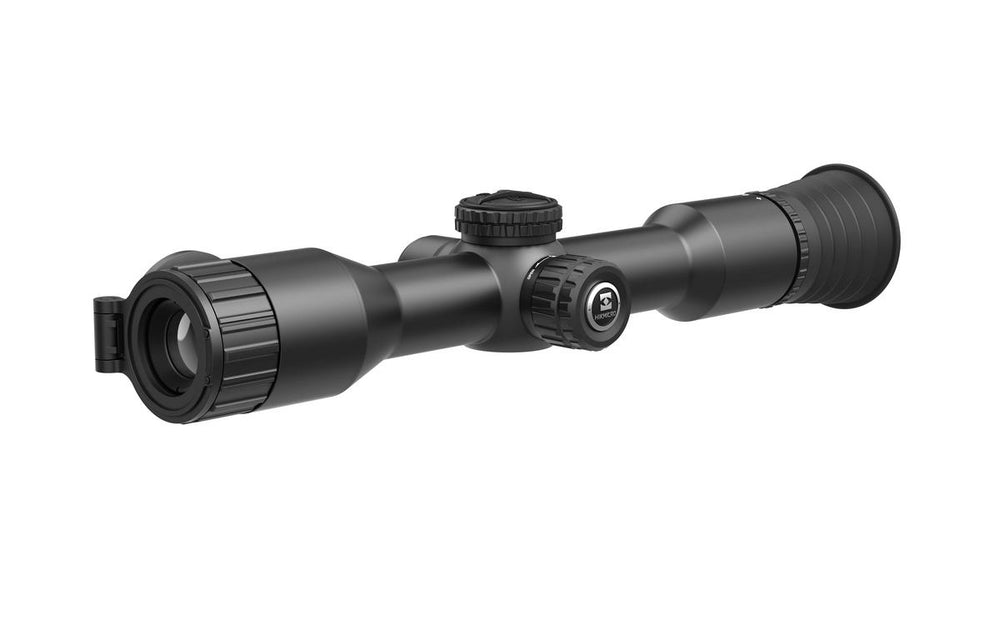

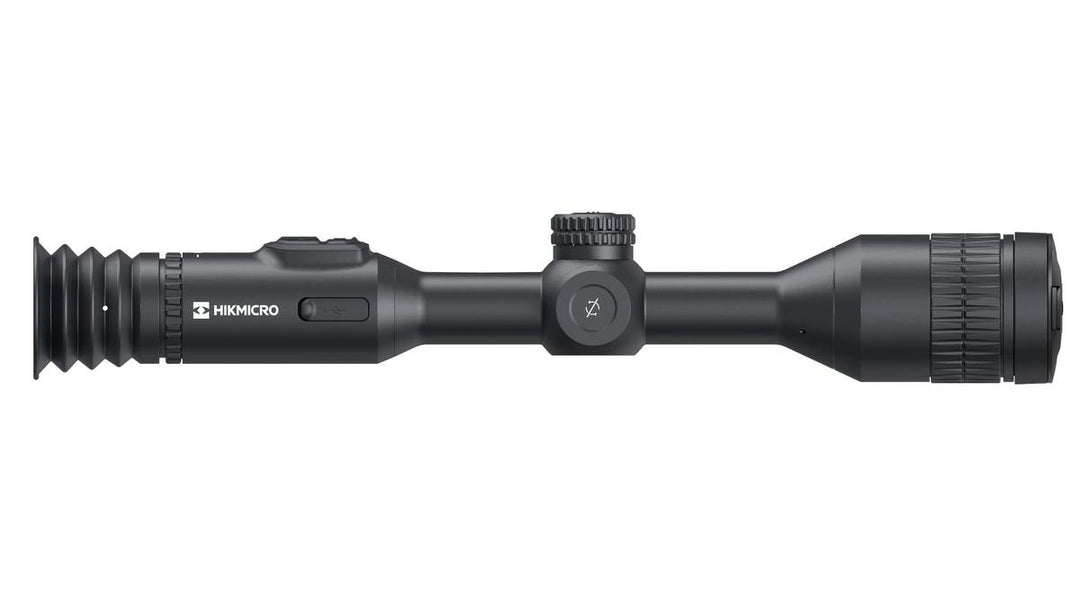

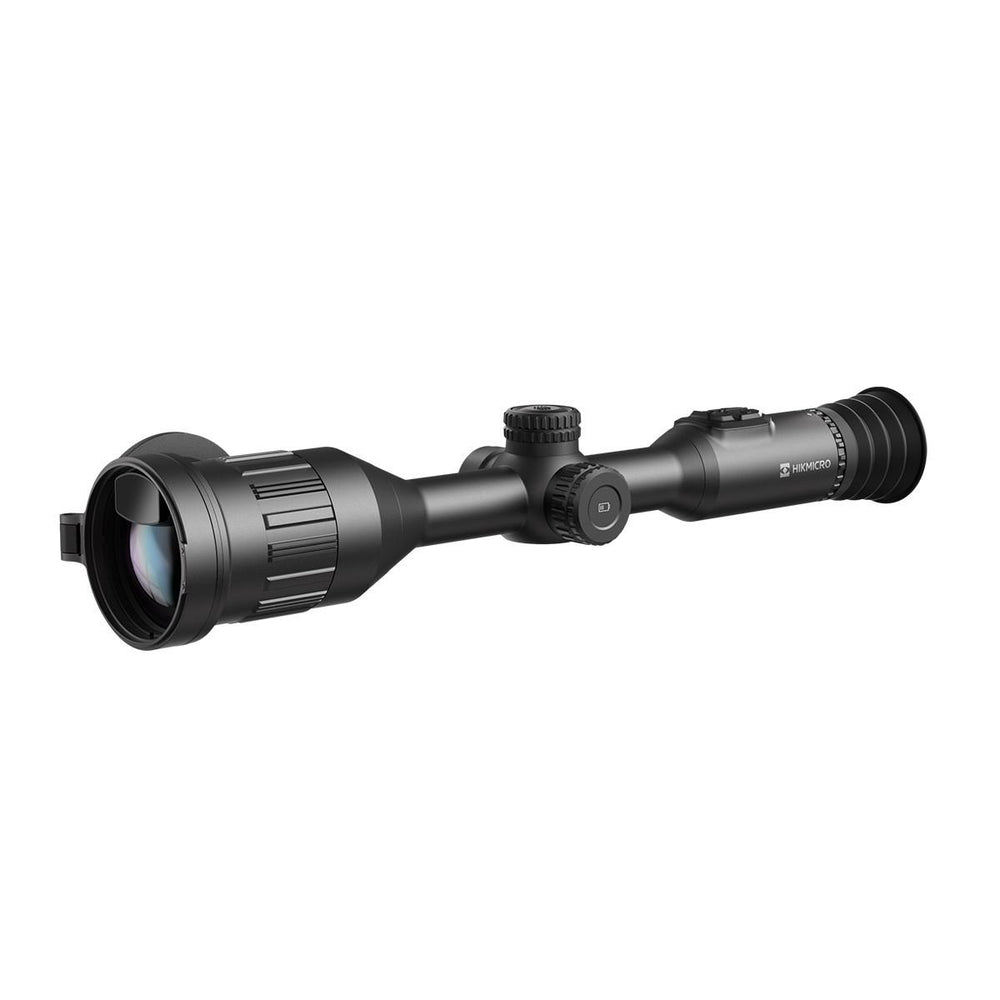

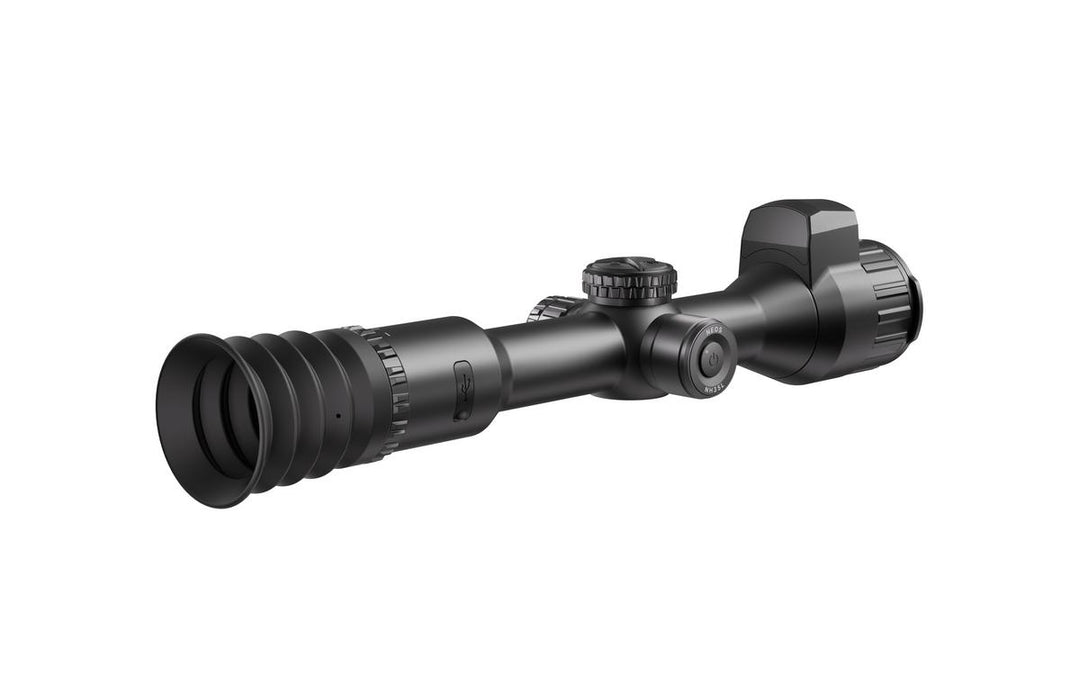

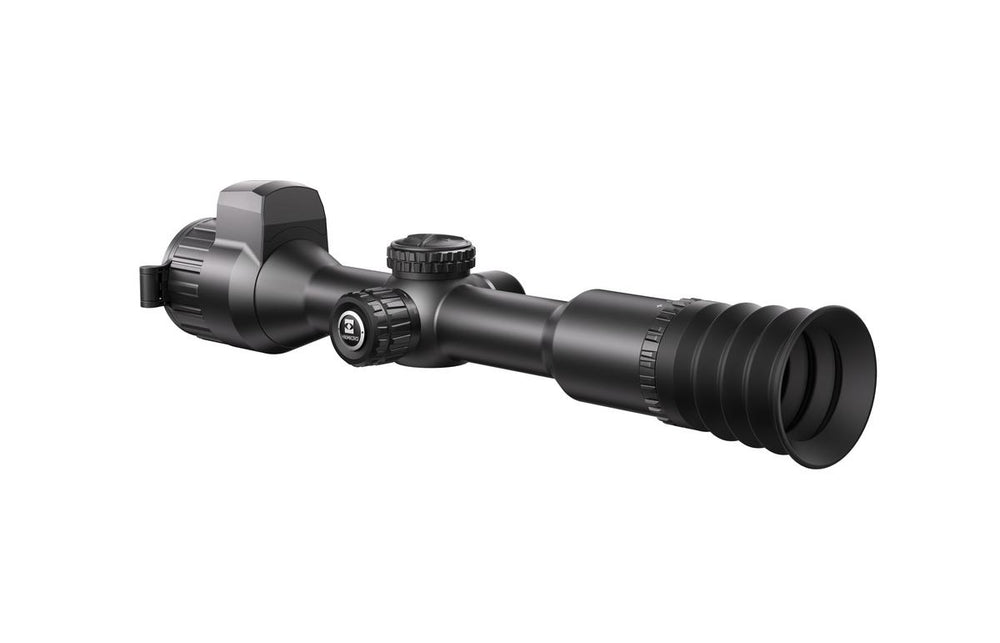

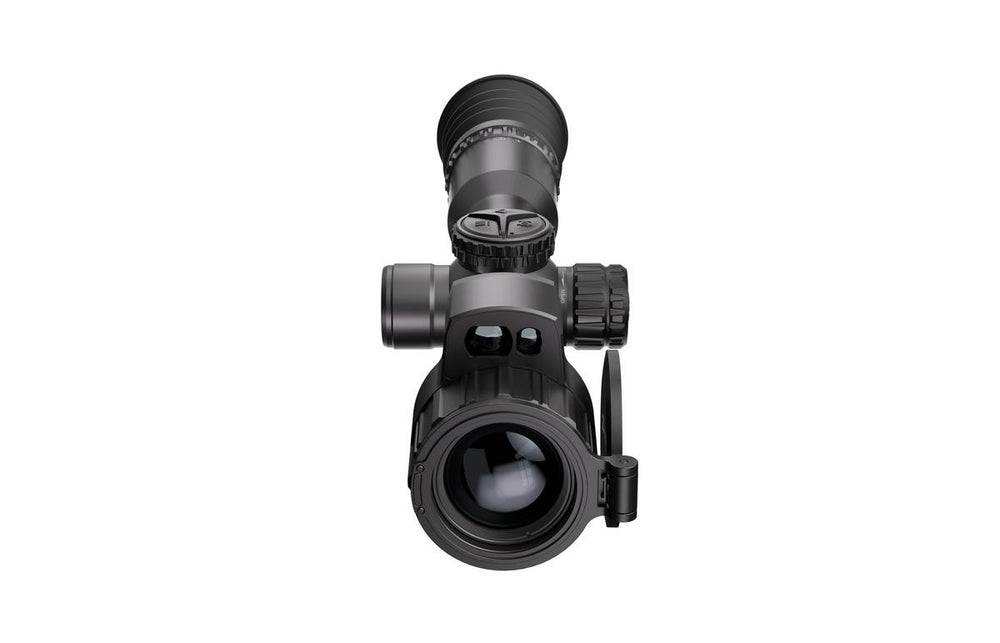

The all new Thunder 2.0 from HIKMICRO builds on the success of the original Thunder Pro with an updated, ergonomic design and industry leading SUB 20mK NETD thermal sensor that delivers the ultimate image detail.
The Thunder 2.0 chassis has been completely redesigned from the ground up and incorporates many new features including the removable HIKMICRO Li-ion battery pack which delivers up to 6.5 hours of runtime and can be conveniently recharged away from the gun.
The Thunder 2.0 shares the sensor with the industry leading Falcon FQ50 monocular, boasting a highly detailed 640px resolution with SUB 20mK NETD, the thunder 2.0 is able to detect very small temperature differences, allowing it to build an incredibly detailed image. This ensures that you can confidently identify not only the heat source but build an accurate understanding of the backdrop before you take the shot.
The focus system has also been completely redesigned with a new dial system located on the top of the scope which is ergonomic to use and allows precise adjustment, delivering the best possible image while in use.
The Thunder 2.0 is loaded with HIKMICRO’s powerful software to boost your hunting experience - including one shot zero, picture in picture, recoil activated recording and access to the HIKMICRO Sight app which allow you to stream and control your scope from your phone.
Specs
MAIN

• Sensor: 640 x 512px @ 12µm
• Objective Lens: 50 mm / F1.0
• Detection Range (Human 1.8 x 0.5m): 2600m
• Magnification Riflescope: 2.5x

SENSOR

• Resolution, pixels: 640 x 512 px
• Pixel pitch, µm: 12µm
• Frame rate, Hz: 50 Hz
• NETD: <20mK

OPTICS

• Objective lens: F1.0
• Focal Length: 50mm
• Focus type: Dial focus
• Magnification (Optical): 2.6x
• Magnification (Digital): 1x, 2x, 4x, 8x
• Min Focusing distance: 10m
• Field of view: 8.78° × 7.03°

DISPLAY

• Type: 9.9mm OLED
• Resolution, Pixels: 1024 × 768
• Exit Pupil: 6mm
• Eye Relief: 45mm
• Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
• Picture-in-Picture: Yes

VIDEO RECORDER

• Video recording: Yes
• Picture snapshot: Yes
• Build in memory, Gb: 16 Gb

ADDITIONAL FEATURES

• Hot Tracking: YES
• WiFI hot spot: YES
• Recoil activated recording: YES
• Audio recording: YES
• HIKMICRO Connect App support: YES

ENVIRONMENTAL

• Degree of protection, IP code: IP67
• Water protection: Protected against temporary submersion in water
• Operating temperature range: -30 °C to 55 °C

WEIGHT & SIZE

• Dimensions, mm: 230 mm × 73 mm × 68 mm
• Weight, kg: 0.53 kg

POWER SUPPLY

• Operating time on battery (WiFi & Hot tracking disabled): 6.5 Hours continuous running
• Charging interface: External Charger
• Battery type: Removable & rechargable Li-ion battery pack

WARRANTY PERIOD
Main Unit: 3 Years

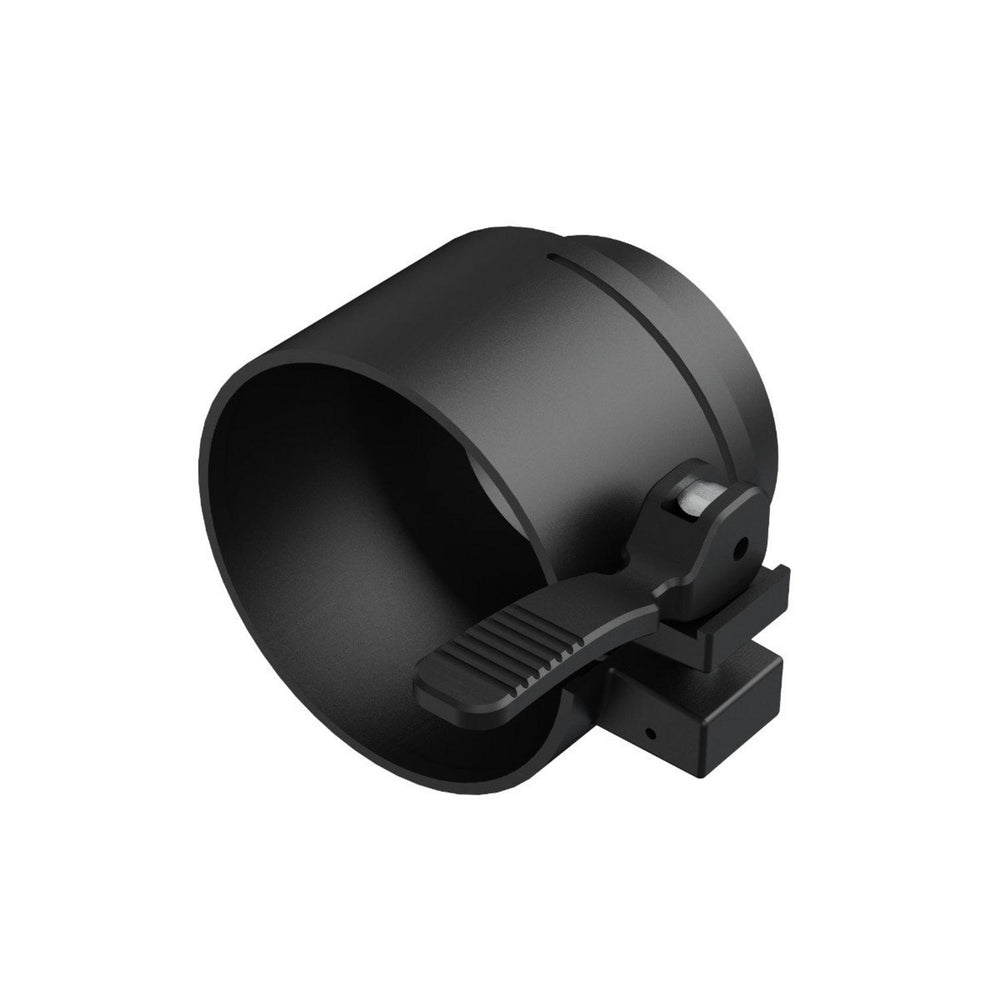

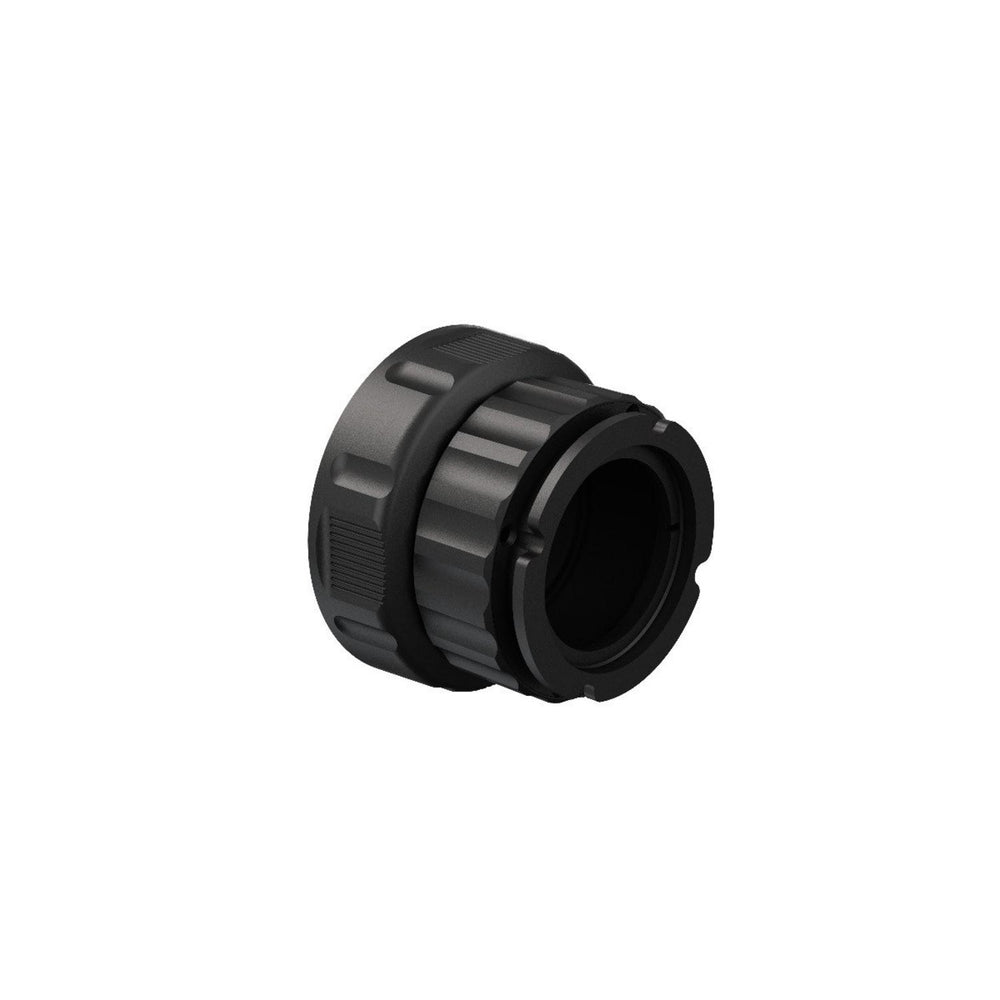

Securely attach your HikMicro Thunder Thermal Imaging scope to the objective bell of your optical scope. The HikMicro Thunder 38A adapter provides the mounting point to quickly attach and disconnect your Thunder thermal module.

Securely attach your HikMicro Thunder Thermal Imaging scope to the objective bell of your optical scope. The HikMicro Thunder 38A adapter provides the mounting point to quickly attach and disconnect your Thunder thermal module.

• Sensor: 384×288px @ 12µm
• Objective Lens: 35 mm / F1.0
• Detection Range (Human 1.8 x 0.5m): 1800 m
• Magnification Riflescope: 3.0x

The all new Thunder 2.0 from HIKMICRO builds on the success of the original Thunder with an updated, ergonomic design and industry leading SUB 20mK NETD thermal sensor that delivers the ultimate image detail.
The Thunder 2.0 chassis has been completely redesigned from the ground up and incorporates many new features including the removable HIKMICRO Li-ion battery pack which delivers up to 6.5 hours of runtime and can be conveniently recharged away from the gun.
The Thunder 2.0 shares the sensor with the industry leading Falcon FH35 monocular, boasting 384px resolution with SUB 20mK NETD performance, the thunder 2.0 is able to detect very small temperature differences, allowing it to build an incredibly detailed image. This ensures that you can confidently identify not only the heat source but build an accurate understanding of the backdrop before you take the shot.
The focus system has also been completely redesigned with a new dial system located on the top of the scope which is ergonomic to use and allows precise adjustment, delivering the best possible image while in use.
The Thunder 2.0 is loaded with HIKMICRO’s powerful software to boost your hunting experience - including one shot zero, picture in picture, recoil activated recording and access to the HIKMICRO Sight app which allow you to stream and control your scope from your phone.
Specs
MAIN

• Sensor: 384×288px @ 12µm
• Objective Lens: 35 mm / F1.0
• Detection Range (Human 1.8 x 0.5m): 1800 m
• Magnification Riflescope: 3.0x

SENSOR

• Resolution, pixels: 384 × 288 px
• Pixel pitch, µm: 12µm
• Frame rate, Hz: 50 Hz
• NETD: <20mK

OPTICS

• Objective lens: F1.0
• Focal Length: 35mm
• Focus type: Dial focus
• Magnification (Optical): 3.0x
• Magnification (Digital): 1x, 2x, 4x, 8x
• Min Focusing distance: 2m
• Field of view: 7.53° × 5.65°

DISPLAY

• Type: 9.9mm, OLED
• Resolution, Pixels: 1024 x 768 px
• Exit Pupil: 6 mm
• Eye Relief: 45 mm
• Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
• Picture-in-Picture: Yes

VIDEO RECORDER

• Video recording: Yes
• Picture snapshot: Yes
• Build in memory, Gb: 26 Gb

ADDITIONAL FEATURES

• Hot Tracking: YES
• WiFI hot spot: YES
• Recoil activated recording: YES
• Audio recording: YES
• HIKMICRO Connect App support: YES

ENVIRONMENTAL

• Degree of protection, IP code: IP67
• Water protection: Protected against temporary submersion in water
• Operating temperature range: -30 °C to 55 °C

WEIGHT & SIZE

• Dimensions, mm: 221 mm × 67 mm × 68 mm
• Weight, kg: 0.51 kg

POWER SUPPLY

• Operating time on battery (WiFi & Hot tracking disabled): 6.5 Hours continuous running
• Charging interface: External Charger
• Battery type: Removable & rechargable Li-ion battery pack

WARRANTY PERIOD
Main Unit: 3 Years

• Sensor: 256 x 192px @ 12µm
• Objective Lens: 19 mm / F1.0
• Detection Range (Human 1.8 x 0.5m): 1000m
• Magnification Riflescope: 2.5x

The all new Thunder 2.0 from HIKMICRO builds on the success of the original Thunder with an updated, ergonomic design and price point that makes thermal riflescopes affordable to a much wider group of shooters.
The Thunder 2.0 chassis has been completely redesigned from the ground up and incorporates many new features including the removable HIKMICRO Li-ion battery pack which delivers more than 10 hours of runtime and can be conveniently recharged away from the gun.
Fitted with HIKMICRO’s 256px, SUB 35mK NETD sensor the Thunder 2.0 is able to detect small temperature differences, allowing it to build a detailed image of your surroundings showing you any nearby heat sources and their surroundings. Optimised for air rifle and rimfire shooters the Thunder 2.0 provides and affordable entry level into hunting with thermal without having to compromise on the quality.
The Thunder 2.0 is loaded with HIKMICRO’s powerful software to boost your hunting experience - including one shot zero, picture in picture, recoil activated recording and access to the HIKMICRO Sight app which allow you to stream and control your scope from your phone.
Specs
MAIN

• Sensor: 256 x 192px @ 12µm
• Objective Lens: 19 mm / F1.0
• Detection Range (Human 1.8 x 0.5m): 1000m
• Magnification Riflescope: 2.5x

SENSOR

• Resolution, pixels: 256 x 192px
• Pixel pitch, µm: 12µm
• Frame rate, Hz: 50 Hz
• NETD: <35mK

OPTICS

• Objective lens: F1.0
• Focal Length: 19mm
• Focus type: Barrel focus
• Magnification (Optical): 2.5x
• Magnification (Digital): 1x, 2x, 4x, 8x
• Min Focusing distance: 0.5m
• Field of view: 9.24° × 6.94°

DISPLAY

• Type: 9.9mm OLED
• Resolution, Pixels: 1024 × 768
• Exit Pupil: 6mm
• Eye Relief: 45mm
• Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
• Picture-in-Picture: Yes

VIDEO RECORDER

• Video recording: Yes
• Picture snapshot: Yes
• Build in memory, Gb: 16 Gb

ADDITIONAL FEATURES

• Hot Tracking: YES
• WiFI hot spot: YES
• Recoil activated recording: YES
• Audio recording: YES
• HIKMICRO Connect App support: YES

ENVIRONMENTAL

• Degree of protection, IP code: IP67
• Water protection: Protected against temporary submersion in water
• Operating temperature range: -30 °C to 55 °C

WEIGHT & SIZE

• Dimensions, mm: 218 mm x 67 mm x 68 mm
• Weight, kg: 0.47 kg

POWER SUPPLY

• Operating time on battery (WiFi & Hot tracking disabled): 10 Hours continuous running
• Charging interface: External Charger
• Battery type: Removable & rechargable Li-ion battery pack

WARRANTY PERIOD
Main Unit: 3 Years

• Sensor: 256 x 192px @ 12µm
• Objective Lens: 19 mm / F1.0
• Detection Range (Human 1.8 x 0.5m): 1000m
• Magnification Riflescope: 2.5x

The all new Thunder 2.0 from HIKMICRO builds on the success of the original Thunder with an updated, ergonomic design and price point that makes thermal riflescopes affordable to a much wider group of shooters.
The Thunder 2.0 chassis has been completely redesigned from the ground up and incorporates many new features including the removable HIKMICRO Li-ion battery pack which delivers more than 10 hours of runtime and can be conveniently recharged away from the gun.
Fitted with HIKMICRO’s 256px, SUB 35mK NETD sensor the Thunder 2.0 is able to detect small temperature differences, allowing it to build a detailed image of your surroundings showing you any nearby heat sources and their surroundings. Optimised for air rifle and rimfire shooters the Thunder 2.0 provides and affordable entry level into hunting with thermal without having to compromise on the quality.
The Thunder 2.0 is loaded with HIKMICRO’s powerful software to boost your hunting experience - including one shot zero, picture in picture, recoil activated recording and access to the HIKMICRO Sight app which allow you to stream and control your scope from your phone.
Specs
MAIN

• Sensor: 256 x 192px @ 12µm
• Objective Lens: 19 mm / F1.0
• Detection Range (Human 1.8 x 0.5m): 1000m
• Magnification Riflescope: 2.5x

SENSOR

• Resolution, pixels: 256 x 192px
• Pixel pitch, µm: 12µm
• Frame rate, Hz: 50 Hz
• NETD: <35mK

OPTICS

• Objective lens: F1.0
• Focal Length: 19mm
• Focus type: Barrel focus
• Magnification (Optical): 2.5x
• Magnification (Digital): 1x, 2x, 4x, 8x
• Min Focusing distance: 0.5m
• Field of view: 9.24° × 6.94°

DISPLAY

• Type: 9.9mm OLED
• Resolution, Pixels: 1024 × 768
• Exit Pupil: 6mm
• Eye Relief: 45mm
• Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
• Picture-in-Picture: Yes

VIDEO RECORDER

• Video recording: Yes
• Picture snapshot: Yes
• Build in memory, Gb: 16 Gb

ADDITIONAL FEATURES

• Hot Tracking: YES
• WiFI hot spot: YES
• Recoil activated recording: YES
• Audio recording: YES
• HIKMICRO Connect App support: YES

ENVIRONMENTAL

• Degree of protection, IP code: IP67
• Water protection: Protected against temporary submersion in water
• Operating temperature range: -30 °C to 55 °C

WEIGHT & SIZE

• Dimensions, mm: 218 mm x 67 mm x 68 mm
• Weight, kg: 0.47 kg

POWER SUPPLY

• Operating time on battery (WiFi & Hot tracking disabled): 10 Hours continuous running
• Charging interface: External Charger
• Battery type: Removable & rechargable Li-ion battery pack

WARRANTY PERIOD
Main Unit: 3 Years

• Image Sensor: Uncooled Focal Plane Arrays
• Max Resolution:640x512
• Frame rate: 50Hz
• Pixel Interval:12μm
• NETD: Less than 20mK (25 °C, F#=1.0)
• Focal Length: 50mm
• Detection Range: 2600m
• Min Focus Distance: 5m
• Aperture: F1.0
• Display: 1024x768, 0.39 inch, OLED
• Palettes: Black hot, white hot, red hot, fusion
• FFC: Auto, Manual, External Correction
• Exit Pupil: 6mm
• Eye Relief: 45mm
• Diopter: -5D to 3D
• Tone Adjustment: Cold, Warm
• Working Temp: -30 °C to +55 °C
• Dimensions: 226.81mm x 73.4mm x 87.10
• Weight 585g

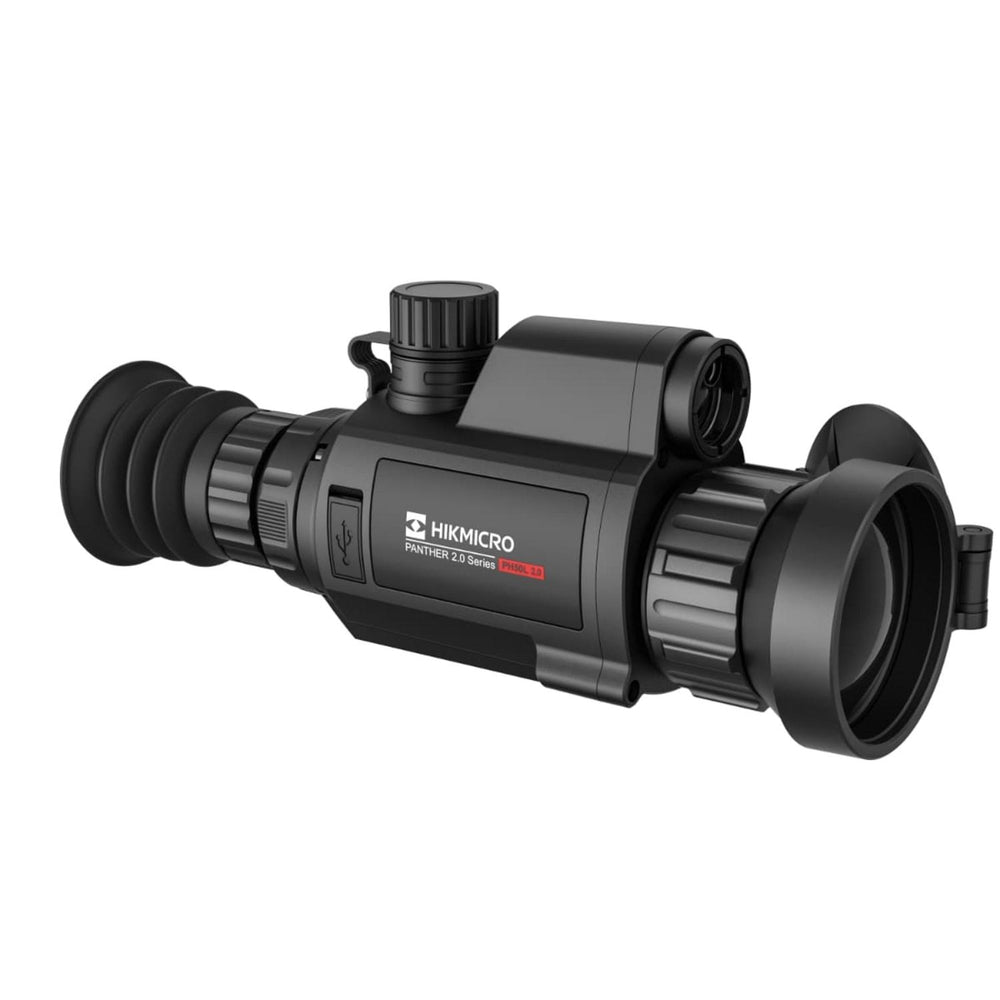

Building upon the success of the original Panther, the all-new 2.0 version adds sub 20mK NETD sensitivity for extreme clarity and amazing identification ability. Built-in 600m Laser Rangefinding, with new Ballistics Calculator (available Nov 23), compact form, solid construction, long battery life (with detachable 18650 battery), and on-board recording & sharing complete the impressive specification – an outstanding Thermal Scope at an ultra-competitive price-point.
Developed to be ergonomic and easy to use in the dark, the Panther has a robust focus ring fitted behind the objective lens. All of the other major controls are completed by the innovative jog dial. Rotating the jog dial adjusts the magnification, pressing and holding will load the menu, which can then be navigated and controlled from the dial. There are only 2 other buttons on the Panther, one controls the Laser Rangefinder, the other is used to power the unit on or put it into standby mode.
The Panther PQ50L 2.0 comes with either HIKMICRO’s 640x512px, 12µm sensor - with sub 20mk NETD performance. This highly accurate thermal sensor is capable of detecting tiny temperature differences, building a highly detailed image, even in the harshest of conditions.
The thermal sensor is paired with HIKMICRO’s high performance 50mm focal length lens system that delivers 2.3x base optical magnification. The 8x digital zoom gives a maximum magnification of 18x. The thermal lens system has a high specification F1.0 aperture, which means there are no restrictions in the lens system and all of the available thermal signals can reach the sensor to deliver outstanding thermal performance in all conditions.
The large 1024x768px OLED display gives you an excellent view of your target and your surroundings. The display can be customised to include the option of Picture-In-Picture and the Laser Rangefinder readings can be altered to suit your style of shooting. You can also select from 4 thermal colour palettes White Hot, Black Hot, Fusion and Red Hot.
The Panther uses HIKMICRO’s latest software which includes an updated zeroing system with a one shot zero, making it quick and easy to get the Scope setup with your Rifle. You also have the ability to record pictures and video of your shooting trips directly to the Scope or you can use the App to stream, record and control your Panther from your mobile phone.
The robust chassis joins to the supplied Picatinny rail making it easy to attach to your Rifle and achieve the perfect eye relief. With a recoil rating of 750 g/ms the Panther will perform on large calibre Rifles such as .375 H7H without a problem. The IP67 rating means that the Scope is waterproof and you can continue shooting in the worst of the weather.
The Panther 2.0 is powered by the industry standard 18650 removable battery. This makes extended hunting trips possible without any power concerns. Replacement batteries are readily available and economical to buy. There is also a high specification charger included with your Panther, which provides the charging status and health of your batteries, ensuring you will never be caught in the field with a dead battery.
All thermal sensors used in HIKMICRO products are designed, developed and manufactured by HIKMICRO. This guarantees you unrivalled performance and value for money. You are also covered by the 3 year HIKMICRO UK warranty. Should you encounter a problem with your product, HIKMICRO have UK based technicians who can resolve any issue quickly.
Specs

• Image Sensor: Uncooled Focal Plane Arrays
• Max Resolution:640x512
• Frame rate: 50Hz
• Pixel Interval:12μm
• NETD: Less than 20mK (25 °C, F#=1.0)
• Focal Length: 50mm
• Detection Range: 2600m
• Min Focus Distance: 5m
• Aperture: F1.0
• Display: 1024x768, 0.39 inch, OLED
• Palettes: Black hot, white hot, red hot, fusion
• FFC: Auto, Manual, External Correction
• Exit Pupil: 6mm
• Eye Relief: 45mm
• Diopter: -5D to 3D
• Tone Adjustment: Cold, Warm
• Working Temp: -30 °C to +55 °C
• Dimensions: 226.81mm x 73.4mm x 87.10
• Weight 585g

• Image Sensor: Uncooled Focal Plane Arrays
• Max Resolution:384x288
• Frame rate: 50Hz
• Pixel Interval:12μm
• NETD: Less than 20mK (25 °C, F#=1.0)
• Focal Length: 50mm
• Detection Range: 2600m
• Min Focus Distance: 5m
• Aperture: F1.0
• Display: 1024x768, 0.39 inch, OLED
• Palettes: Black hot, white hot, red hot, fusion
• FFC: Auto, Manual, External Correction
• Exit Pupil: 6mm
• Eye Relief: 45mm
• Diopter: -5D to 3D
• Tone Adjustment: Cold, Warm
• Working Temp: -30 °C to +55 °C
• Dimensions: 226.81mm x 73.4mm x 87.10
• Weight 585g

Building upon the success of the original Panther, the all-new 2.0 version adds sub 20mK NETD sensitivity for extreme clarity and amazing identification ability. Built-in 600m Laser Rangefinding, with new Ballistics Calculator (available Nov 23), compact form, solid construction, long battery life (with detachable 18650 battery), and on-board recording & sharing complete the impressive specification – an outstanding Thermal Scope at an ultra-competitive price-point.
Developed to be ergonomic and easy to use in the dark, the Panther has a robust focus ring fitted behind the objective lens. All of the other major controls are completed by the innovative jog dial. Rotating the jog dial adjusts the magnification, pressing and holding will load the menu, which can then be navigated and controlled from the dial. There are only 2 other buttons on the Panther, one controls the Laser Rangefinder, the other is used to power the unit on or put it into standby mode.
The Panther PQ50L 2.0 comes with either HIKMICRO’s 640x512px, 12µm sensor - with sub 20mk NETD performance. This highly accurate thermal sensor is capable of detecting tiny temperature differences, building a highly detailed image, even in the harshest of conditions.
The thermal sensor is paired with HIKMICRO’s high performance 50mm focal length lens system that delivers 2.3x base optical magnification. The 8x digital zoom gives a maximum magnification of 18x. The thermal lens system has a high specification F1.0 aperture, which means there are no restrictions in the lens system and all of the available thermal signals can reach the sensor to deliver outstanding thermal performance in all conditions.
The large 1024x768px OLED display gives you an excellent view of your target and your surroundings. The display can be customised to include the option of Picture-In-Picture and the Laser Rangefinder readings can be altered to suit your style of shooting. You can also select from 4 thermal colour palettes White Hot, Black Hot, Fusion and Red Hot.
The Panther uses HIKMICRO’s latest software which includes an updated zeroing system with a one shot zero, making it quick and easy to get the Scope setup with your Rifle. You also have the ability to record pictures and video of your shooting trips directly to the Scope or you can use the App to stream, record and control your Panther from your mobile phone.
The robust chassis joins to the supplied Picatinny rail making it easy to attach to your Rifle and achieve the perfect eye relief. With a recoil rating of 750 g/ms the Panther will perform on large calibre Rifles such as .375 H7H without a problem. The IP67 rating means that the Scope is waterproof and you can continue shooting in the worst of the weather.
The Panther 2.0 is powered by the industry standard 18650 removable battery. This makes extended hunting trips possible without any power concerns. Replacement batteries are readily available and economical to buy. There is also a high specification charger included with your Panther, which provides the charging status and health of your batteries, ensuring you will never be caught in the field with a dead battery.
All thermal sensors used in HIKMICRO products are designed, developed and manufactured by HIKMICRO. This guarantees you unrivalled performance and value for money. You are also covered by the 3 year HIKMICRO UK warranty. Should you encounter a problem with your product, HIKMICRO have UK based technicians who can resolve any issue quickly.
Specs

• Image Sensor: Uncooled Focal Plane Arrays
• Max Resolution:384x288
• Frame rate: 50Hz
• Pixel Interval:12μm
• NETD: Less than 20mK (25 °C, F#=1.0)
• Focal Length: 50mm
• Detection Range: 2600m
• Min Focus Distance: 5m
• Aperture: F1.0
• Display: 1024x768, 0.39 inch, OLED
• Palettes: Black hot, white hot, red hot, fusion
• FFC: Auto, Manual, External Correction
• Exit Pupil: 6mm
• Eye Relief: 45mm
• Diopter: -5D to 3D
• Tone Adjustment: Cold, Warm
• Working Temp: -30 °C to +55 °C
• Dimensions: 226.81mm x 73.4mm x 87.10
• Weight 585g

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Frame Rate: 50Hz
• Pixel Interval: 12μm
• Response Waveband: 8μm to 14μm
• NETD: Less than 20 mK (@25°C),F#=1.0
• Detection Range: 1200m
• Field of View(H × V), Degrees / m @100m: 17.5° × 14.0°/30.8 m × 24.6 m
• Min. Focusing Distance: 2.5m
• Aperture: F1.0
• Digital Zoom: 1×，2×，4×，8×
• Focal Length: 25mm
• Resolution: 640×512
• Optical Magnification: 1.42

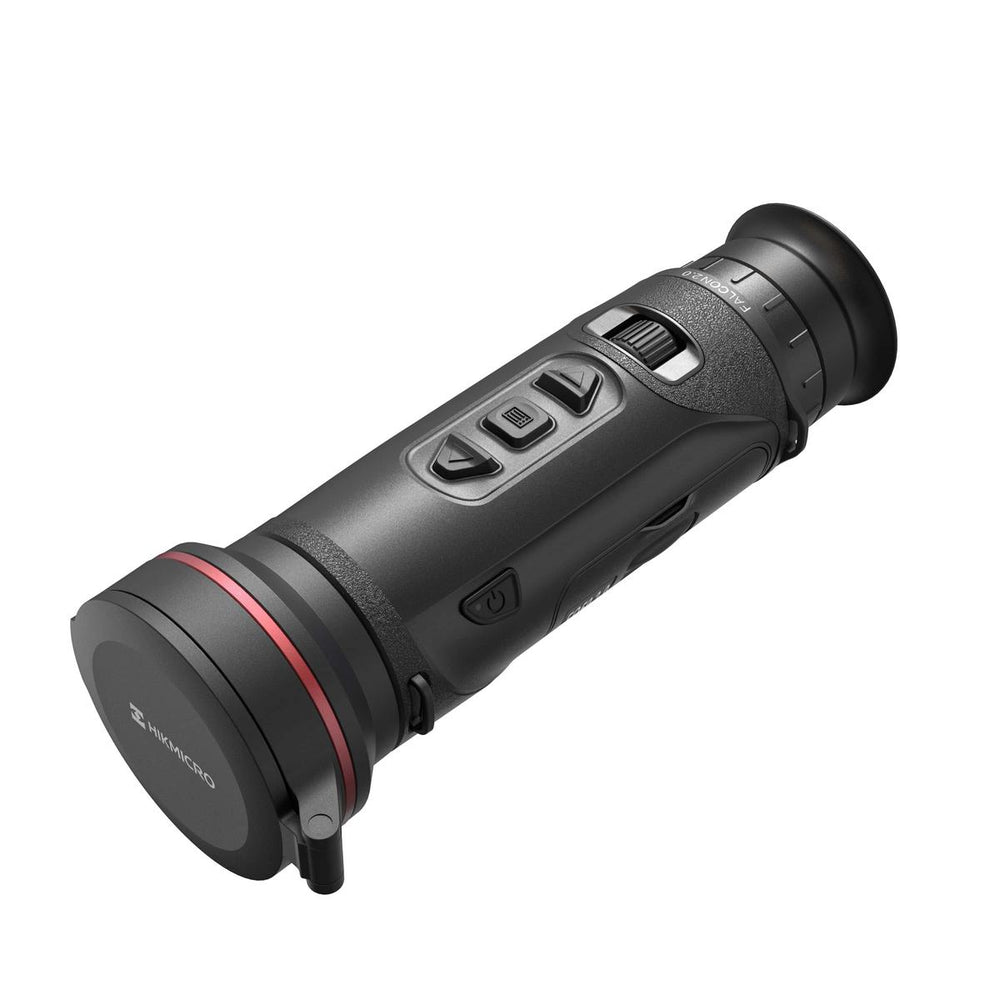

The Falcon Pro 25mm combines the industry leading performance of the HIKMICRO’s latest thermal sensors with a 25mm lens delivering an ultra-wide field of view. This gives a very natural viewing experience and makes the Falcon Pro 25mm perfect for ecology projects and wildlife surveys.
The highly sensitive Falcon Pro 25mm is fitted with a high resolution 640x512px 12um SUB 20 NETD sensor. Capable of detecting the smallest details like animal hair, subtle physical characteristics and information from the surroundings like branches and leaves – building you a reliable picture of your subject and its surroundings.
The HIKMICRO Falcon Pro 25mm replaces the popular Owl series and builds on the easy-to-use, ambidextrous chassis with a highly robust magnesium housing and four buttons that control all functions with ease, even in total darkness. Powered by a removable 18650 battery and with a run time of up to 6 hours the HIKMICRO Falcon FQ25 Pro is ready for work.
The eyecup of the HIKMICRO Falcon Pro 25mm would feel at home on a high-quality pair of binoculars, comfortably holding the display in the correct position, giving you a comfortable view of the large HD OLED screen.
The HIKMICRO Falcon Pro 25mm is the first HIKMICRO product to offer Image Pro mode. When activated image pro boosts the detail in the image both for animals and the background.
In addition to Image Pro, the HIKMICRO Falcon Pro 25mm also boasts all of the normal software features found in HIK products including a choice of 4 colour pallets and access to the HIKMICRO Sight app which allows you to stream, control and record from your thermal monocular. The built-in 64GB memory of the HIKMICRO Falcon Pro 25mm also allows you to save images and videos directly onto the monocular.
Specs
Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Frame Rate: 50Hz
• Pixel Interval: 12μm
• Response Waveband: 8μm to 14μm
• NETD: Less than 20 mK (@25°C),F#=1.0
• Detection Range: 1200m
• Field of View(H × V), Degrees / m @100m: 17.5° × 14.0°/30.8 m × 24.6 m
• Min. Focusing Distance: 2.5m
• Aperture: F1.0
• Digital Zoom: 1×，2×，4×，8×
• Focal Length: 25mm
• Resolution: 640×512
• Optical Magnification: 1.42

Image Display

• Palettes: Black hot, white hot, red hot, fusion
• FFC (Flat Field Correction) Mode: Auto,Manual,External Correction
• Monitor: 0.39 inch, OLED, 1024 ×768

General

• Protection Level: IP67
• Weight: 450g without battery
• Dimension: 190.3 mm ×58.3mm ×66.9 mm（7.64″×2.29″×2.99″）
• Work Temperature / Humidity: From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less

System

• Record Video: Yes
• Capture Snapshot: Yes
• Hotspot: Yes
• Standby Mode: Yes
• Storage: Built-in memory module (64 GB)
• Hot Track: Yes

Power Supply

• Power: 5V，1.95W
• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: 5 hours continuous running with CVBS and hotspot function off (@25°C)

The HIKMICRO EXPLORER E20 Clip-In Thermal Imager is a radically small, versatile, and powerful device. It slots straight into any Android phone or tablet that has a USB Type C socket and transforms the way the user can see the world - and at the very low price of £329.99.

Weighing in at just 26 grams and measuring under 27mm in each dimension, the EXPLORER requires no batteries, drawing only minimal power from the smartphone or tablet. It can be carried easily, ready for near-instant use for spotting birds, animals, people (or indeed any other heat source) in any lighting conditions, including full darkness.

Fitted with a 256x192 thermal sensor and 10mm focal length lens system, the EXPLORER delivers similar thermal performance levels to the best-selling HIKMICRO Lynx 10mm monocular, allowing a good level of image detail and allows you to locate small animals and birds with ease.

The explorer is controlled by the HIKMICRO Sight app and you get access to the same features as the other HIKMICRO products including 4 colour palettes, digital zoom, and the ability to capture image and video.

iPhone version coming soon!

• Latest generation Sub 20mK NETD thermal sensor
• Full colour day & bw night camera
• 1000m laser range finder
• Solid magnesium alloy, waterproof & ergonomic chassis
• Removable 18650 batteries

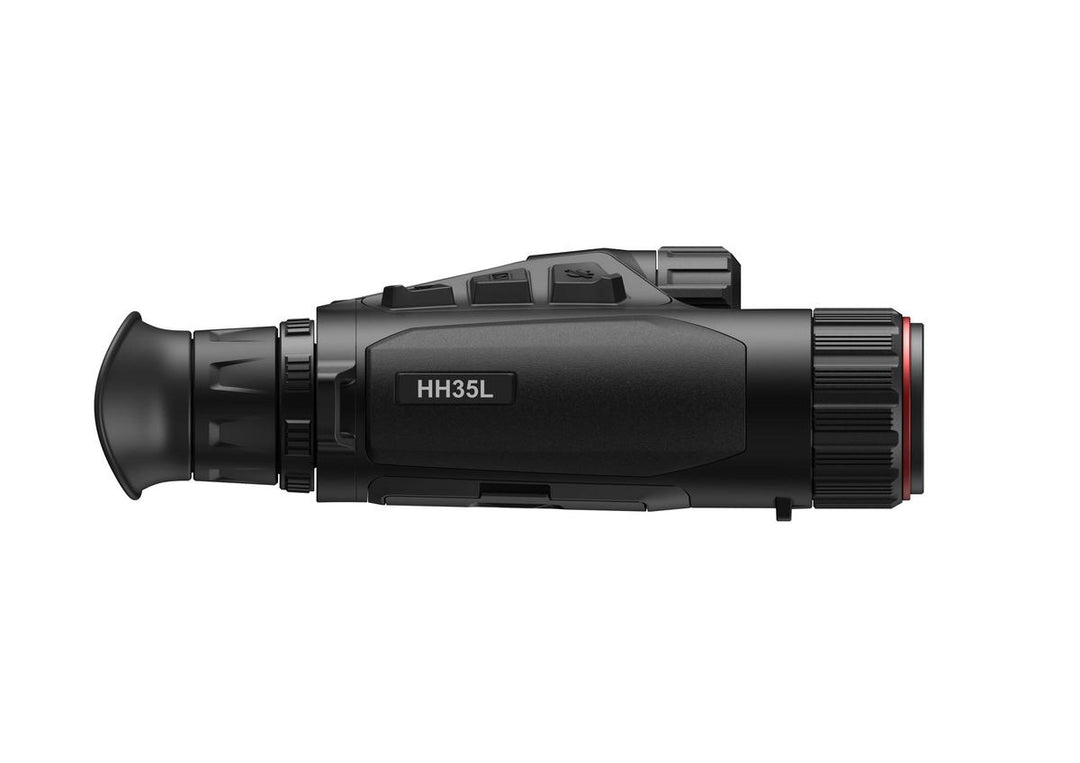

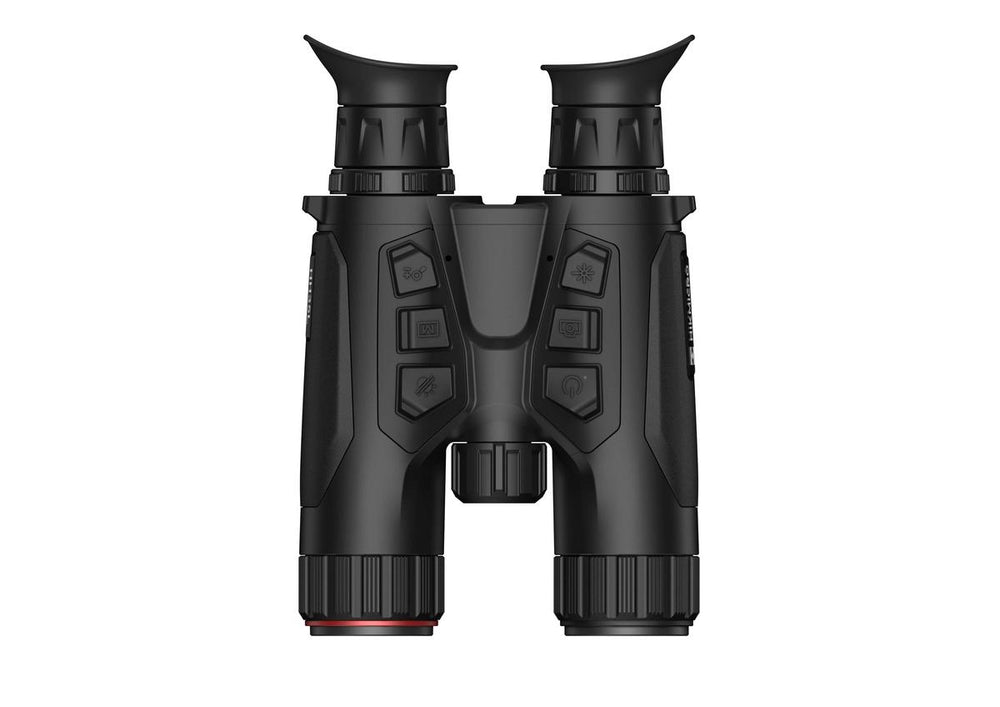

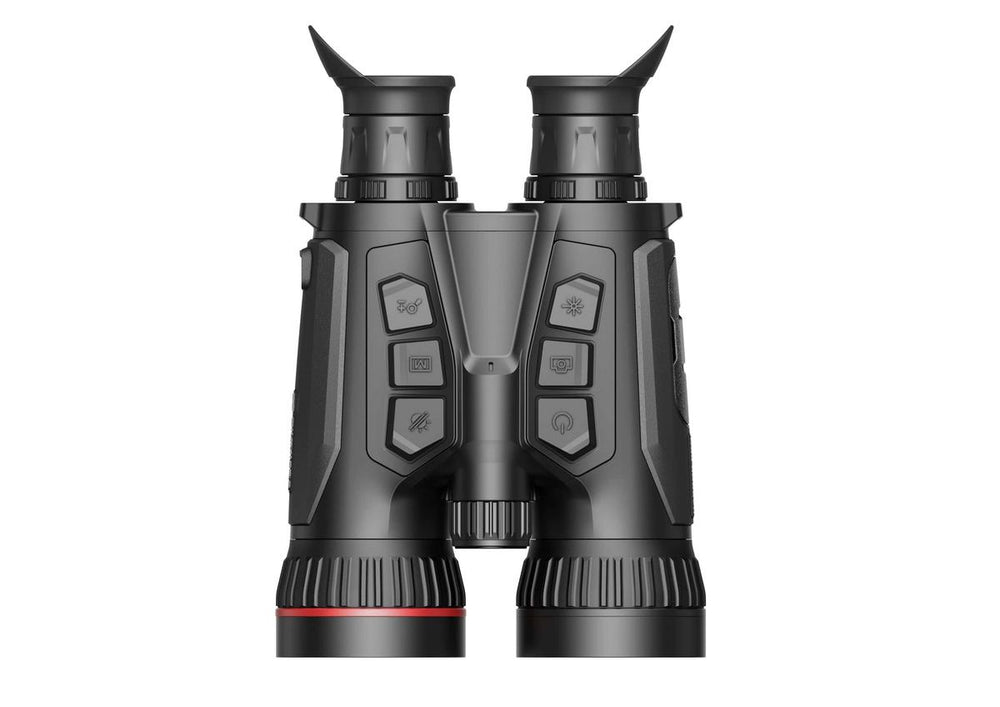

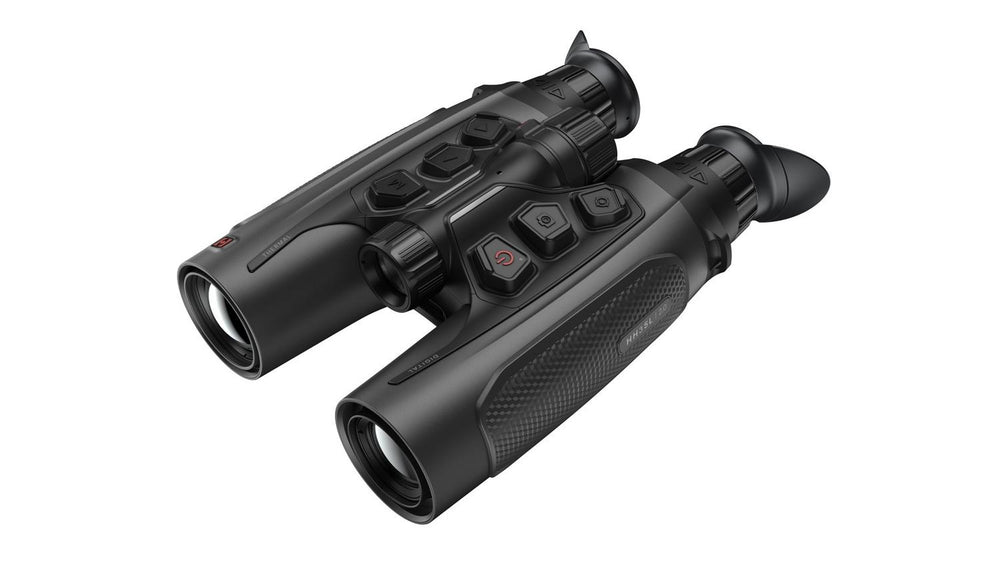

Advanced multi-channel binocular with powerful appeal for many applications. High sensitivity thermal imaging plus high-resolution day & night digital optical channel.
Features

• Latest generation Sub 20mK NETD thermal sensor
• Full colour day & bw night camera
• 1000m laser range finder
• Solid magnesium alloy, waterproof & ergonomic chassis
• Removable 18650 batteries

MAIN

• Sensor:- 384x288px @ 12µm
• Objective Lens (Focal Length):- 35 mm
• Detection Distance:- 1800 m

SENSOR

• Type:- VOx Uncooled Focal Plane Arrays
• Resolution, pixels:- 384 × 288 px
• Pixel pitch, µm:- 12µm
• Frame rate, Hz:- 50 Hz
• NETD:- <20mK

THERMAL OPTICS

• Objective lens:- F1.0
• Focal Length:- 35mm
• Magnification:- 3.5x - 28x
• Min. Focusing Distance:- 3.5m
• Field of view:- 7.5°x5.6° (H × V)°

Optical Camera

• Image Sensor:- Progressive Scan CMOS
• Resolution:- 2560 x 1440px
• Focal Length:- 31mm
• Aperture:- F1.2
• Min. Focusing Distance:- 3m
• Magnification:- 2.9x to 23.3x
• Field of view:- 13.9° × 7.8° (H × V)°
• Smart IR:- Yes
• Viewing range in darkness:- 400m

Laser Range Finder

• Max Measuring range:- 1000m
• Safety Class for laser:- Class 1
• Measurement accuracy:- ± 1m

DISPLAY

• Type:- 12.5mm, OLED
• Resolution, Pixels:- 1920 x 1080
• Thermal Colour Palettes:- Black Hot, White Hot, Red Hot, Fusion
• Optical Colour Palettes:- Full colour Day time, Black and White Night time

Video Recorder

• Build in memory, Gb:- 64 Gb
• Image Capture:- YES
• Video Record:- YES
• Audio recording:- YES

Additional features

• Zoom Pro:- YES
• Standby Mode:- YES
• Picture in Picture:- YES
• GPS & Compass:- YES
• Image Pro Mode:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

Environmental

• Degree of protection, IP code:- IP67
• Dust protection:- Protected against dust ingress
• Water protection:- Protected against temporary submersion in water
• Operating temperature range:- -30 °C to 55 °C

WEIGHT & SIZE

• Dimensions, mm:- 138 mm x 68 mm x 212 mm
• Interpupillary Adj.:- 60mm to 70mm
• Weight, kg:- 780 g

POWER SUPPLY

• Battery type:- 2x 18650 Removable battery
• "Operating time on battery (WiFi & Hot tracking disabled)":- 6 Hours continuous running
• Compatible with USB Powerbank:- YES
• Charging interface:- External charger (Supplied)

Warranty Period
Main Unit:- 3 Years

• Image Pro:- YES
• Zoom Pro:- YES
• Record Video:- YES
• Capture pictures:- YES
• Audio recording:- YES
• Standby mode:- YES
• Picture in Picture:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

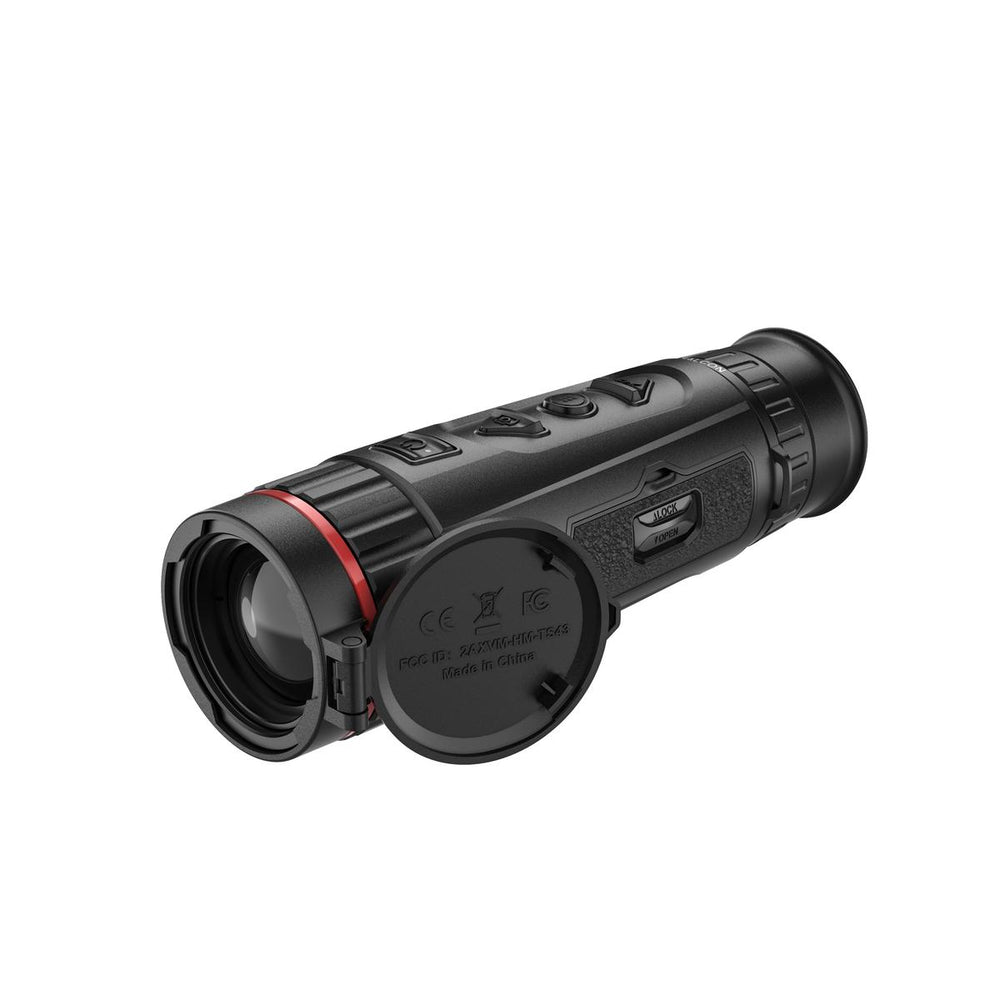

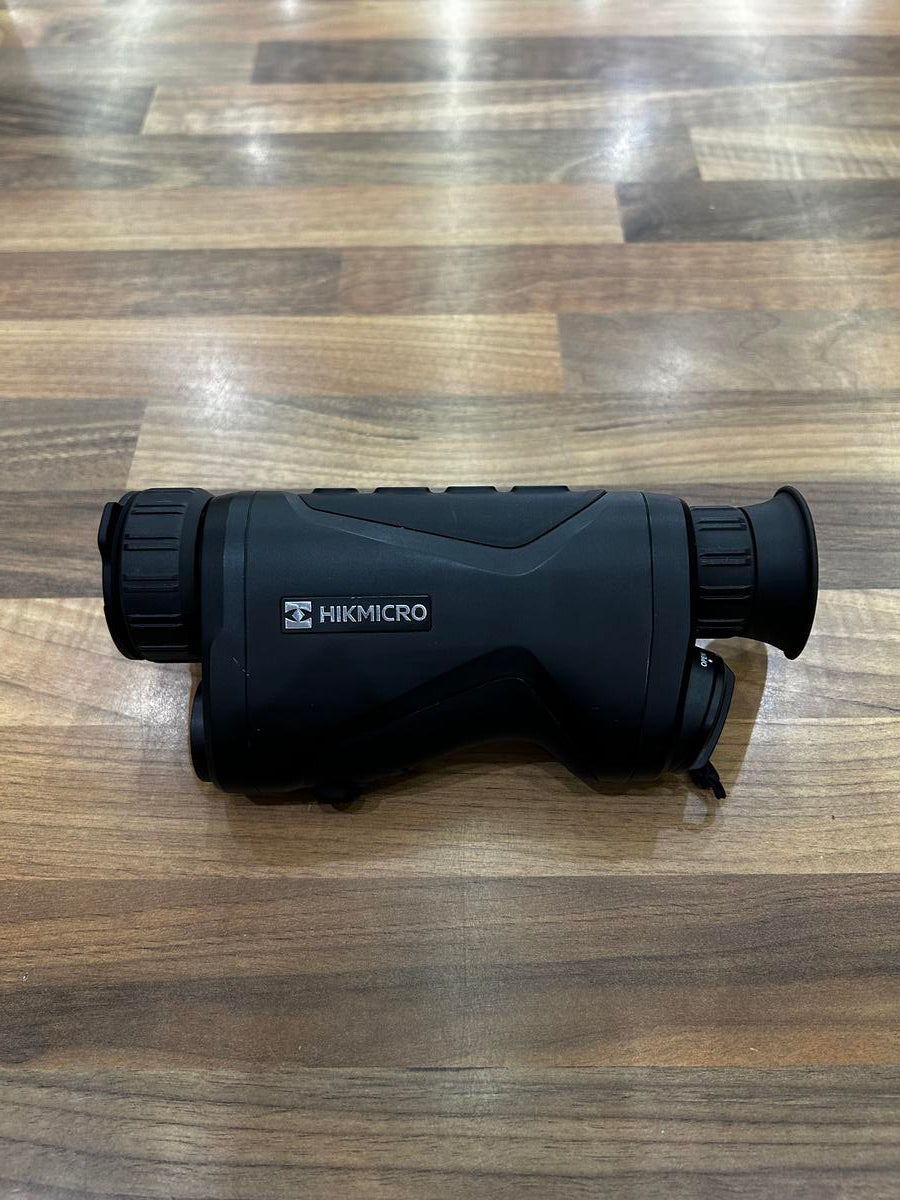

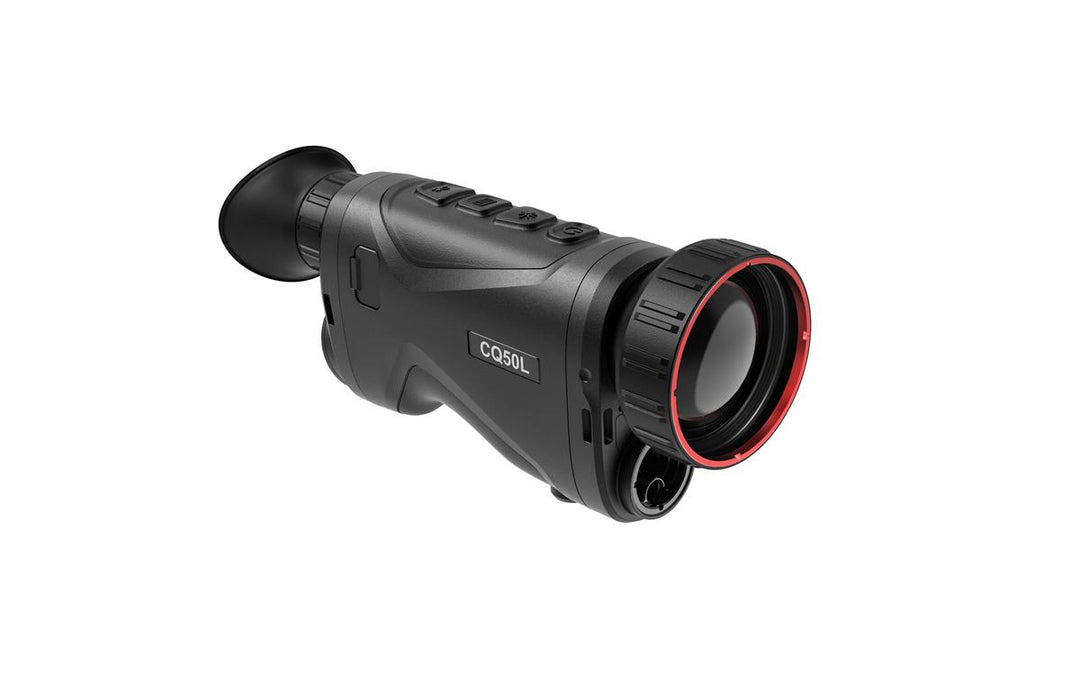

The new HIKMICRO Condor LRF thermal monocular is built around the same high performance, SUB 20mk NETD 384x288px thermal sensor that is found in the acclaimed Falcon series but with the addition of a 1000m Laser Range Finder to make it easier to judge the distance to your target, even in complete darkness.
The combination of HIKMICRO’s highly sensitive 384x288px 12um SUB 20 NETD sensor and a high performance F1.0 lens ensures perfect detail recognition. The 25mm focal length offers a wide field of view with 2.5x base magnification to help with fast scanning. Capable of detecting the smallest details like animal hair, subtle physical characteristics and information like branches and leaves. The Condor delivers a detailed picture of your surroundings and heat sources, even in the most challenging weather conditions.
Utilising an all-new magnesium alloy chassis with ergonomic grip and profiled buttons, the Condor is comfortable and intuitive to use from the first time you pick it up. It is compact in size and can be comfortably be used in one hand and slips easily into a pocket. Powered by a single 18650 battery which delivers 4.5 hours of run time, the three batteries supplied in the box allow up to 13.5 hours of continuous use.
The Condor is controlled by the latest HIKMICRO software which includes advanced algorithm options including Image Pro and Zoom Pro which can be used to optimise the sharpness of the image.
The Condor also boasts all of the software features found in other HIK products including a choice of 4 colour pallets and access to the HIKMICRO Sight app which allows you to stream, control and record from your thermal monocular. The built in memory also allows you to save images and videos directly onto the monocular.
MAIN

• Sensor:- 384×288px @ 12µm
• Objective Lens (Focal Length):- 25mm
• Detection Range (Human 1.8 x 0.5m):- 1200m

SENSOR

• Type:- "VOx Uncooled Focal Plane Arrays "
• Resolution, pixels:- 384×288px
• Pixel pitch, µm:- 12µm
• Frame rate, Hz:- 50 Hz
• NETD:- <20mK

THERMAL OPTICS

• Objective lens:- F1.0
• Magnification:- 2.5x - 20x
• Magnification (Digital):- 1x, 2x, 4x, 8x
• Field of view:- 10.53°× 7.9°

LASER RANGEFINDER

• LRF Fitted:- Yes
• Maximum range:- 1000m
• Measurement accuracy:- ± 1m

DISPLAY

• Type:- 9.9mm, OLED
• Resolution, Pixels:- 1024 ×768
• Colour Palettes:- White Hot, Black Hot, Red Hot, Fusion

Additional features

• Image Pro:- YES
• Zoom Pro:- YES
• Record Video:- YES
• Capture pictures:- YES
• Audio recording:- YES
• Standby mode:- YES
• Picture in Picture:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

Environmental

• Degree of protection, IP code:- IP67
• Dust protection:- Protected against dust ingress
• Water protection:- Protected against temporary submersion in water
• Operating temperature range:- -30 °C to 55 °C

WEIGHT & SIZE

• Dimensions, mm:- 180mm x 52mm x 85mm
• Weight, kg:- 0.38 kg

POWER SUPPLY

• "Operating time on battery (WiFi & Hot tracking disabled)":- 4.5 hours
• Charging interface:- Removable 18650 battery

Warranty Period:- 3 Years

• 640 x 512 resolution with 12 um detector
• High sensitivity thermal module NETD < 20 mK (25oC, F# = 1.0)
• Dual FOV of 35 mm (F0.9) & 60 mm (F1.1) objective lenses
• 1024 x 768 resolution 0.39-inch OLED display
• Up to 6.5 hours of continuous operation
• Replaceable and rechargeable Li-ion battery packs
• High shock resistance up to 1000g/0.4ms
• Detection range up to 3000m

Equipped with a 640 thermal detector, a 35 MM F0.95 and a 60mm F1.1 lens given a wide FOV at 22 m and a magnification starting at 1.8x, HIKMICRO THUNDER ZOOM 2.0 is perfect for long-range up to 3000 m. With an extended operation time, whether in forest or in field. THUNDER ZOOM 2.0 can be you helpful companion
Feature

• 640 x 512 resolution with 12 um detector
• High sensitivity thermal module NETD < 20 mK (25oC, F# = 1.0)
• Dual FOV of 35 mm (F0.9) & 60 mm (F1.1) objective lenses
• 1024 x 768 resolution 0.39-inch OLED display
• Up to 6.5 hours of continuous operation
• Replaceable and rechargeable Li-ion battery packs
• High shock resistance up to 1000g/0.4ms
• Detection range up to 3000m

• 384 x 288 resolution with 12 um detector
• Hugh sensitivity thermal module NETD < 20 mK (25oC, F# = 1.0)
• Dual FOV of 25 mm (F0.8) & 50 mm (F1.0) objective lenses
• 1024 x 768 resolution 0.39-inch OLED display
• Up to 6.5 hours of continuous operation
• Replaceable and rechargeable Li-ion battery packs
• High shock resistance up to 1000g/0.4ms
• Detection range up to 2600m

With a 2.2x to 34.6x large magnification realised by the 384 detector @20 mk. HIKMICRO THUNDER ZOOM 2.0 is the perfect match for both wooded and open field areas. Besides, a F0.8 large aperture can strengthen your viewing ability of objects an extended operation time can guarantee a non-stop game.
Features

• 384 x 288 resolution with 12 um detector
• Hugh sensitivity thermal module NETD < 20 mK (25oC, F# = 1.0)
• Dual FOV of 25 mm (F0.8) & 50 mm (F1.0) objective lenses
• 1024 x 768 resolution 0.39-inch OLED display
• Up to 6.5 hours of continuous operation
• Replaceable and rechargeable Li-ion battery packs
• High shock resistance up to 1000g/0.4ms
• Detection range up to 2600m

Ultra Clear Image. Impressive Detail Recognition. Extremely high thermal sensitivity, NETD<20mK.

Super large aperture f/0.9 lens, 19% improvement. Image Pro, enhanced self-developed image processing algorithm.

Ergonomic cylindrical shape design for better operation experience. Replaceable and Rechargeable High Capacity Battery, Not-stop Observation

The higher sensitivity in combination with high definition sensor and larger aperture optics provides the best quality, most detailed&high-contrast, informative image in all weather conditions. Equipped with 12μm high-end thermal sensor and up to 640x512 pixel resolution offer an excellent temperature resolution to ensure the thermal image significantly sharp and richly contrasted. With a high-performance aspheric germanium lens, the super large aperture f/0.9 offers better temperature radiation capturing capability. Compared with the f/1.0 aperture, the capturing of temperature radiation level is increased by 19%. The larger the aperture is, the more infrared radiation can be captured, and the image will be much clearer.

• Sensor: 640 x 512px @ 12µm
• Objective Lens: 50 mm / F1.0
• Detection Range (Human 1.8 x 0.5m): 2600m
• Magnification Riflescope: 2.5x

The all new Thunder 2.0 from HIKMICRO builds on the success of the original Thunder Pro with an updated, ergonomic design and industry leading SUB 20mK NETD thermal sensor that delivers the ultimate image detail.
The Thunder 2.0 chassis has been completely redesigned from the ground up and incorporates many new features including the removable HIKMICRO Li-ion battery pack which delivers up to 6.5 hours of runtime and can be conveniently recharged away from the gun.
The Thunder 2.0 shares the sensor with the industry leading Falcon FQ50 monocular, boasting a highly detailed 640px resolution with SUB 20mK NETD, the thunder 2.0 is able to detect very small temperature differences, allowing it to build an incredibly detailed image. This ensures that you can confidently identify not only the heat source but build an accurate understanding of the backdrop before you take the shot.
The focus system has also been completely redesigned with a new dial system located on the top of the scope which is ergonomic to use and allows precise adjustment, delivering the best possible image while in use.
The Thunder 2.0 is loaded with HIKMICRO’s powerful software to boost your hunting experience - including one shot zero, picture in picture, recoil activated recording and access to the HIKMICRO Sight app which allow you to stream and control your scope from your phone.
IN THE BOX? HIKMICRO Thunder 2.0 HM-TQ50 2.6x 50mm 20mK 640x512px 12µm Smart Thermal Weapon Scope with Rail.
FEATURES
Extremely High Thermal Sensitivity:

• 12µm pixel interval
• F1.0 aperture

Advanced Appearance Design:

• Focus knob design
• Magnesium alloy design
• M52*0.75 thread (only for clip-on version)

Software Revolution:

• Brand new UI quick menu activated
• Brightness and tone adjustable
• Recoil-activation and audio recording
• Automatic calibration countdown

Powerful Battery Pack:

• Up to 10h operating time
• Extra charging method
• Excellent performance under low-temperature
• Replaceable and rechargeable high capacity power pack.

SPECS
MAIN

• Sensor: 640 x 512px @ 12µm
• Objective Lens: 50 mm / F1.0
• Detection Range (Human 1.8 x 0.5m): 2600m
• Magnification Riflescope: 2.5x

SENSOR

• Resolution, pixels: 640 x 512 px
• Pixel pitch, µm: 12µm
• Frame rate, Hz: 50 Hz
• NETD: <20mK

OPTICS

• Objective lens: F1.0
• Focal Length: 50mm
• Focus type: Dial focus
• Magnification (Optical): 2.6x
• Magnification (Digital): 1x, 2x, 4x, 8x
• Min Focusing distance: 10m
• Field of view: 8.78° × 7.03°

DISPLAY

• Type: 9.9mm OLED
• Resolution, Pixels: 1024 × 768
• Exit Pupil: 6mm
• Eye Relief: 45mm
• Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
• Picture-in-Picture: Yes

VIDEO RECORDER

• Video recording: Yes
• Picture snapshot: Yes
• Build in memory, Gb: 16 Gb

ADDITIONAL FEATURES

• Hot Tracking: YES
• WiFI hot spot: YES
• Recoil activated recording: YES
• Audio recording: YES
• HIKMICRO Connect App support: YES

ENVIRONMENTAL

• Degree of protection, IP code: IP67
• Water protection: Protected against temporary submersion in water
• Operating temperature range: -30 °C to 55 °C

WEIGHT & SIZE

• Dimensions, mm: 230 mm × 73 mm × 68 mm
• Weight, kg: 0.53 kg

POWER SUPPLY

• Operating time on battery (WiFi & Hot tracking disabled): 6.5 Hours continuous running
• Charging interface: External Charger
• Battery type: Removable & rechargable Li-ion battery pack

• Sensor resolution: 2560 x 1440px
• Frame rate, Hz: 25 Hz
• Focal Length: 32mm
• Minimum Focus Distance: 3m
• Field of view: 9.9° × 7.5°
• Aperture: F1.2
• Magnification: 1x
• Full colour day mode: Yes
• Black & White night mode: Yes
• Detection Distance (with inbuilt IR): 400m

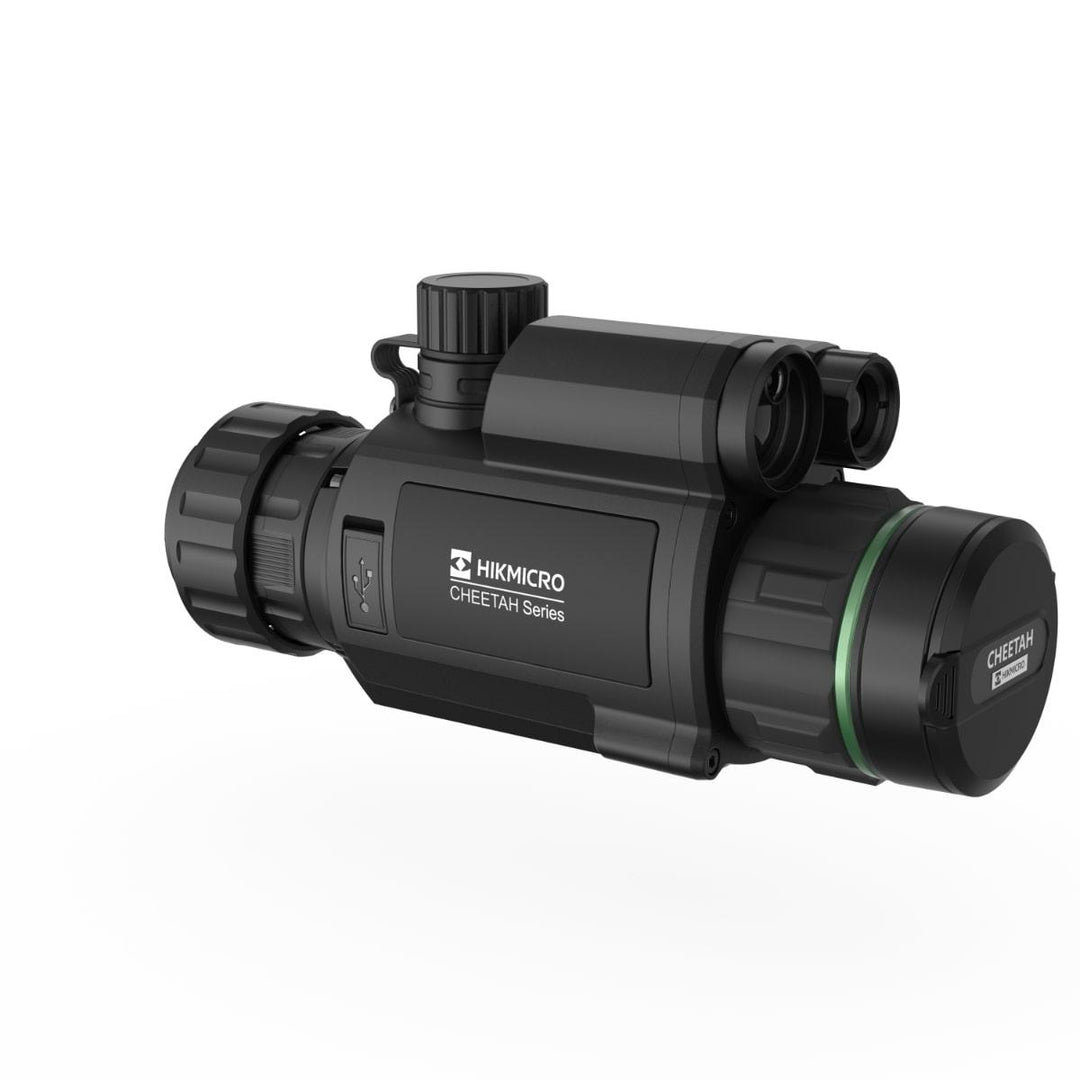

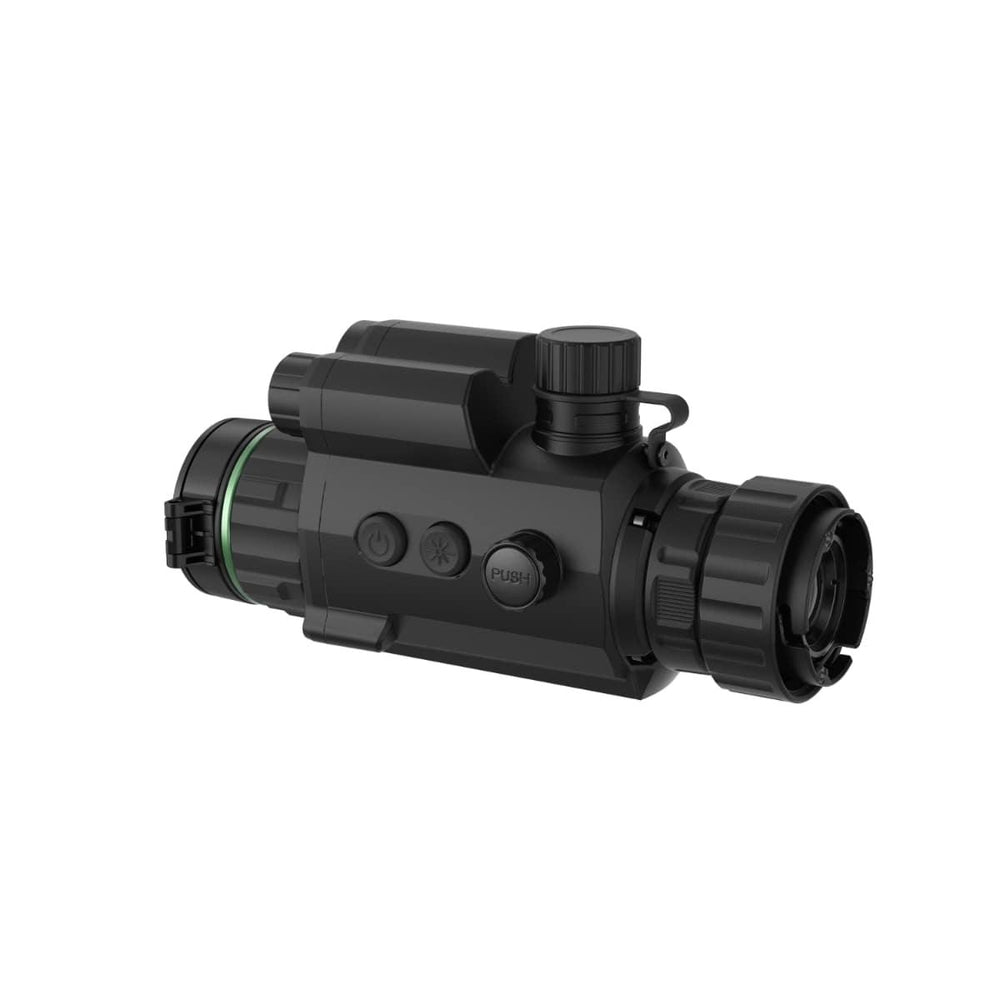

The Cheetah is a front-mounted digital night vision add-on that allows you to convert your conventional optical scope into a high-performance night vision riflescope. The Cheetah provides the perfect solution for shooters who want to maintain the uncompromising daytime performance of their optical scopes and then quickly convert to night vision for vermin control.
The Cheetah is capable of outstanding nighttime performance, drawing on all of HIKMICRO’s expertise in sensor technology and software design. The inbuilt IR delivers up to 400m of detection range in total darkness and delivers a crisp image to the HD OLED display.
The supplied adaptor clamps to the objective bell of your optical scope you create a stable and repeatable mounting point to quickly attach and remove the Cheetah unit.
IN THE BOX? HIKMICRO HM-C32F-R Cheetah Night vision Front Clip-On (w/40A, 50A or 60A Scope Adaptor).
SPECS
MAIN

• Sensor resolution: 2560 x 1440px
• Frame rate, Hz: 25 Hz
• Focal Length: 32mm
• Minimum Focus Distance: 3m
• Field of view: 9.9° × 7.5°
• Aperture: F1.2
• Magnification: 1x
• Full colour day mode: Yes
• Black & White night mode: Yes
• Detection Distance (with inbuilt IR): 400m

Display

• Type: 12.5mm OLED
• Resolution: 1920 x 1080px
• Image Modes: Day, Night, Auto, Defog
• Exit Pupil: 22 mm
• Eye Relief: 10 mm

Laser Range Finder

• Max. Measuring Distance: N/A
• Measurement Accuracy: N/A
• Safety Class for Laser: N/A

System Features

• Magnification (Digital): 1x,
• One-Shot Zero: Yes
• Standby mode: Yes
• Picture-in-Picture: No
• Recoil-Activated recording: Yes
• Max Recoil: 750 g
• Reticle Options: N/A
• Zero Profiles: N/A
• Audio Recording: Yes
• Wi-Fi Connection: Yes
• HIKMICRO Sight App: Compatible
• Storage: Built in 64 GB

Power Supply

• Battery: 1x Replacable 18650
• Battery run time: 5.5 Hrs (Continuous running)
• Battery Capacity display: Yes
• Recharging method: External Charger (Supplied)

General

• Working temperature: -30°C to 55°C
• Dimensions: 182mm x 70mm x 87mm
• Weight: 465g (Without eyepiece)
• Degree of protection, IP code: IP67
• Water protection: Protected against temporary submersion in water

Warranty Period

• Main Unit: 3 Years

• Sensor resolution: 2560 x 1440px
• Frame rate, Hz: 25 Hz
• Focal Length: 32mm
• Minimum Focus Distance: 3m
• Field of view: 8.1° x 6.1°
• Aperture: F1.2
• Magnification: 2.7x
• Full colour day mode: Yes
• Black & White night mode: Yes
• Detection Distance (with inbuilt IR): 400m

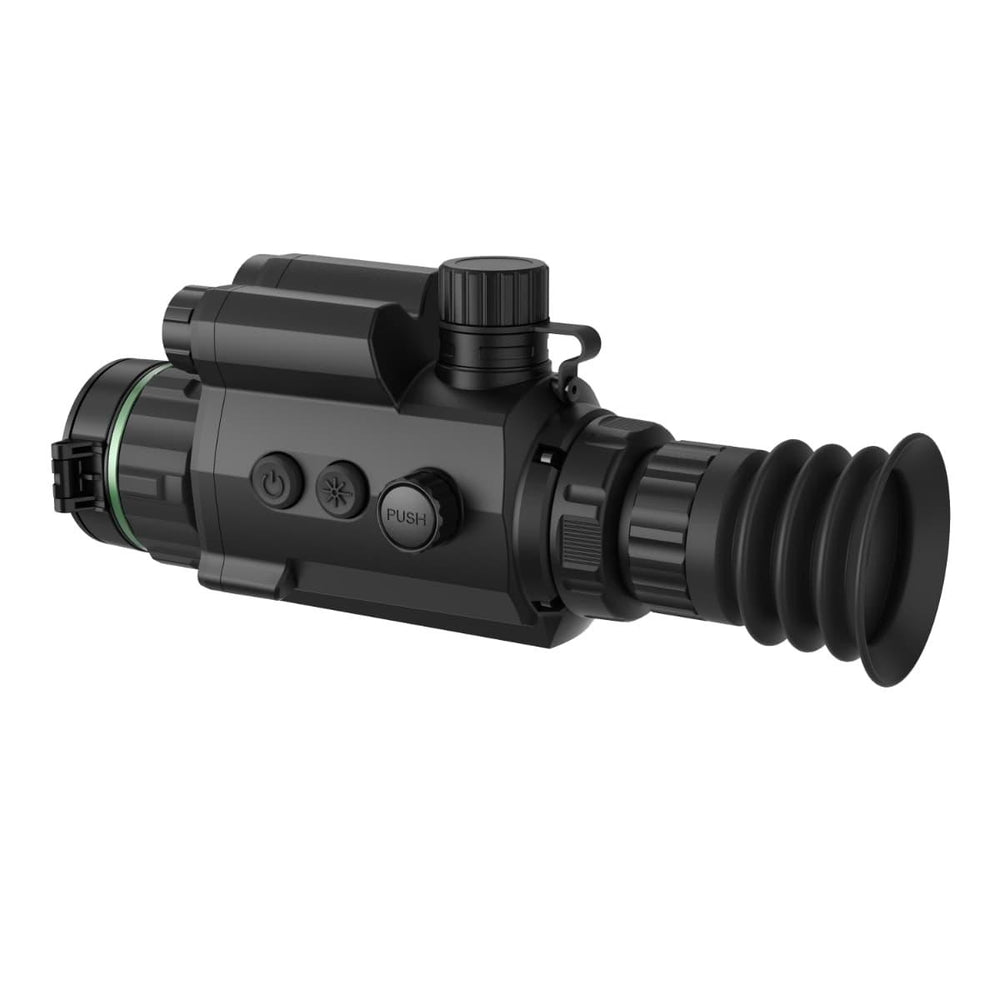

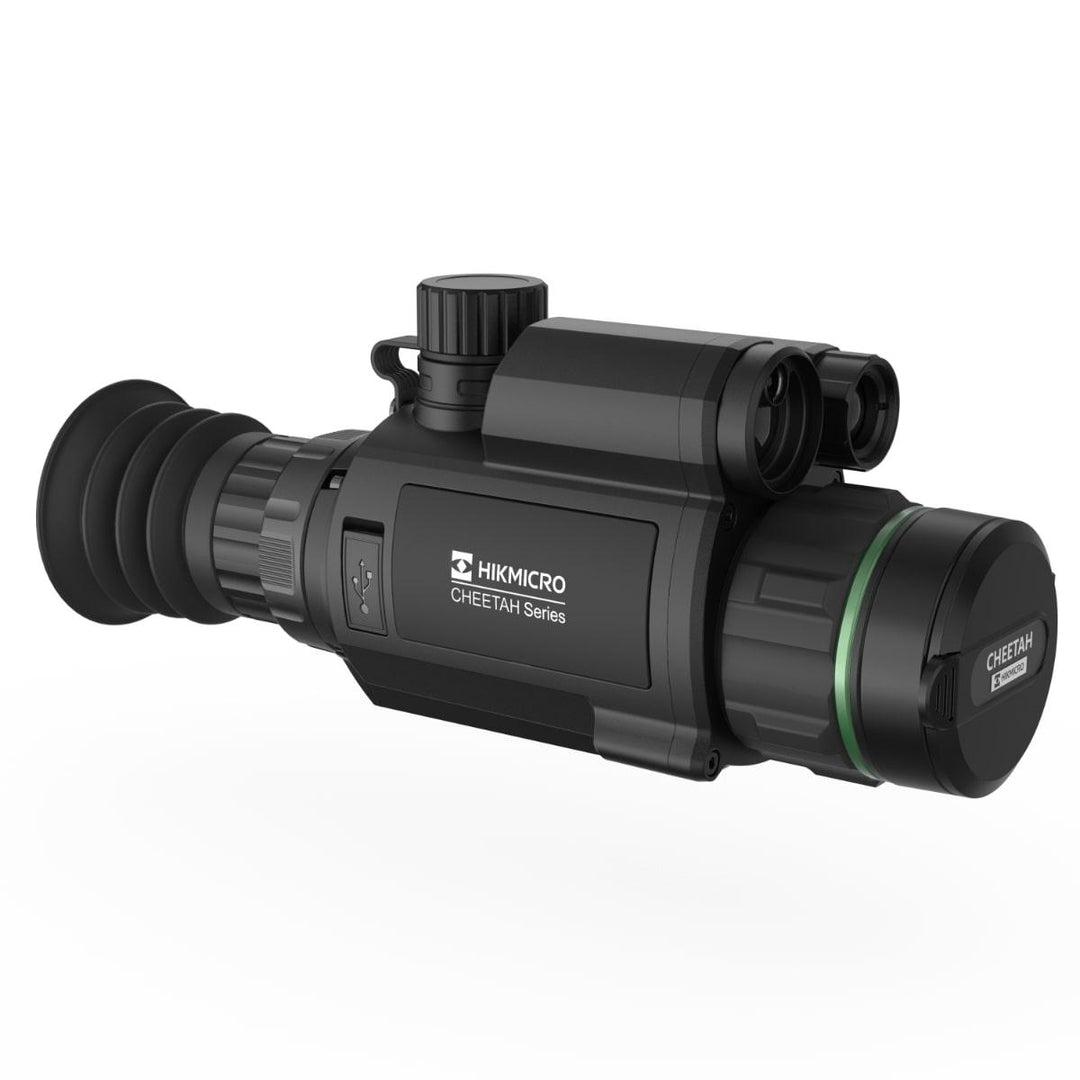

Welcome the Ultimate Air Rifle and Rimfire Day / Night vision scope The HikMicro Cheetah Riflescope is a high-performance dedicated digital day & night riflescope. Optimised to deliver a high-resolution full-colour image in the daytime before converting to night mode to give you a detailed black and white image with up to 400m of detection distance with the built-in IR illuminator. It also has the ability to bridge the gap between day and night seamlessly thanks to its CMOS sensor that provides a twilight full colour image like no other at Air rifle and Rimfire ranges. This doesnt mean the HikMicro Cheetah cannot be used on centerfires though, this rugged day / night rifle scope holds it own on the heaviest of recoiling rifles.
The Cheetah is capable of outstanding day and nighttime performance, drawing on all of HIKMICRO’s expertise in sensor technology and software design. The inbuilt IR delivers up to 400m of detection range in total darkness and delivers a crisp image to the HD OLED display. The 2.7x optical magnification is extended with up to 8x digital magnification, giving you a magnification range between 2.7 – 22x.
The Cheetah is supplied with a Picatinny rail so it is ready to attach to your rifle straight out of the box.
IN THE BOX? HIKMICRO HM-C32F-S Cheetah Night Vision Rifle Scope.
SPECS MAIN

• Sensor resolution: 2560 x 1440px
• Frame rate, Hz: 25 Hz
• Focal Length: 32mm
• Minimum Focus Distance: 3m
• Field of view: 8.1° x 6.1°
• Aperture: F1.2
• Magnification: 2.7x
• Full colour day mode: Yes
• Black & White night mode: Yes
• Detection Distance (with inbuilt IR): 400m

Display

• Type: 12.5mm OLED
• Resolution: 1920 x 1080px
• Image Modes: Day, Night, Auto, Defog
• Exit Pupil: 6 mm
• Eye Relief: 45 mm

Laser Range Finder

• Max. Measuring Distance: N/A
• Measurement Accuracy: N/A
• Safety Class for Laser: N/A

System Features:

• Magnification (Digital): 1x, 2x, 4x, 8x
• One-Shot Zero: Yes
• Standby mode: Yes
• Picture-in-Picture: Yes
• Recoil-Activated recording: Yes
• Max Recoil: 750 g
• Reticle Options: 5 Reticle Options
• Zero Profiles: 5 Zero Profiles
• Audio Recording: Yes
• Wi-Fi Connection: Yes
• HIKMICRO Sight App: Compatible
• Storage: Built in 64 GB

Power Supply

• Battery: 1x Replacable 18650
• Battery run time: 5.5 Hrs (Continuous running)
• Battery Capacity display: Yes
• Recharging method: External Charger (Supplied)

General

• Working temperature: -30°C to 55°C
• Dimensions: 182mm x 70mm x 87mm
• Weight: 465g (Without eyepiece)
• Degree of protection, IP code: IP67
• Water protection: Protected against temporary submersion in water

Warranty Period

• Main Unit: 3 Years

• Sensor resolution: 2560 x 1440px
• Frame rate, Hz: 25 Hz
• Focal Length: 32mm
• Minimum Focus Distance: 3m
• Field of view: 9.9° × 7.5°
• Aperture: F1.2
• Magnification: 1x
• Full colour day mode: Yes
• Black & White night mode: Yes
• Detection Distance (with inbuilt IR): 400m

The Cheetah is a front-mounted digital night vision add-on that allows you to convert your conventional optical scope into a high-performance night vision riflescope. The Cheetah provides the perfect solution for shooters who want to maintain the uncompromising daytime performance of their optical scopes and then quickly convert to night vision for vermin control. Now with the added advantage of a 1000m laser range finder allowing you to accurately judge distances while shooting in the day or at night.
The Cheetah is capable of outstanding nighttime performance, drawing on all of HIKMICRO’s expertise in sensor technology and software design. The inbuilt IR delivers up to 400m of detection range in total darkness and delivers a crisp image to the HD OLED display.
The supplied adaptor clamps to the objective bell of your optical scope you create a stable and repeatable mounting point to quickly attach and remove the Cheetah unit.
IN THE BOX? HIKMICRO HM-C32F Cheetah LRF Night vision Front Clip-On (w/40mm, 50mm or 60mm Scope Adaptor).
SPECS
MAIN

• Sensor resolution: 2560 x 1440px
• Frame rate, Hz: 25 Hz
• Focal Length: 32mm
• Minimum Focus Distance: 3m
• Field of view: 9.9° × 7.5°
• Aperture: F1.2
• Magnification: 1x
• Full colour day mode: Yes
• Black & White night mode: Yes
• Detection Distance (with inbuilt IR): 400m

Display

• Type: 12.5mm OLED
• Resolution: 1920 x 1080px
• Image Modes: Day, Night, Auto, Defog
• Exit Pupil: 22 mm
• Eye Relief: 10 mm

Laser Range Finder

• Max. Measuring Distance: 1000m
• Safety Class for Laser: Class 1

System Features

• Magnification (Digital): 1x,
• One-Shot Zero: Yes
• Standby mode: Yes
• Picture-in-Picture: No
• Recoil-Activated recording: Yes
• Max Recoil: 750 g
• Reticle Options: N/A
• Zero Profiles: N/A
• Audio Recording: Yes
• Wi-Fi Connection: Yes
• HIKMICRO Sight App: Compatible
• Storage: Built in 64 GB

Power Supply

• Battery: 1x Replacable 18650
• Battery run time: 5.5 Hrs (Continuous running)
• Battery Capacity display: Yes
• Recharging method: External Charger (Supplied)

General

• Working temperature: -30°C to 55°C
• Dimensions: 182mm x 70mm x 87mm
• Weight: 465g (Without eyepiece)
• Degree of protection, IP code: IP67
• Water protection: Protected against temporary submersion in water

Warranty Period

• Main Unit: 3 Years

• Ultra-long 2600m detection distance.
• Focusable lens.
• 64GB internal memory.
• IP67 rated – Water & Dustproof.
• One-shot zero.

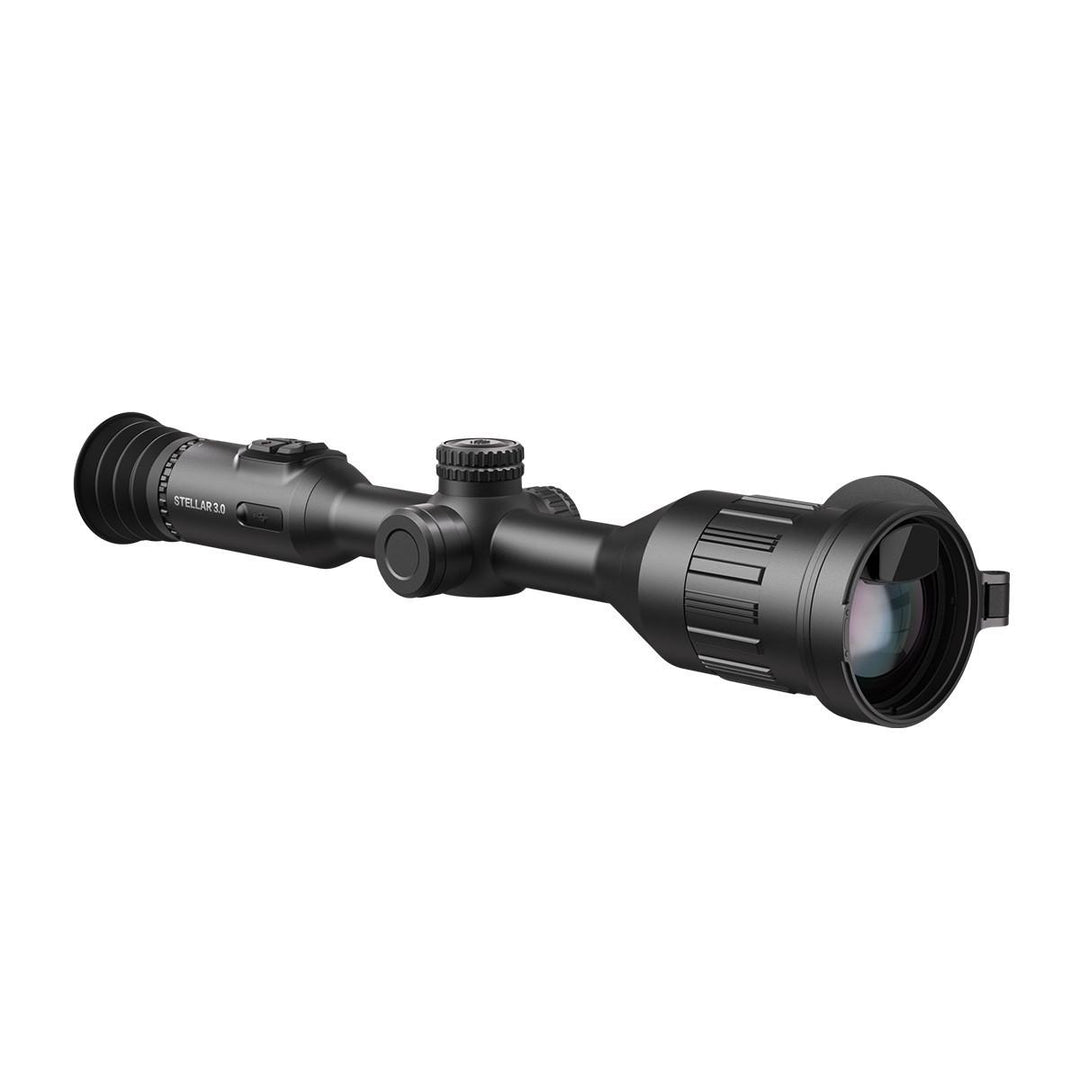

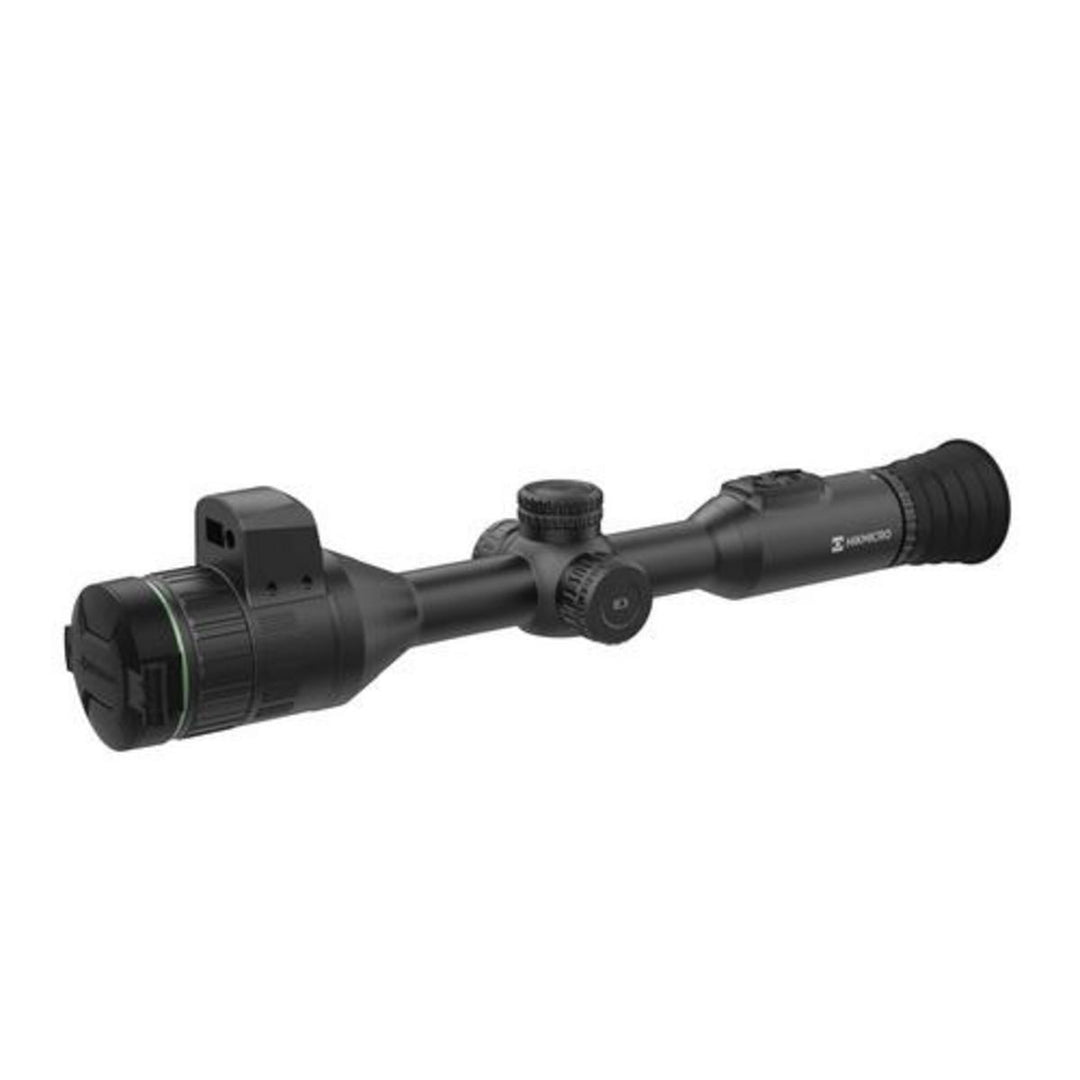

The range-topping Stellar Pro Thermal 50mm Rifle Scope delivers the renowned, high-quality HIKMICRO Thermal image in a traditional Rifle Scope chassis for the very, first time.

The Stellar Pro has been developed with a sleek, ergonomic design to put all of the major controls within easy reach. The innovative jog dial makes it easy to adjust the magnification and access the menu – while the three buttons on the eyepiece provide the user with access to key features such as video recording and standby mode.

The Stellar Pro uses a conventional 30mm tube Rifle Scope chassis allowing you to attach it to your Rifle using standard scope rings. This makes it easy to mount and achieve the perfect eye relief while also maintaining the traditional appearance of your Rifle.

At the heart of the Stellar Pro 50mm is the HIKMICRO 640x512px Thermal sensor with sub-35mk NETD. This pairs with the high quality 50mm lens system to deliver the ultimate high magnification and detailed image with 2.3x magnification and up to 2600m detection distance. In addition to the 2.3x base magnification, the Stellar offers up to 8x digital magnification providing the Scope with a magnification range from 2.3 – 18x. You also have 4 colour palettes to choose from; Black Hot, White Hot, Red Hot and Fusion.

Power is provided from two internal lithium batteries which provide an outstanding 13 hours of run time. There is an additional battery compartment that accepts a removable CR123A battery. This is designed as an emergency backup and provides an additional 1 hour of runtime.

The Stellar Pro also introduces recoil-activated recording so you can automatically capture the important parts of your shooting trips on video using the 64GB internal storage. The Stellar series is also fitted with a microphone to capture sound with your videos.

Zeroing has been simplified with the inclusion of freeze-frame and magnification during setup with your Rifle. Advanced software provides up to 5 zeroing profiles allowing you to use the Stellar on multiple Rifles.

Under the cap that traditionally houses the windage adjustment, you will find a USB-C port that allows you to transfer data and recharge the Scope. This also allows you to power the Stellar from an external USB power bank.

Use the inbuilt Wi-Fi to connect to the HIKMICRO Sight app and stream, record and control the Stellar from your phone, tablet or another mobile device. You can stream in real-time to share your hunting experience with a friend. The app also gives you access to all of the major controls like colour palettes, magnification, brightness and contrast. This makes it very easy for the user to configure the Stellar to match their preferred Thermal image.

• Up to 13hrs runtime
• Ultra-long 1800m detection distance.
• 64GB internal memory.
• IP67 rated – Water & Dustproof.
• One-shot zero.

The Stellar Thermal 50mm Rifle Scope delivers the renowned, high-quality HIKMICRO Thermal image in a traditional Rifle Scope chassis for the very, first time.

The Stellar has been developed with a sleek, ergonomic design to put all of the major controls within easy reach. The innovative jog dial makes it easy to adjust the magnification and access the menu – while the three buttons on the eyepiece provide the user with access to key features such as video recording and standby mode.

The Stellar uses a conventional 30mm tube Rifle Scope chassis allowing you to attach it to your Rifle using standard scope rings. This makes it easy to mount and achieve the perfect eye relief while also maintaining the traditional appearance of your Rifle.

At the heart of the Stellar 50mm is the HIKMICRO 384x288px Thermal sensor with sub-35mk NETD. This pairs with the high quality 50mm lens system to deliver a highly detailed image with 3.8x magnification and up to 2600m detection distance. In addition to the 3.8x base magnification, the Stellar offers up to 8x digital magnification providing the Scope with a magnification range from 3.8 – 30x. You also have 4 colour palettes to choose from; Black Hot, White Hot, Red Hot and Fusion.

Power is provided from two internal lithium batteries which provide an outstanding 15 hours of run time. There is an additional battery compartment that accepts a removable CR123A battery. This is designed as an emergency backup and provides an additional 1 hour of runtime.

The Stellar also introduces recoil-activated recording so you can automatically capture the important parts of your shooting trips on video using the 64GB internal storage. The Stellar series is also fitted with a microphone to capture sound with your videos.

Zeroing has been simplified with the inclusion of freeze-frame and magnification during setup with your Rifle. Advanced software provides up to 5 zeroing profiles allowing you to use the Stellar on multiple Rifles.

Under the cap that traditionally houses the windage adjustment, you will find a USB-C port that allows you to transfer data and recharge the Scope. This also allows you to power the Stellar from an external USB power bank.

Use the inbuilt Wi-Fi to connect to the HIKMICRO Sight app and stream, record and control the Stellar from your phone, tablet or another mobile device. You can stream in real-time to share your hunting experience with a friend. The app also gives you access to all of the major controls like colour palettes, magnification, brightness and contrast. This makes it very easy for the user to configure the Stellar to match their preferred Thermal image.

• 1800m detection distance.
• Focusable lens.
• 64GB internal memory.
• IP67 rated – Water & Dustproof.
• One-shot zero.
