HIKMICRO

• 4G photos and video clips transmission
•  Up to 10MP images and 1080p video with audio Capturing
•  0.5s trigger speed
•  82 feet PIR detection range
•  Rich yet ease-to-use functions via HIKMICRO Sight App

HIKMICRO have developed the M15 trail camera to offer a high specification, 4G connected trail camera with image and video capture at an exceptional price. HIKMICRO are renowned for high performance night vision and low light technology and the M15 is no exception, offering high performance image and video capture in daylight and darkness.

The built-in 4G connection automatically broadcasts the captured images and video to the HIKMICRO SIGHT App on your smartphone. Boasting 10 megapixel image capture with 1080p video the M15 is capable of capturing high quality images and video in daylight and under complete darkness using the covert 940nm infrared LED array built into the camera.

The fast 0.5s trigger time ensures that you don’t miss any of the action while the comprehensive settings controlled from the HIKMICRO SIGHT App allow you to optimise the camera’s settings and minimise false activations.

Software features;

The M15 trail camera uses the same HIKMICRO SIGHT App to connect, receive images and adjust the settings of the camera as all the other thermal and night vision products in the HIKMICRO range: Connect, control and organise all of your digital images and video from all your HIKMICRO devices with a single app.

Within the HIKMICRO SIGHT App you can get alerts when the camera is activated, receive the images and videos captured by the trail camera and adjust the settings to match your requirements.

The M15 can capture images, videos or images and videos at the same time. Choose between 10 and 3 megapixel images and 1080p, 720p HD and WVGA video quality, with audio also recorded.

You can also adjust the PIR Sensor detection range and the IR intensity as well as accessing advanced options such as restricting the camera to only activate at certain times of the day, or schedule the camera to trigger and capture at a specific time.

Please note that an SD Card less than 32gb (not supplied) will be required for use with the M15 trail camera.

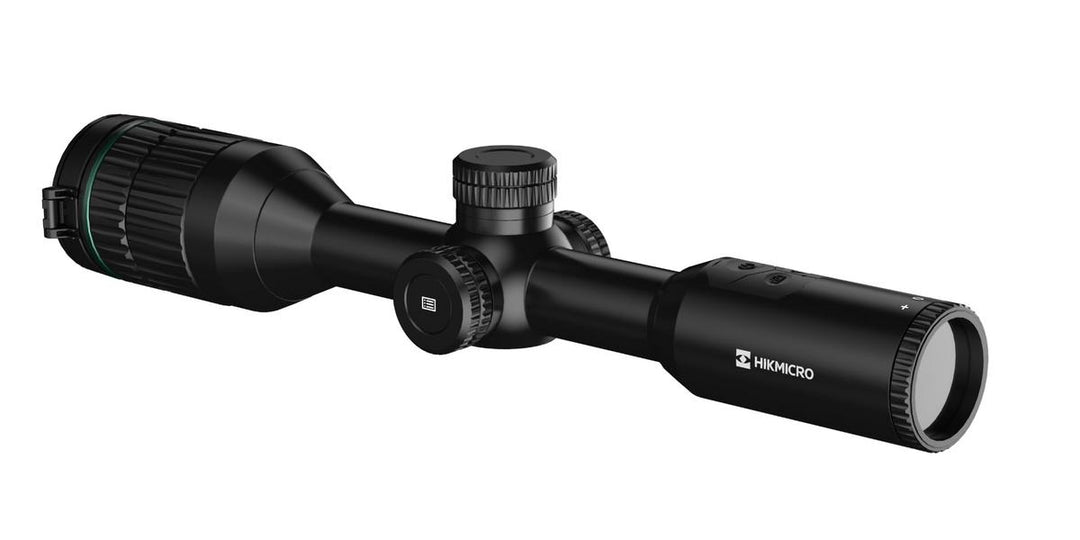

• 4K UHD Sensor - greater detail & magnification with reduced pixelation
• LRF version with 1000m laser range finder and ballistic calculation
• Improved, enlarged OLED viewfinder screen
• Recoil activated audio & video recording, built in 64Gb EMMC
• Up to 11 hours of continuous operation
• Internal rechargeable battery and spare battery in turret (18650)
• Updated control wheel design
• Aperture control to match ambient light

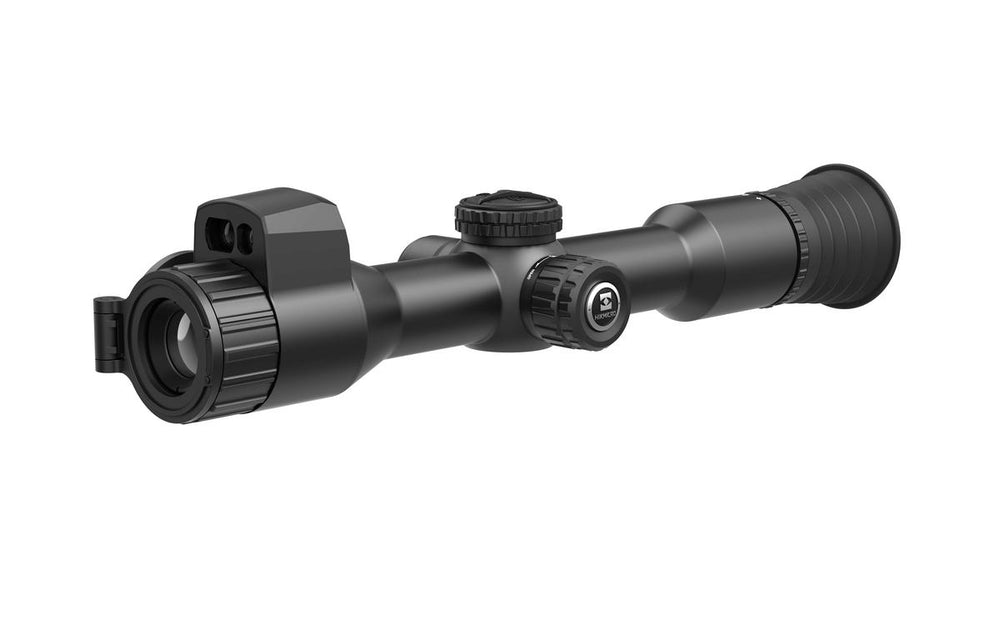

• 4K UHD Sensor: greater detail & magnification with reduced pixelation
• LRF version with 1000m laser range finder and ballistic calculation
• Improved, enlarged OLED viewfinder screen
• Recoil activated audio & video recording, built in 64Gb EMMC
• Up to 11 hours of continuous operation
• Internal rechargeable battery and spare battery in turret (18650)
• Updated control wheel design
• Aperture control to match ambient light

• 18650 Battery Charge allows you to charge multiple batteries at once to ensure your never cut short in the field.

18650 Battery Charge allows you to charge multiple batteries at once to ensure your never cut short in the field.

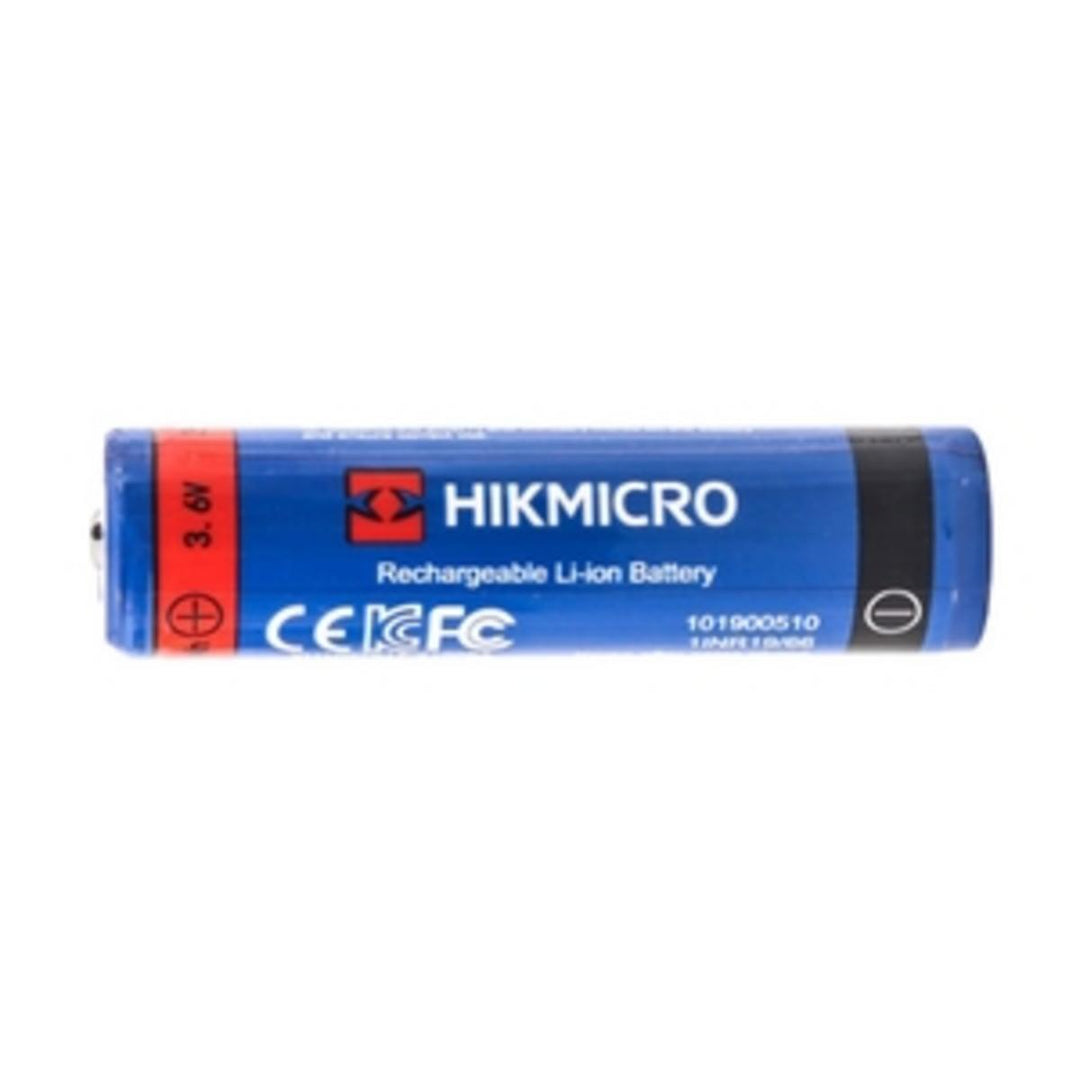

• Spare or replacement 18650 style battery.

Spare or replacement 18650 style battery.

• Sensor resolution:- 1920x 1080px
• Frame rate, Hz:- 50 Hz
• Focal Length:- 50mm
• Minimum Focus Distance:- 3m
• Field of view:- 7.7° × 5.8°
• Aperture:- F1.2
• Magnification:- 3.5x
• Full colour day mode:- Yes
• High performance twilight mode:- Yes
• Black & White night mode:- Yes

• Sensor resolution:- 1920x 1080px
• Frame rate, Hz:- 50 Hz
• Focal Length:- 50mm
• Minimum Focus Distance:- 3m
• Field of view:- 7.7° × 5.8°
• Aperture:- F1.2
• Magnification:- 3.5x
• Full colour day mode:- Yes
• High performance twilight mode:- Yes
• Black & White night mode:- Yes

• Type:- 9.9mm OLED
• Resolution:- 1024 x 768px
• Exit Pupil:- 5 mm
• Eye Relief:- 60mm

• Magnification (Digital):- 1x, 2x, 4x
• Image / Video resolution:- 1440 x 1080
• One-Shot Zero:- Yes
• Standby mode:- Yes
• Picture-in-Picture:- Yes
• Recoil-Activated recording:- Yes
• Max Recoil:- 1000g
• Reticle Options:- 5+
• Zero Profiles:- 5
• Audio Recording:- Yes
• Wi-Fi Connection:- Yes
• HIKMICRO Sight App:- Compatible
• Storage:- Built in 64 GB

• Internal Battery:- 2x Lithium batteries
• External Battery:- 1x Replacable CR123A
• Battery run time:- 12 Hrs (Continuous running)
• Battery Capacity display:- Yes
• Recharging method:- USB-C

• Working temperature:- -30°C to 55°C
• Dimensions:- 442 x 78mm
• Weight:- 1062g (Without eyepiece)
• Degree of protection, IP code:- IP67
• Water protection:- Protected against temporary submersion in water

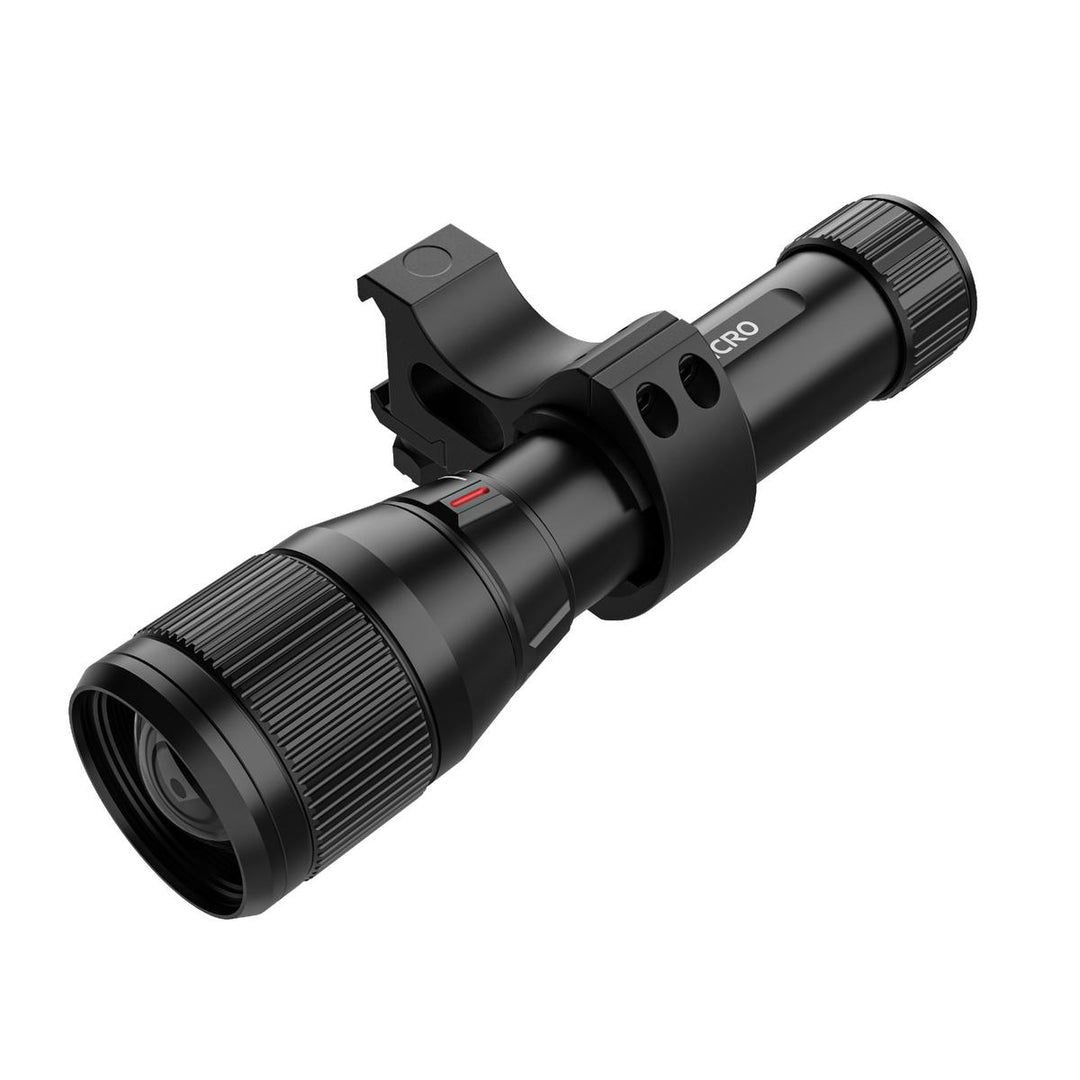

• 1920 × 1080 High-definition sensor
• Supports Day/Night mode
• Supports audio recording
• Supports recoil-activation recording
• Supports video recording and snapshot, built-in EMMC (64 GB)
• 1024 × 768 resolution 0.39-inch LED display
• Detection range up to 600 m

• 1920 × 1080 High-definition sensor
• Supports Day/Night mode
• Supports audio recording
• Supports recoil-activation recording
• Supports video recording and snapshot, built-in EMMC (64 GB)
• 1024 × 768 resolution 0.39-inch LED display
• Detection range up to 600 m

• Max Resolution: 1920x1080
• Frame Rate: 50Hz
• Lens (Focal Length): 50mm
• Min. Focusing Distance: 3m
• Field of View: 7.7 degrees x 5.8 degrees
• Aperture: F1.2
• Magnification: 3.5x

• Display: 1024x768, 0.39 inch, OLED
• Image Mode: Day, Night
• Exit Pupil: 5mm
• Eye Relief: 60mm
• Diopter (Range): -5D to 5D

• Digital Zoom: 1x, 2x, 4x
• Capture Resolution: 1440x1080
• Record Video: On-board video recording
• Standby Mode: Yes
• PIP: Yes
• Capture Snapshot: Yes
• Freeze Zeroing: Yes
• Recoil Activation Recording: Yes
• Record Video Resolution: 1440x1080
• Max. Recoil: 1000g
• Reticle: Yes
• Audio Recording: Yes
• Wi-Fi Hotspot: Yes, HIKMICRO Sight App
• Storage: Built-in EMMC (64GB)

• Battery Type: Two rechargeable Lithium batteries (internal)
• Battery Operating Time: 12 hours continuous running (@ 25 degrees Celcius, Wi-Fi off)
• Battery Capacity Display: Yes
• Anti-Reverse Battery Connection: Yes
• Overvoltage Protection: Yes
• Power Supply: 5 VDC/2A, USB Type-C interface, supports QC3.0 PLEASE NOTE: When purchasing further CR123A batteries for your unit , please ensure the voltage on the battery is no greater than 3.0V. This for your safety and those around you.

• Working Temperature: -30 to 55 degrees Celcius (-22 to 131 degrees Fahrenheit)
• Dimensions: 442mm x 78.1mm x 83.5mm
• Weight: 1062g without eyepiece and CR123A
• Protection Level: IP67

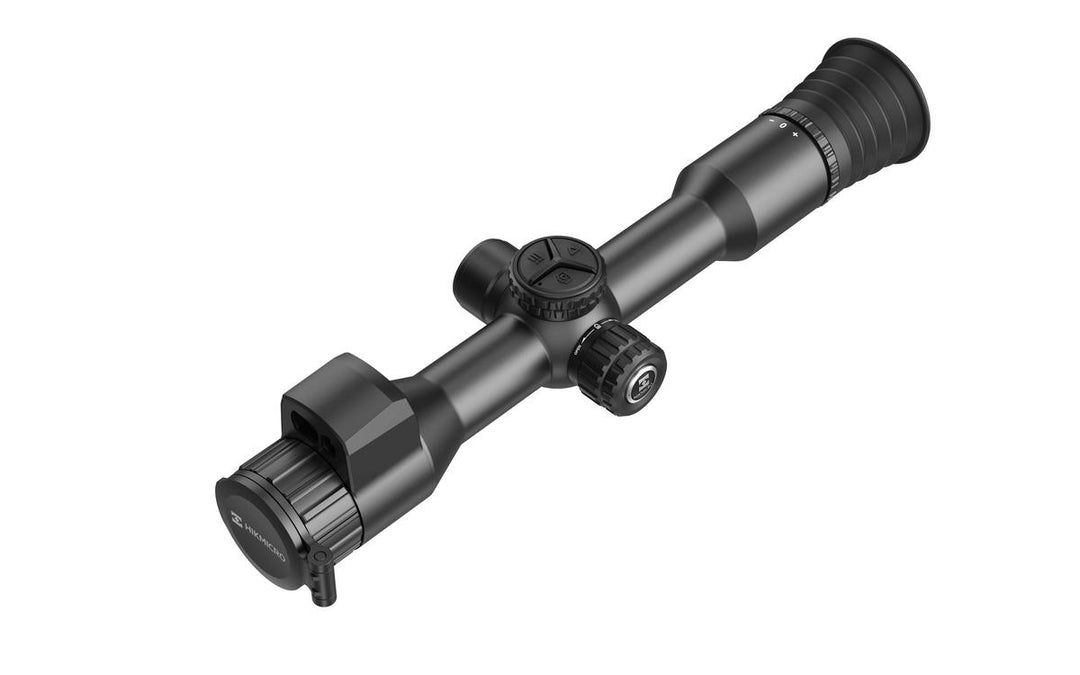

• 4K UHD Sensor: greater detail & magnification with reduced pixelation
• Improved, enlarged OLED viewfinder screen
• Recoil activated audio & video recording, built in 64Gb EMMC
• Up to 11 hours of continuous operation
• Internal rechargeable battery and spare battery in turret (18650)
• Updated control wheel design
• Aperture control to match ambient light

• 4K UHD Sensor: greater detail & magnification with reduced pixelation
• Improved, enlarged OLED viewfinder screen
• Recoil activated audio & video recording, built in 64Gb EMMC
• Up to 11 hours of continuous operation
• Internal rechargeable battery and spare battery in turret (18650)
• Updated control wheel design
• Aperture control to match ambient light

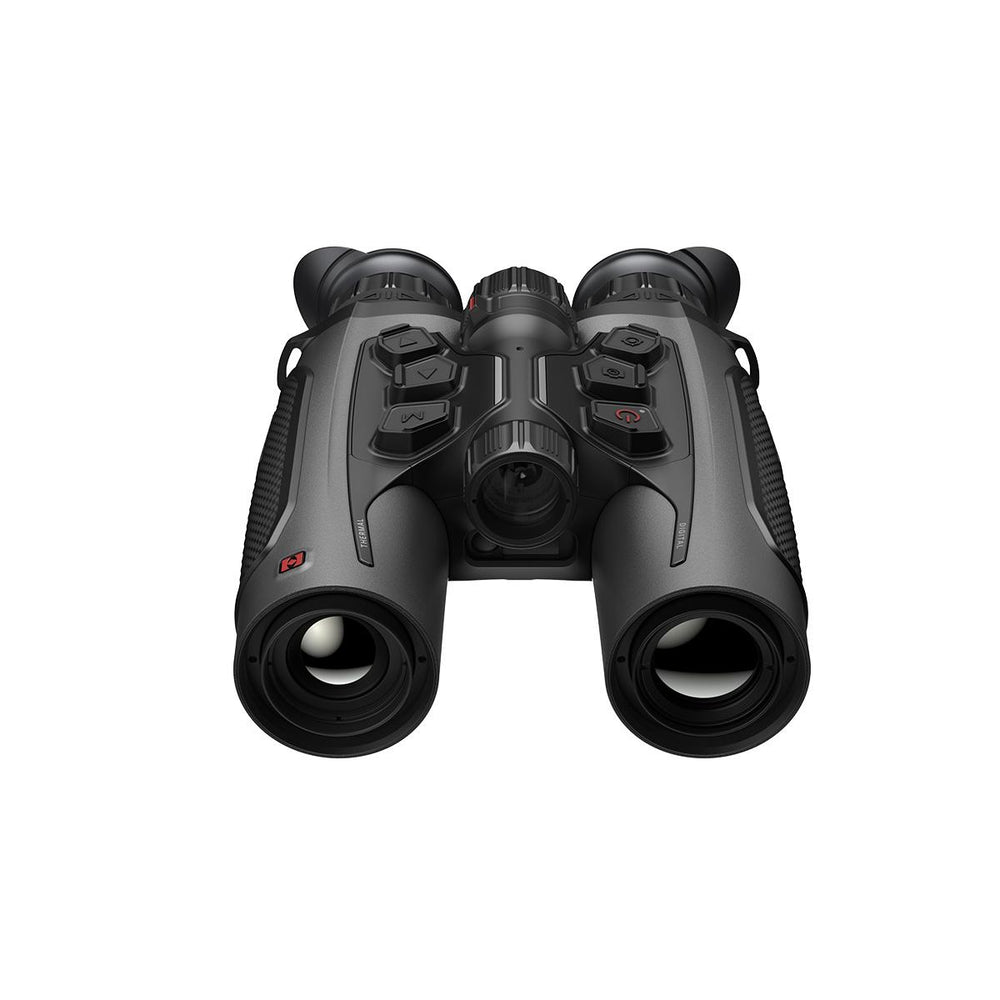

• Latest generation Sub 20mK NETD thermal sensor
• Full colour day & bw night camera
• 1000m laser range finder
• Solid magnesium alloy, waterproof & ergonomic chassis
• Removable 18650 batteries

• Latest generation Sub 20mK NETD thermal sensor
• Full colour day & bw night camera
• 1000m laser range finder
• Solid magnesium alloy, waterproof & ergonomic chassis
• Removable 18650 batteries

• Sensor:- 640x512px @ 12µm
• Objective Lens (Focal Length):- 35 mm
• Detection Distance:- 1800 m

• Type:- "VOx Uncooled Focal Plane Arrays "
• Resolution, pixels:- 640x512 PX
• Pixel pitch, µm :- 12µm
• Frame rate, Hz:- 50 Hz
• NETD:- <20mK

• Objective lens:- F1.0
• Focal Length:- 35mm
• Magnification:- 3.0x to 24x
• Min. Focusing Distance:- 3.5m
• Field of view:- 12.5° × 10.1° (H × V)°

• Image Sensor:- Progressive Scan CMOS
• Resolution:- 2560 x 1440px
• Focal Length:- 31mm
• Aperture:- F1.2
• Min. Focusing Distance:- 3m
• Magnification:- 2.9 to 23.2x
• Field of view:- 13.9° × 7.8° (H × V)°
• Smart IR:- Yes
• Viewing range in darkness:- 400m

• Max Measuring range:- 1000m
• Safety Class for laser:- Class 1
• Measurement accuracy:- ± 1m

• Type:- 12.5mm, OLED
• Resolution, Pixels:- 1920 x 1080
• Thermal Colour Palettes:- Black Hot, White Hot, Red Hot, Fusion
• Optical Colour Palettes:- Full colour Day time, Black and White Night time

• Build in memory, Gb:- 64 Gb
• Image Capture:- YES
• Video Record:- YES
• Audio recording:- YES

• Zoom Pro:- YES
• Standby Mode:- YES
• Picture in Picture:- YES
• GPS & Compass:- YES
• Image Pro Mode:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

• Degree of protection, IP code:- IP67
• Dust protection:- Protected against dust ingress
• Water protection:- Protected against temporary submersion in water
• Operating temperature range:- -30 °C to 55 °C

• Dimensions, mm:- 138 mm x 68 mm x 212 mm
• Interpupillary Adj.:- 60mm to 70mm
• Weight, kg:- 780 g

• Battery type:- 2x 18650 Removable battery
• "Operating time on battery (WiFi & Hot tracking disabled)":- 6 Hours continuous running
• Compatible with USB Powerbank:- YES
• Charging interface:- External charger (Supplied)

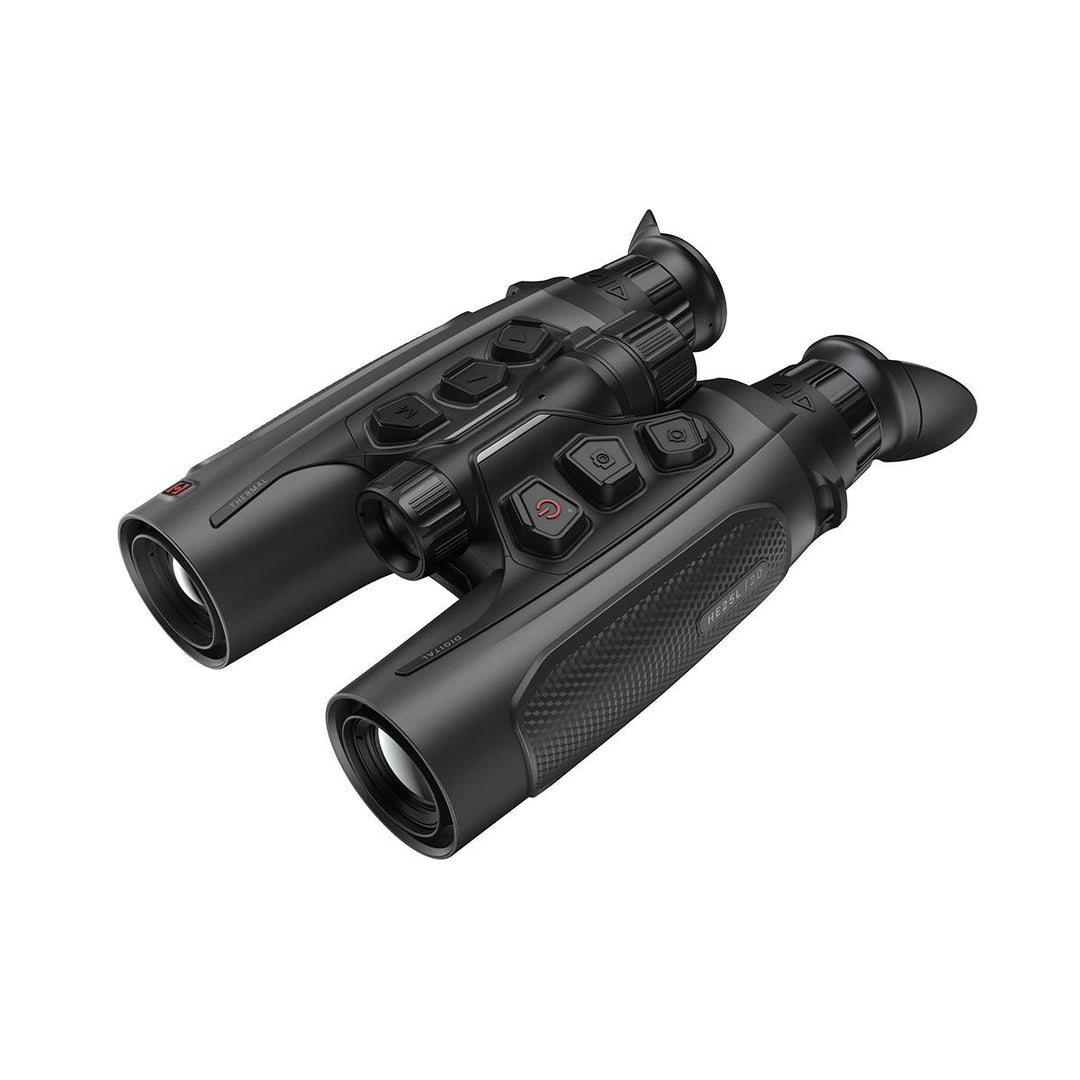

• High performance thermal spotting will detect the heat of birds and animals and reveal their location even when hidden to the naked eye by camouflage, shadows, foliage and difficult light and weather. Thermal spotting works day & night.
• The 4K digital optical channel adds a full colour ultra high resolution image in daylight, and a monochromatic image even in complete darkness.
• Zoom from the 5.5x base mag all the way to 22x – In optical mode the 4K sensor ensures that you never run out of resolution across a wide magnification range.
• The Habrok 4K digital optical channel in twilight is a particular stand-out, The digital system works extremely well in low light, well beyond the point that regular binoculars stop delivering an image. (and on, into complete darkness).
• Find, watch and enjoy wildlife in complete darkness thermal and night vision add another dimension to your wildlife observation.
• Powered by 18650 batteries With a run time of up to 8hrs from the two detachable batteries, you can enjoy extended trips into nature without fear of running out of power.
• The ability to record images, video and audio directly into the on-board memory, and play it back either in the device or to a phone or tablet nearby, means that even a fleeting glimpse of a bird or animal can be reviewed in detail for greatly improved identification potential.

• High performance thermal spotting will detect the heat of birds and animals and reveal their location even when hidden to the naked eye by camouflage, shadows, foliage and difficult light and weather. Thermal spotting works day & night.
• The 4K digital optical channel adds a full colour ultra high resolution image in daylight, and a monochromatic image even in complete darkness.
• Zoom from the 5.5x base mag all the way to 22x – In optical mode the 4K sensor ensures that you never run out of resolution across a wide magnification range.
• The Habrok 4K digital optical channel in twilight is a particular stand-out, The digital system works extremely well in low light, well beyond the point that regular binoculars stop delivering an image. (and on, into complete darkness).
• Find, watch and enjoy wildlife in complete darkness thermal and night vision add another dimension to your wildlife observation.
• Powered by 18650 batteries With a run time of up to 8hrs from the two detachable batteries, you can enjoy extended trips into nature without fear of running out of power.
• The ability to record images, video and audio directly into the on-board memory, and play it back either in the device or to a phone or tablet nearby, means that even a fleeting glimpse of a bird or animal can be reviewed in detail for greatly improved identification potential.

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 256 × 192
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 35 mK (@25°C), F# = 1.0
• Lens (Focal Length): 25 mm, F1.0
• Focus Mode: Focus Ring
• Detection Range: 1200 m
• Min. Focusing Distance: 3 m
• Magnification: 4.3x to 17.2x (4x)
• Field of View (H × V): 7.0° × 5.3°/12.2 m × 9.3 m @100m

• Image Sensor: 1.88’’ Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Focal Length: 60 mm, F2.2
• Min. Working Distance: 8 m
• Focus Mode: Focus Ring
• Magnification: 5.5x to 22.0x(4x)
• Field of View (H × V): 6.9°× 4.1°/12.0 m × 7.2 m @100 m
• Smart IR: Yes
• IR Illuminator Wavelength: 850 nm
• Viewing Range at Night: 400 m

• Display: 0.49 inch, OLED, 1920 ×1080
• Palettes: Thermal (Black Hot, White Hot, Red Hot, Fusion); Optical (Day, Night, Auto)
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 8 mm
• Eye Relief: 15 mm
• Diopter (Range): -5 D to +3 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, warm
• Contrast Adjustment: Yes
• Zoom Pro: Yes

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (64 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Digital Magnetic Compass: Yes
• GPS: Yes
• Local Album: Yes

• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: ≥ 8 h (25°C, with hotspot off)
• Type-C Power Supply: 5 VDC, 2 A
• Supports External Power Supply: Yes

• Protection Level: IP67
• Dimension: 138 mm × 68.2 mm × 223 mm (5.4" × 2.7" × 8.6")
• Working Temperature: -30°C to +55°C
• Weight: 795 g without batteries
• Interpupillary Adjustment Range: 60 mm to 74 mm
• Mounting Adapter: 1/4“-20-UNC

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Max. Measuring Range: 1000 m
• Measurement Accuracy: ±1 m
• Min. Measuring Range: 10 m

• 256 × 192 resolution @12 μm thermal detector
• High sensitivity thermal module NETD < 35 mK (@25°C, F# = 1.0)
• 25 mm, F1.0 lens with thermal detection range up to 1200 m
• 3840 × 2160 4K ultra high-resolution CMOS detector
• 60 mm, F2.2 digital lens with 5.5x to 22x digital zoom
• 1920 × 1080 resolution 0.49-inch OLED display
• Built-in 850 nm IR illuminator and Laser Rangefinder of 1000 m measuring distance
• 795 g lightweight, with a compact and ergonomic design

• Image Pro:- YES
• Zoom Pro:- YES
• Record Video:- YES
• Capture pictures:- YES
• Audio recording:- YES
• Standby mode:- YES
• Picture in Picture:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

• Sensor:- 384×288px @ 12µm
• Objective Lens (Focal Length):- 35mm
• Detection Range (Human 1.8 x 0.5m):- 1800m

• Type:- "VOx Uncooled Focal Plane Arrays "
• Resolution, pixels:- 384×288px
• Pixel pitch, µm:- 12µm
• Frame rate, Hz:- 50 Hz
• NETD:- <20mK

• Objective lens:- F1.0
• Magnification:- 3.5x - 28x
• Magnification (Digital):- 1x, 2x, 4x, 8x
• Field of view:- 7.5°x5.6°

• LRF Fitted:- Yes
• Maximum range:- 1000m
• Measurement accuracy:- ± 1m

• Type:- 9.9mm, OLED
• Resolution, Pixels:- 1024 ×768
• Colour Palettes:- White Hot, Black Hot, Red Hot, Fusion

• Image Pro:- YES
• Zoom Pro:- YES
• Record Video:- YES
• Capture pictures:- YES
• Audio recording:- YES
• Standby mode:- YES
• Picture in Picture:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

• Degree of protection, IP code:- IP67
• Dust protection:- Protected against dust ingress
• Water protection:- Protected against temporary submersion in water
• Operating temperature range:- -30 °C to 55 °C

• Dimensions, mm:- 184mm x 53mm x 87mm
• Weight, kg:- 0.4 kg

• "Operating time on battery (WiFi & Hot tracking disabled)":- 4.5 hours
• Charging interface:- Removable 18650 battery

• Sensor: 640x512px @ 12µm
• Objective Lens (Focal Length): 35 mm
• Detection Distance: 1800 m
• Type: VOx Uncooled Focal Plane Arrays
• Resolution, pixels: 640 x 512 px
• Pixel pitch, µm: 12µm
• Frame rate, Hz: 50 Hz
• NETD: <20mK

• HIKMICRO Falcon FQ35 Pro 35mm 640x512 12µm 20mk Hand Held Thermal Imager Monocular.
• USB-C Data Cable
• Micro USB Cable
• Dual 18650 Battery Charger
• Neck Strap
• Neoprene carry bag

• Sensor: 640x512px @ 12µm
• Objective Lens (Focal Length): 35 mm
• Detection Distance: 1800 m

• Type: VOx Uncooled Focal Plane Arrays
• Resolution, pixels: 640 x 512 px
• Pixel pitch, µm: 12µm
• Frame rate, Hz: 50 Hz
• NETD: <20mK

• Objective lens: F1.0
• Magnification (Optical): 1.8x
• Magnification (Digital): 1x, 2x, 4x, 8x
• Field of view: 12.54° × 10.0° (H × V)

• Type: 10 mm, OLED
• Resolution, Pixels: 1024 x 768
• Colour Palettes: Black Hot, White Hot, Red, Hot, Fusion

• Build in memory, Gb: 64 Gb
• Image Capture: Yes
• Video Record: Yes

• Image Pro Mode: YES
• Hot Tracking: YES
• WiFI hot spot: YES
• HIKMICRO Connect App support: YES

• Degree of Protection, IP code: IP67
• Dust Protection: Protected against dust ingress
• Water Protection: Protected against temporary submersion in water
• Operating Temperature Range: -30 °C to 55 °C

• Dimensions, mm: 187 mm × 58 mm × 65 mm
• Weight, kg: 0.5 kg

• Battery Type: 18650 Removable battery
• Operating time on battery (WiFi & Hot tracking disabled): 5 hours continuous running
• Charging Interface: External charger (Supplied)

• Main Unit: 3 Years

• Sensor resolution: 2560 x 1440px
• Frame rate, Hz: 25 Hz
• Focal Length: 32mm
• Minimum Focus Distance: 3m
• Field of view: 8.1° x 6.1°
• Aperture: F1.2
• Magnification: 2.7x
• Full colour day mode: Yes
• Black & White night mode: Yes
• Detection Distance (with inbuilt IR): 400m

• Sensor resolution: 2560 x 1440px
• Frame rate, Hz: 25 Hz
• Focal Length: 32mm
• Minimum Focus Distance: 3m
• Field of view: 8.1° x 6.1°
• Aperture: F1.2
• Magnification: 2.7x
• Full colour day mode: Yes
• Black & White night mode: Yes
• Detection Distance (with inbuilt IR): 400m

• Type: 12.5mm OLED
• Resolution: 1920 x 1080px
• Image Modes: Day, Night, Auto, Defog
• Exit Pupil: 6 mm
• Eye Relief: 45 mm

• Max. Measuring Distance: 1000m
• Safety Class for Laser: Class 1

• Magnification (Digital): 1x, 2x, 4x, 8x
• One-Shot Zero: Yes
• Standby mode: Yes
• Picture-in-Picture: Yes
• Recoil-Activated recording: Yes
• Max Recoil: 750 g
• Reticle Options: 5 Reticle Options
• Zero Profiles: 5 Zero Profiles
• Audio Recording: Yes
• Wi-Fi Connection: Yes
• HIKMICRO Sight App: Compatible
• Storage: Built in 64 GB

• Battery: 1x Replacable 18650
• Battery run time: 5.5 Hrs (Continuous running)
• Battery Capacity display: Yes
• Recharging method: External Charger (Supplied)

• Working temperature: -30°C to 55°C
• Dimensions: 182mm x 70mm x 87mm
• Weight: 465g (Without eyepiece)
• Degree of protection, IP code: IP67
• Water protection: Protected against temporary submersion in water

• Main Unit: 3 Years

• Output Voltage: 3.6V
• Capacity: 3.35Ah
• Battery Operating Time: Up to 5.5h
• IR Optical Power: Up to 850mw
• Irradiation Distance: Up to 200m

The compact and lightweight HIKMICRO IR Torch has been developed to provide the perfect level of IR illumination to boost the performance of the optical channel of your Gryphon Fusion Monocular.

When used in conjunction with the HIKMICRO Torch bracket you have a compact solution to transform your Gryphon Thermal Monocular into a Night Vision Spotter.

• The interchangeable lens system from HIK Micro attaches to the Thunder Thermal Module to your rifle scope and allows the unit to be used as a front clip on.

The interchangeable lens system from HIK Micro attaches to the Thunder Thermal Module to your rifle scope and allows the unit to be used as a front clip on. ONLY WORKS WITH GEN1

The HIK Micro scope Rail system attaches to the bottom of the Thunder Thermal Module

Allows you to securely mount the Thunder to the Picatinny rail on your rifle.

The HIK Micro scope Rail system attaches to the bottom of the Thunder Thermal Module and allows you to securely mount the Thunder to the Picatinny rail on your rifle.

• High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
• 384 × 288 resolution with 12μm detector
• 1024 × 768 resolution 0.39-inch OLED display
• Replaceable and rechargeable Li-ion battery
• 280 g lightweight, with a compact and ergonomic design
• Up to 6.5 hours of continuous operation

Introducing the new Lynx 2.0 19mm thermal monocular. Sharing the same design philosophy, robust build quality and high performance thermal sensors as the class leading Falcon and Condor monoculars, the Lynx 2.0 redefines expectations from entry level thermal products.

High performance thermal – At the core of the Lynx 2.0 19mm is HIKMICRO’s latest generation, 384px Sub 20 mK NETD sensor that pairs with the advanced, F1.0 lens to detect very small changes in temperature and deliver an incredibly detailed image, even in the most challenging conditions. The 15mm Focal length offers 1.8x base mag with up to 8x digital magnification giving you 1.8-14.4x magnification range.

Compact and powerful - Built on a robust magnesium-alloy chassis, the Lynx 2.0 has a distinctly premium feel from the first time you pick it up. The updated chassis design also features a removable 18650 battery delivering up to 6.5 hours of run time. The ergonomic buttons fall easily to hand and allow you to intuitively take control of the main features, even in complete darkness. The large OLED screen gives a great view of your surroundings while the soft eyecup prevents unwanted light spill.

Digital connectivity – The Lynx 2.0 is supplied with the latest HIKMICRO software which gives you fast access to commonly used options like brightness and contrast and allows you to add a PIP screen to your monocular. The Lynx 2.0 offers a choice of four thermal colour profiles, the ability to record pictures or video and WiFi to allow you to connect, stream and control from the HIKMICRO sight app.

The lower the NETD value, the better the imaging

Thermal imaging works by sensing tiny differences in temperature, and the more sensitive the sensor is to minute contrasts, the better and more clear the image in the viewfinder. Lynx 2.0’s sub 20mK NETD sensors capture the sharpest, most informative images, even in challenging conditions; this means that you can not just find the heat of people, animals and birds, but capture the detail of the surroundings to aid identification.

Convenience is king

The Lynx 2.0 has been redesigned to maximise convenience in every area. The size and weight, at under 175mm in length and under 300g with battery, combine with the rugged build and comfortable rounded shape to produce a powerful device that can easily be carried and used at all times. The new power system uses industry-standard rechargeable 18650 batteries for a continuous run-time of up to 6.5 hours, which can be renewed by a quick switch of the battery to a (supplied) spare. Lynx 2.0 also features a 3 second Fast Boot time, to easily keep pace with the action in the field.

Integrated phone or tablet hotspot

HIKMICRO’s Sight App links Lynx 2.0 to your phone or tablet, creating a second display and adding functionality: You can control the device via the app, view and share recorded images and video, share the thermal view with others in your group, and control and update the software settings.

The Lynx 2.0 is the perfect, versatile companion device for hunting, ecological survey, wildlife observation, search & rescue and security applications. The affordable price, high performance and robust, proven build make it a natural choice and it seems well set to take over the best-seller crown from its much-loved predecessor.

• Image Pro:- YES
• Zoom Pro:- YES
• Record Video:- YES
• Capture pictures:- YES
• Audio recording:- YES
• Standby mode:- YES
• Picture in Picture:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

• Sensor:- 640 x 512 @ 12µm
• Objective Lens (Focal Length):- 50mm
• Detection Range (Human 1.8 x 0.5m):- 2600m

• Type:- "VOx Uncooled Focal Plane Arrays "
• Resolution, pixels:- 640 x 512px
• Pixel pitch, µm :- 12µm
• Frame rate, Hz:- 50 Hz
• NETD:- <20mK

• Objective lens:- F1.0
• Magnification:- 3x - 24x
• Magnification (Digital):- 1x, 2x, 4x, 8x
• Field of view:- 8.7°× 7.0°

• LRF Fitted:- Yes
• Maximum range:- 1000m
• Measurement accuracy:- ± 1m

• Type:- 9.9mm, OLED
• Resolution, Pixels:- 1024 ×768
• Colour Palettes:- White Hot, Black Hot, Red Hot, Fusion

• Image Pro:- YES
• Zoom Pro:- YES
• Record Video:- YES
• Capture pictures:- YES
• Audio recording:- YES
• Standby mode:- YES
• Picture in Picture:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

• Degree of protection, IP code:- IP67
• Dust protection:- Protected against dust ingress
• Water protection:- Protected against temporary submersion in water
• Operating temperature range:- -30 °C to 55 °C

• Dimensions, mm:- 197mm x 60mm x 94mm
• Weight, kg:- 0.45 kg

• "Operating time on battery (WiFi & Hot tracking disabled)":- 4 hours
• Charging interface:- Removable 18650 battery

Securely attaches to the separately available Clip-on Lens system and the objective bell of your optical scope.

Provides the mounting point to quickly attach and disconnect your Thunder thermal module.

Suitable for 47-51mm diameter scope.

Available in 40mm, 50mm, 60mm options.

The HIK Micro Scope Adaptor Clamp securely attaches to the separately available Clip-on Lens system and the objective bell of your optical scope, providing the mounting point to quickly attach and disconnect your Thunder thermal module. Suitable for 47-51mm diameter scope. Available in 40mm, 50mm, 60mm options.

• Dimensions (W x H x D) (mm) 184.1×26.3×28

• Beam angle: 6° to 35°
• Irradiation distance: Up to 200 m
• IR wavelength: 850 nm
• Battery operating time: Up to 5.5 h

PLEASE NOTE: THIS ITEM DOES NOT COME WITH BRACKETS

IR Torch is applied to optical products, such as handheld thermal camera and digital night vision scope. It uses infrared light as a supplementary light to improve image quality.

POWER SUPPLY

• Power: By battery
• Battery type: HIKMICRO HM-3632DC or HM-3633DC (not included)
• Battery operating time: Up to 5.5 h
• Capacity: 3350 mAh

GENERAL

• Operating temperature: -20°C to 50°C (-4°F to 122°F)
• Weight: 150 g (0.33 lb)(without battery)
• Body material: Metal
• Dimensions: 151.11 mm × 38.2 mm (5.95" x 1.5")
• Power input: 3.6 V

INFRARED ILLUMINATOR

• IR optical power: Up to 700 mW
• IR wavelength: 850 nm
• Irradiation distance: Up to 200 m
• Beam angle: 6° to 35°
• Emitter: LED

• High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
• 384 × 288 resolution with 12μm detector
• 1024 × 768 resolution 0.39-inch OLED display
• Replaceable and rechargeable Li-ion battery
• 275g lightweight, with a compact and ergonomic design
• Up to 6.5 hours of continuous operation

Introducing the new Lynx 2.0 25mm thermal monocular. Sharing the same design philosophy, robust build quality and high performance thermal sensors as the class leading Falcon and Condor monoculars, the Lynx 2.0 redefines expectations from entry level thermal products.

High performance thermal – At the core of the Lynx 2.0 25mm is HIKMICRO’s latest generation, 384px Sub 20 mK NETD sensor that pairs with the advanced, F1.0 lens to detect very small changes in temperature and deliver an incredibly detailed image, even in the most challenging conditions. The 15mm Focal length offers 2.4x base mag with up to 8x digital magnification giving you 2.4-19.2x magnification range.

Compact and powerful - Built on a robust magnesium-alloy chassis, the Lynx 2.0 has a distinctly premium feel from the first time you pick it up. The updated chassis design also features a removable 18650 battery delivering up to 6.5 hours of run time. The ergonomic buttons fall easily to hand and allow you to intuitively take control of the main features, even in complete darkness. The large OLED screen gives a great view of your surroundings while the soft eyecup prevents unwanted light spill.

Digital connectivity – The Lynx 2.0 is supplied with the latest HIKMICRO software which gives you fast access to commonly used options like brightness and contrast and allows you to add a PIP screen to your monocular. The Lynx 2.0 offers a choice of four thermal colour profiles, the ability to record pictures or video and WiFi to allow you to connect, stream and control from the HIKMICRO sight app.

The lower the NETD value, the better the imaging

Thermal imaging works by sensing tiny differences in temperature, and the more sensitive the sensor is to minute contrasts, the better and more clear the image in the viewfinder. Lynx 2.0’s sub 20mK NETD sensors capture the sharpest, most informative images, even in challenging conditions; this means that you can not just find the heat of people, animals and birds, but capture the detail of the surroundings to aid identification.

Convenience is king

The Lynx 2.0 has been redesigned to maximise convenience in every area. The size and weight, at under 175mm in length and under 300g with battery, combine with the rugged build and comfortable rounded shape to produce a powerful device that can easily be carried and used at all times. The new power system uses industry-standard rechargeable 18650 batteries for a continuous run-time of up to 6.5 hours, which can be renewed by a quick switch of the battery to a (supplied) spare. Lynx 2.0 also features a 3 second Fast Boot time, to easily keep pace with the action in the field.

Integrated phone or tablet hotspot

HIKMICRO’s Sight App links Lynx 2.0 to your phone or tablet, creating a second display and adding functionality: You can control the device via the app, view and share recorded images and video, share the thermal view with others in your group, and control and update the software settings.

The Lynx 2.0 is the perfect, versatile companion device for hunting, ecological survey, wildlife observation, search & rescue and security applications. The affordable price, high performance and robust, proven build make it a natural choice and it seems well set to take over the best-seller crown from its much-loved predecessor.

• Image Pro:- YES
• Zoom Pro:- YES
• Record Video:- YES
• Capture pictures:- YES
• Audio recording:- YES
• Standby mode:- YES
• Picture in Picture:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

• Sensor:- 640 x 512 @ 12µm
• Objective Lens (Focal Length):- 35mm
• Detection Range (Human 1.8 x 0.5m):- 1800m

• Type:- "VOx Uncooled Focal Plane Arrays "
• Resolution, pixels:- 640 x 512px
• Pixel pitch, µm :- 12µm
• Frame rate, Hz:- 50 Hz
• NETD:- <20mK

• Objective lens:- F1.0
• Magnification:- 2x - 16x
• Magnification (Digital):- 1x, 2x, 4x, 8x
• Field of view:- 12.5°× 10.0°

• LRF Fitted:- Yes
• Maximum range:- 1000m
• Measurement accuracy:- ± 1m

• Type:- 9.9mm, OLED
• Resolution, Pixels:- 1024 ×768
• Colour Palettes:- White Hot, Black Hot, Red Hot, Fusion

• Image Pro:- YES
• Zoom Pro:- YES
• Record Video:- YES
• Capture pictures:- YES
• Audio recording:- YES
• Standby mode:- YES
• Picture in Picture:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

• Degree of protection, IP code:- IP67
• Dust protection:- Protected against dust ingress
• Water protection:- Protected against temporary submersion in water
• Operating temperature range:- -30 °C to 55 °C

• Dimensions, mm:- 184mm x 53mm x 87mm
• Weight, kg:- 0.4 kg

• "Operating time on battery (WiFi & Hot tracking disabled)":- 4 Hours
• Charging interface:- Removable 18650 battery

• Sensor resolution: 2560 x 1440px
• Frame rate, Hz: 25 Hz
• Focal Length: 32mm
• Minimum Focus Distance: 3m
• Field of view: 9.9° × 7.5°
• Aperture: F1.2
• Magnification: 1x
• Full colour day mode: Yes
• Black & White night mode: Yes
• Detection Distance (with inbuilt IR): 400m

• Sensor resolution: 2560 x 1440px
• Frame rate, Hz: 25 Hz
• Focal Length: 32mm
• Minimum Focus Distance: 3m
• Field of view: 9.9° × 7.5°
• Aperture: F1.2
• Magnification: 1x
• Full colour day mode: Yes
• Black & White night mode: Yes
• Detection Distance (with inbuilt IR): 400m

• Type: 12.5mm OLED
• Resolution: 1920 x 1080px
• Image Modes: Day, Night, Auto, Defog
• Exit Pupil: 22 mm
• Eye Relief: 10 mm

• Max. Measuring Distance: 1000m
• Safety Class for Laser: Class 1

• Magnification (Digital): 1x,
• One-Shot Zero: Yes
• Standby mode: Yes
• Picture-in-Picture: No
• Recoil-Activated recording: Yes
• Max Recoil: 750 g
• Reticle Options: N/A
• Zero Profiles: N/A
• Audio Recording: Yes
• Wi-Fi Connection: Yes
• HIKMICRO Sight App: Compatible
• Storage: Built in 64 GB

• Battery: 1x Replacable 18650
• Battery run time: 5.5 Hrs (Continuous running)
• Battery Capacity display: Yes
• Recharging method: External Charger (Supplied)

• Working temperature: -30°C to 55°C
• Dimensions: 182mm x 70mm x 87mm
• Weight: 465g (Without eyepiece)
• Degree of protection, IP code: IP67
• Water protection: Protected against temporary submersion in water

• Main Unit: 3 Years

• 720P HD display
• 5-inch LCD touch screen
• Supports reverse charging function
• Adjust display brightness adjustment
• Allows palette change
