Kahles

• 2nd focal plane When the magnification is changed, the reticle remains the same size – although the size of the image changes, the size of the reticle does not.
• The main tube has a diameter of 30 mm which is the standard for hunting scopes.
• This unit automatically switches the illuminated reticle on or off when not in use, in order to save valuable energy.
• Work out the distance – adjust the ballistic ring – and go!

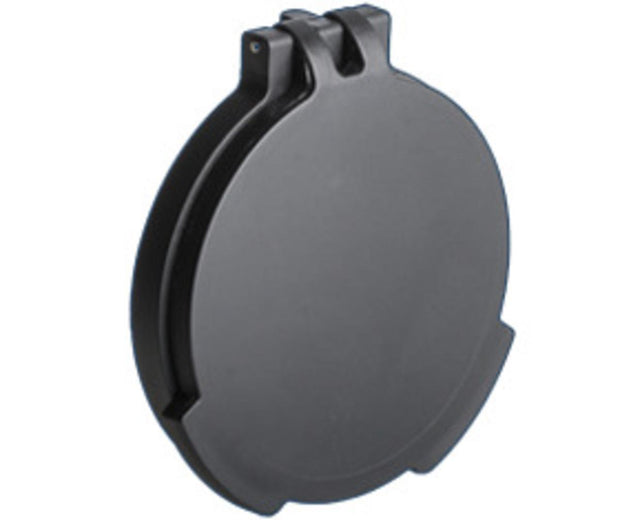

• OBJECTIVE LENS FLIP-UP COVER 56MM
• For HELIA/K624I RAL8000/K525I

• Weight: 50g
• Material: Aluminium

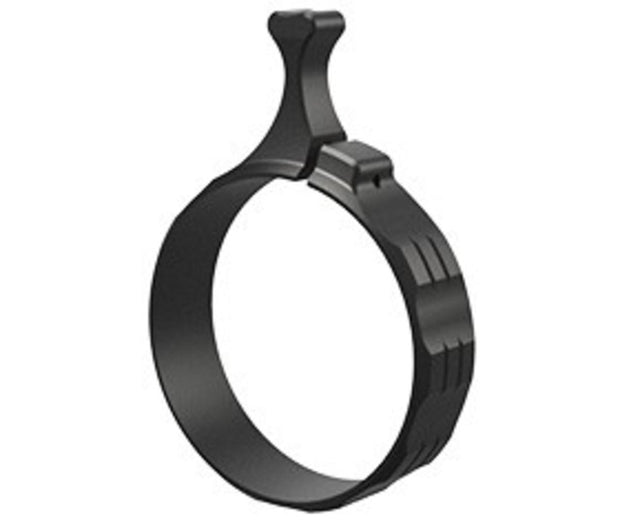

Kahles Throw Lever for Helia

• Weight: 5.29 Ounces

Kahles Scope Cover K525i/624i/Helia 2.4 - 12

• K525i
• 318i
• 16i
• 1050
• Helia

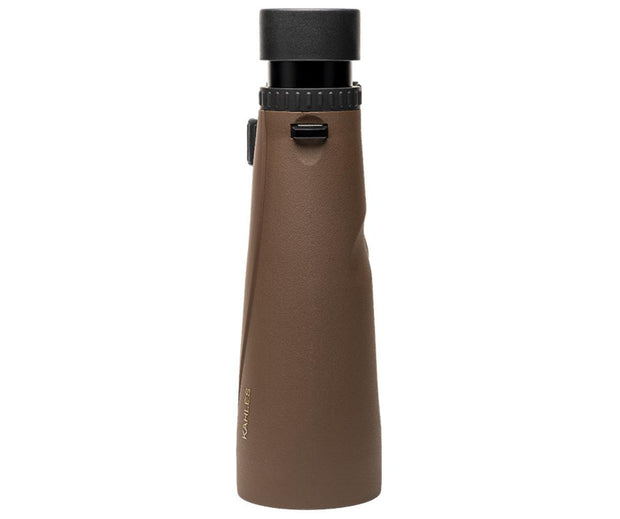

• Easy and reliable targeting up to 2.000 m
• Ergonomic design, intuitive handling, simple menu navigation
• Exceptional edge to edge clarity and large field of view of 117 m / 1.000 m
• Premium-quality OLED display with five manual brightness settings and display in meter or yards
• EAC-function (Enhanced Angle Compensation) for angle correction (patented)

• Easy and reliable targeting up to 2.000 m
• Ergonomic design, intuitive handling, simple menu navigation
• Exceptional edge to edge clarity and large field of view of 117 m / 1.000 m
• Premium-quality OLED display with five manual brightness settings and display in meter or yards
• EAC-function (Enhanced Angle Compensation) for angle correction (patented)
• Scan mode, temperature- and air pressure measurement
• Extra-long battery lifetime ~ 4,000 measurements

• Magnification:- 7
• Objective lens diameter (mm):- 25
• Eye relief (mm):- 15
• Exit pupil diameter (mm):- 3,6
• Twilight factor (ISO 14132-1):- 13,2
• Field of view (m/1000m):- 117
• Field of view (°):- 6,7
• Field of view apparent (°):- 46
• Near focus (m):- 10
• Diopter compensation (dpt):- +/- 4
• Measurement range (m):- 10 - 2.000
• Measurement range (y):- 10 - 2.000
• Range-finding accuracy (m):- +/- 1 up to 100 / +/-2 up to 1.000 / +/-0,5% over 1.000
• Range-finding accuracy (y):- +/- 1 up to 100 / +/- 2 up to 1.000 / +/- 0,5% over 1.000
• Display type:- OLED
• Brightness levels:- 5
• Measurement duration (s):- 1
• Display auto-off function (s):- 5
• Waterproof (nitrogen filling):- Yes
• Height x Width x Depth approximately (mm):- 78 x 37 x 102
• Weight (g):- 214 incl. Battery
• Meter/Yard display:- Yes
• Laser category:- 1M
• Single measurement:- Yes
• Scan measurement:- Yes
• Angle correction (EAC-function):- Yes
• Temperature indication:- Yes
• Air pressure indication:- Yes
• Battery type:- CR2
• Battery life (range cycles):- 4.000
• Guarantee (years):- 2
• Operating temperature (°c):- -10 - +55
• Storage temperature (°C):- -30 - +70

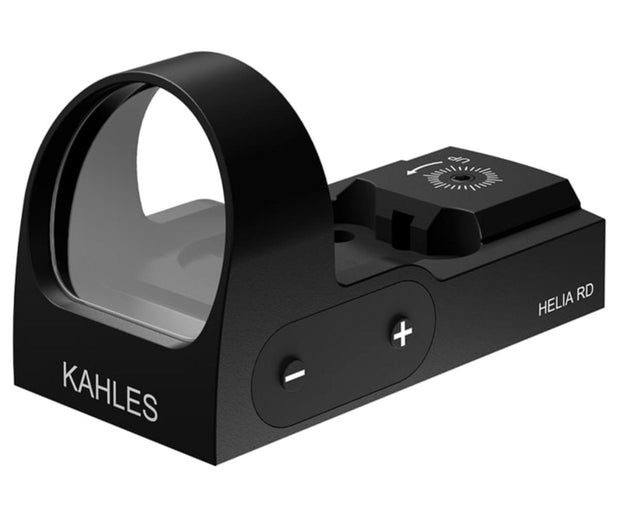

• Unique Anti-Reflexion coating for clear visibility
• Precise 2 MOA dot and Easyclick
• Picatinny/Weaver mount included
• 4 manual illumination settings with intelligent automatic switch-off
• Easy to change battery

For the first time, KAHLES is presenting a reflex sight for driven hunt - the new HELIA Red Dot (RD). Its unique Anti-Reflexion coating for clear visibility and the precise 2 MOA red dot, designed to cover as little of the game as necessary, make it the ideal sight for an intuitive shot. The Anti-Reflexion coating provides an excellent image, without any distracting reflections over the entire field of view, while the precise 2 MOA dot allows for minimal target coverage. The red dot can be manually adjusted in four settings for different lighting conditions and the automatic light function saves valuable energy when not in immediate use. With the accurate and reliable Easyclick adjustment mechanism, sighting in becomes an easy task. Furthermore, the new HELIA sight combines a straight, robust design with easy to use operation elements. The battery compartment can be opened with a coin or a cartridge, making battery change simple and easy. Beside an orange protection cap with integrated slot for a spare battery, the HELIA RD comes with a Picatinny/Weaver mount.

• Maximum optical performance – field of view, high contrast image, high definition
• Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
• Optional left or right side windage
• Parallax wheel integrated into the elevation turret (patented) (20 m to ∞)
• Innovative TWIST GUARD windage (patented)

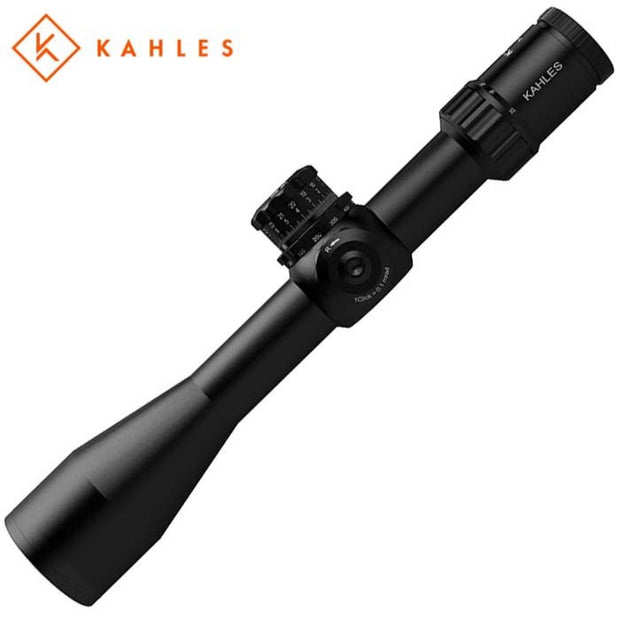

The K525i combines maximum optical performance and precision with unique handling and ergonomics. A rugged riflescope for professionals, with windage optional left or right, precise illuminated reticles in 1 st focal plane and the unique TWIST GUARD windage.

• Maximum optical performance – field of view, high contrast image, high definition
• Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
• Optional left or right side windage
• Parallax wheel integrated into the elevation turret (patented) (20 m to ∞)
• Innovative TWIST GUARD windage (patented)

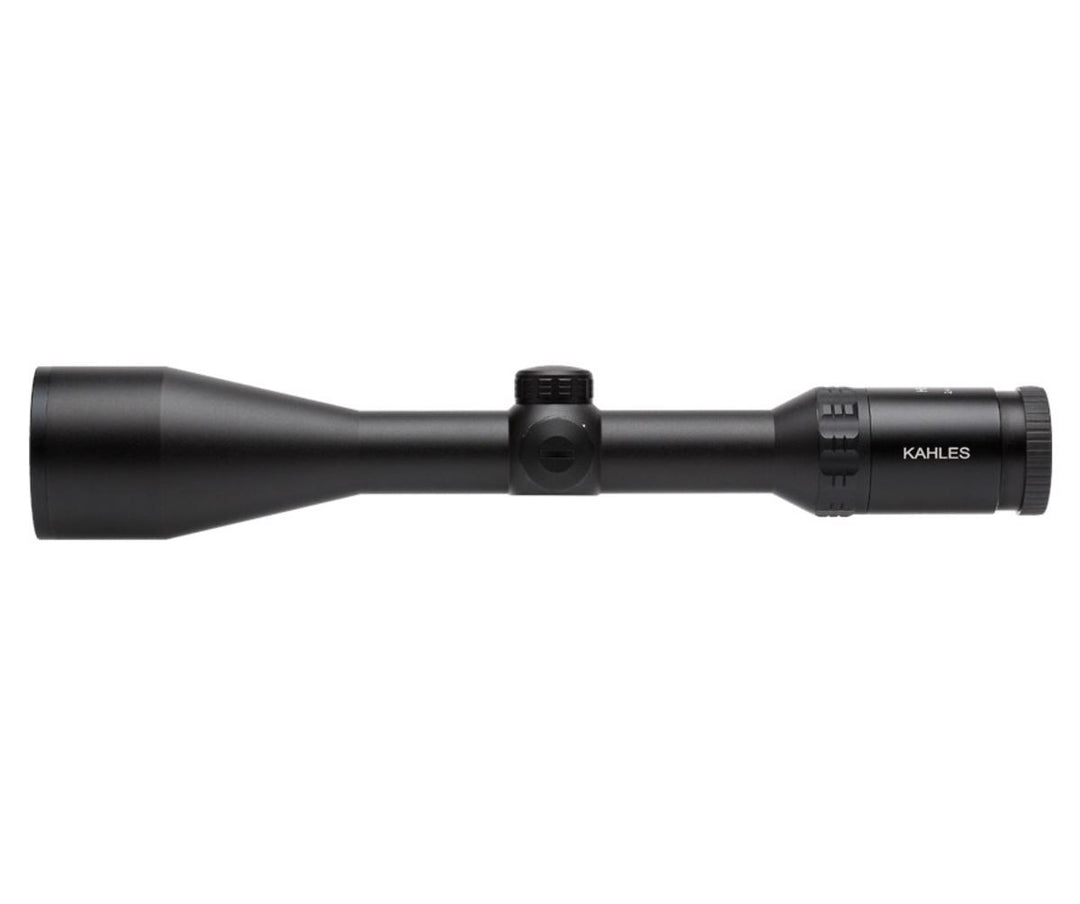

• Precise illuminated reticle in 1 st focal plane

• Hunting optics with up to 18-time magnification
• Parallax adjustment shapely combined with the illumination unit
• Powerful optic system with exceptional edge to edge clarity
• Day/night illuminated reticle with intelligent automatic switch-off
• OILPHOBIC coated lenses

• Hunting optics with up to 18-time magnification
• Parallax adjustment shapely combined with the illumination unit
• Powerful optic system with exceptional edge to edge clarity
• Day/night illuminated reticle with intelligent automatic switch-off
• OILPHOBIC coated lenses

• Magnification: 3,5-18
• Objective lens diameter: 50 mm
• Eye relief: 95 mm
• Field of view: 12,2-2,2 m/100 m
• Diopter compensation: +2/–3 dpt
• Twilight factor (DIN 58388): 10,5-30
• Impact correction per click: 10mm / 100m
• Adjustment range (E/W): 1,95/1 m/100m
• Parallax adjustment: 50-∞ m
• Tube diameter: 30 mm
• Length: 383 mm
• Weight: 660 g
• Focal plane: 2
• Illuminated: Ja
• Warranty: 10 years

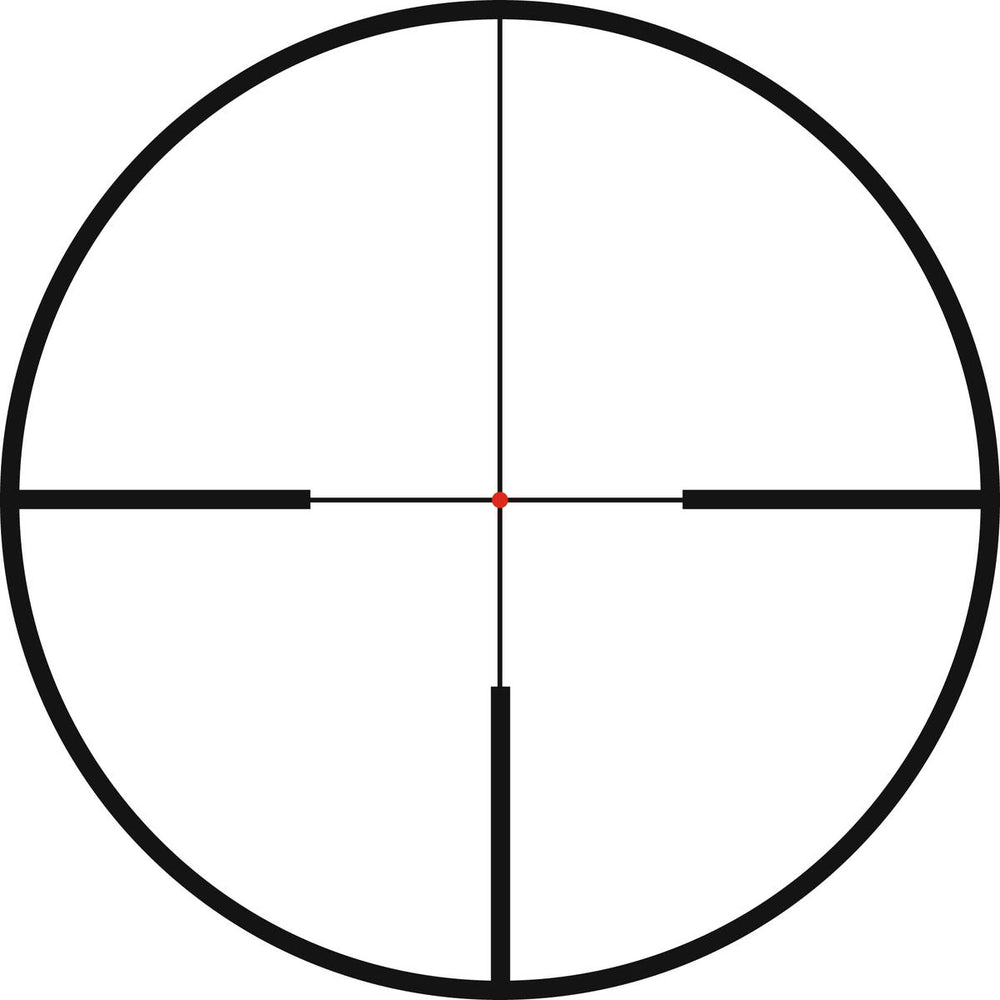

• 2nd focal plane When the magnification is changed, the reticle remains the same size – although the size of the image changes, the size of the reticle does not.
• The main tube has a diameter of 30 mm which is the standard for hunting scopes.
• This unit automatically switches the illuminated reticle on or off when not in use, in order to save valuable energy.
• Work out the distance – adjust the ballistic ring – and go!

• SUNSHIELD 56MM
• (HELIA/K1050I FT/K525I/K624I)

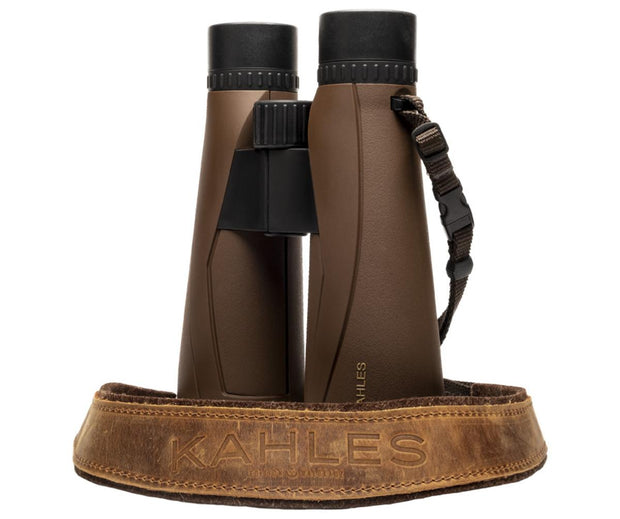

• Powerful high contrast optics system with exceptional edge sharpness
• Wide field of view of 110 / 136 m
• Light and ergonomic - for high observation comfort even during long periods of use
• Durable and resilient with a robust magnesium housing
• High quality comfort strap with an innovative quick release fastener

• Powerful high contrast optics system with exceptional edge sharpness
• Wide field of view of 110 / 136 m
• Light and ergonomic - for high observation comfort even during long periods of use
• Durable and resilient with a robust magnesium housing
• High quality comfort strap with an innovative quick release fastener

• Magnification:- 8
• Objective lens diameter (mm):- 42
• Eye relief (mm):- 18,5
• Exit pupil diameter (mm):- 5,3
• Interpupillary distance (mm):- 56–74
• Twilight factor (ISO 14132-1):- 18,3
• Field of view (m/1,000 m):- 136
• Field of view (°):- 7,8
• Field of view apparent (°):- 61
• Shortest focusing distance (m):- 3,2
• Diopter compensation (dpt):- +/-4 dpt
• Waterproof (nitrogen filling):- ✓
• Height x Width x Depth (mm):- 149 x 120 x 63
• Housing material:- Magnesium
• Weight (g):- 815
• Warranty (years):- 10
• Functional temperature (°C):- -25 °C/+55 °C
• Storage temperature (°C):- -30 °C / +70 °C
• Accessories (inclusive):- Ocular and objective cover, Carrying strap with quick release fastener

• Powerful high contrast optics system with exceptional edge sharpness
• Wide field of view of 110 / 136 m
• Light and ergonomic - for high observation comfort even during long periods of use
• Durable and resilient with a robust magnesium housing
• High quality comfort strap with an innovative quick release fastener

• Powerful high contrast optics system with exceptional edge sharpness
• Wide field of view of 110 / 136 m
• Light and ergonomic - for high observation comfort even during long periods of use
• Durable and resilient with a robust magnesium housing
• High quality comfort strap with an innovative quick release fastener

• Magnification:- 10
• Objective lens diameter (mm):- 42
• Eye relief (mm):- 15,8
• Exit pupil diameter (mm):- 4,2
• Interpupillary distance (mm):- 56–74
• Twilight factor (ISO 14132-1):- 20.5
• Field of view (m/1,000 m):- 110
• Field of view (°):- 6,3
• Field of view apparent (°):- 61
• Shortest focusing distance (m):- 3,2
• Diopter compensation (dpt):- +/-4 dpt
• Waterproof (nitrogen filling):- ✓
• Height x Width x Depth (mm):- 144 x 120 x 63
• Housing material:- Magnesium
• Weight (g):- 785
• Warranty (years):- 10
• Functional temperature (°C):- -25 °C/+55 °C
• Storage temperature (°C):- -30 °C / +70 °C
• Accessories (inclusive):- Ocular and objective cover, Carrying strap with quick release fastener

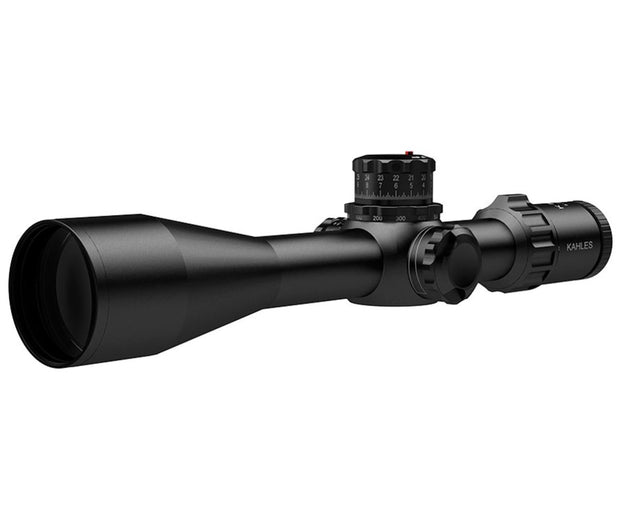

The K525i combines maximum optical performance and precision with unique handling and ergonomics. A rugged riflescope for professionals, with windage optional left or right, precise illuminated reticles in 1 st focal plane and the unique TWIST GUARD windage.

• Maximum optical performance field of view, high contrast image, high definition
• Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
• Optional left or right side windage
• Parallax wheel integrated into the elevation turret (patented) (20 m to )
• Innovative TWIST GUARD windage (patented)
• Precise illuminated reticle in 1 st focal plane

The K525i combines maximum optical performance and precision with unique handling and ergonomics. A rugged riflescope for professionals, with windage optional left or right, precise illuminated reticles in 1 st focal plane and the unique TWIST GUARD windage.

• Maximum optical performance field of view, high contrast image, high definition
• Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
• Optional left or right side windage
• Parallax wheel integrated into the elevation turret (patented) (20 m to )
• Innovative TWIST GUARD windage (patented)
• Precise illuminated reticle in 1 st focal plane

• Weight: 5.64 Ounces
• The cover is approx 304 mm x 60 mm

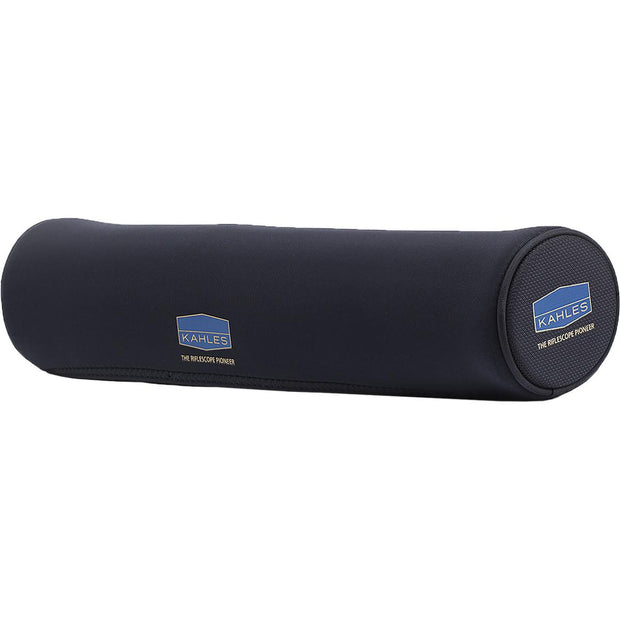

Kahles Scope Cover Helia 2-10/Helia3 3-10+4-12

• Maximum optical performance – field of view, high contrast image, high definition
• Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
• Parallax wheel integrated into the elevation turret (patented) (20 m to ∞)
• Innovative TWIST GUARD windage (patented)
• Precise illuminated reticle in 1 st focal plane

• Maximum optical performance – field of view, high contrast image, high definition
• Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
• Parallax wheel integrated into the elevation turret (patented) (20 m to ∞)
• Innovative TWIST GUARD windage (patented)
• Precise illuminated reticle in 1 st focal plane

• Magnification: 5 - 25
• Objective lens diameter: 56 mm
• Exit pupil: 9.5 - 2.3 mm
• Eye relief: 95 mm
• Field of view: 7.1 - 1.5 m/100 m
• Diopter compensation: +2 / -3.5 dpt
• Twilight factor (DIN 58388): 16.7 - 37.4
• Impact correction per click: 0.1 MRAD ¼ MOA
• Adjustment range (E/W): 2.9/1.3 m/100 m
• Parallax adjustment: 20 m till ∞
• Tube diameter: 34 mm
• Length: 377 mm
• Weight: 970 g
• Illuminated: Yes

• Maximum optical performance – field of view, high contrast image, high definition
• Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
• Parallax wheel integrated into the elevation turret (patented) (20 m to ∞)
• Innovative TWIST GUARD windage (patented)
• Precise illuminated reticle in 1 st focal plane

• Maximum optical performance – field of view, high contrast image, high definition
• Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
• Parallax wheel integrated into the elevation turret (patented) (20 m to ∞)
• Innovative TWIST GUARD windage (patented)
• Precise illuminated reticle in 1 st focal plane

• Magnification: 5 - 25
• Objective lens diameter: 56 mm
• Exit pupil: 9.5 - 2.3 mm
• Eye relief: 95 mm
• Field of view: 7.1 - 1.5 m/100 m
• Diopter compensation: +2 / -3.5 dpt
• Twilight factor (DIN 58388): 16.7 - 37.4
• Impact correction per click: 0.1 MRAD ¼ MOA
• Adjustment range (E/W): 2.9/1.3 m/100 m
• Parallax adjustment: 20 m till ∞
• Tube diameter: 34 mm
• Length: 377 mm
• Weight: 970 g
• Illuminated: Yes

• Easy and reliable targeting up to 1,500 m on common hunting targets
• Intuitive simple menu navigation
• Patented EAC-function (Enhanced Angle Compensation) for angle correction
• Long-range (LR) function for ranging easy to detect targets up to 4,500 m
• Premium-quality OLED display with five manual brightness settings and display in meter or yards
• Scan Mode, temperature and air pressure display
• Extra long battery lifetime ~ 4,000 measurements

• Easy and reliable targeting up to 1,500 m on common hunting targets
• Intuitive simple menu navigation
• Patented EAC-function (Enhanced Angle Compensation) for angle correction
• Long-range (LR) function for ranging easy to detect targets up to 4,500 m
• Premium-quality OLED display with five manual brightness settings and display in meter or yards
• Scan Mode, temperature and air pressure display
• Extra long battery lifetime ~ 4,000 measurements

• Brilliant, clear image even at night
• Natural, earthy colours
• Rugged, fog-free and waterproof
• Waldkauz leather strap with quick disconnect for easy removal

• OBJECTIVE LENS FLIP-UP COVER 50MM
• For (HELIA/HELIA 3/K312I/K318I)

• Easy and reliable targeting up to 1,500 m on common hunting targets
• Intuitive simple menu navigation
• Patented EAC-function (Enhanced Angle Compensation) for angle correction
• Long-range (LR) function for ranging easy to detect targets up to 4,500 m
• Premium-quality OLED display with five manual brightness settings and display in meter or yards
• Scan Mode, temperature and air pressure display
• Extra long battery lifetime ~ 4,000 measurements

• Easy and reliable targeting up to 1,500 m on common hunting targets
• Intuitive simple menu navigation
• Patented EAC-function (Enhanced Angle Compensation) for angle correction
• Long-range (LR) function for ranging easy to detect targets up to 4,500 m
• Premium-quality OLED display with five manual brightness settings and display in meter or yards
• Scan Mode, temperature and air pressure display
• Extra long battery lifetime ~ 4,000 measurements
