Pixfra Pixfra Arc A635
Pixfra Pixfra Arc A635
Pixfra Pixfra Arc A635
Pixfra Pixfra Arc A635
Pixfra Pixfra Arc A635

Pixfra Pixfra Arc A635

£1,509.95 Regular price Save £-1,509.95
2 in stock
2 days
Dispatched in 2 days
  • Thermal Sensor:- 640×512, 12μm, <30mK NETD
  • Detector Type:- Vanadium oxide uncooled focal plane detector
  • Spectral Range:- 8μm~14μm
  • Frame Rate:- 50 Hz
  • Objective Lens:- 35mm f1.0
  • Field of View:- H: 12.4°; V: 10.0°
  • Detection Range:- 1800m
  • Magnification:- 2.36x
  • Colour Palettes:- 6 (white hot/black hot /iron red/ alarm/amber/emerald)
  • Close Focus Distance:- 2m
  • Digital Zoom:- 1x, 2x, 4x, 8x
  • Display Screen Dimensions:- 0.41 inch, OLED
  • Screen Resolution:- 1440 x 1080
  • Diopter:- -4D ~ +5D
  • Eye Relief:- 15mm
  • Uniformity Correction:- Auto; Manual
  • Storage:- Built-in EMMC (32 GB)
  • Audio Recording:- Yes
  • Hot Spot Trace:- Yes
  • Wi-Fi:- Yes
  • Power Supply:- 5 V Type-C
  • Battery Type:- 1 rechargeable 1850 Lithium battery
  • Battery Capacity:- 3,200 mAh
  • Battery Operating Life:- Up to 6h
  • Operating Temperature:- –30 °C to +60 °C (–22 °F to +140 °F)
  • Storage Temperature:- –30 °C to +70 °C (–22 °F to +158 °F)
  • Protection:- IP67
  • Product Dimensions:- 151.8 mm × 42.3 mm × 74.3 mm (5.98″ × 1.67″ × 2.93″) (L × W × H)
  • Packaging Dimensions:- 245 mm × 150 mm × 144 mm (9.65″ × 5.91″ × 5.67″) (L × W × H)
  • Net Weight:- ≤340 g (0.75 lb) (battery excluded)
Powerful Thermal Optics

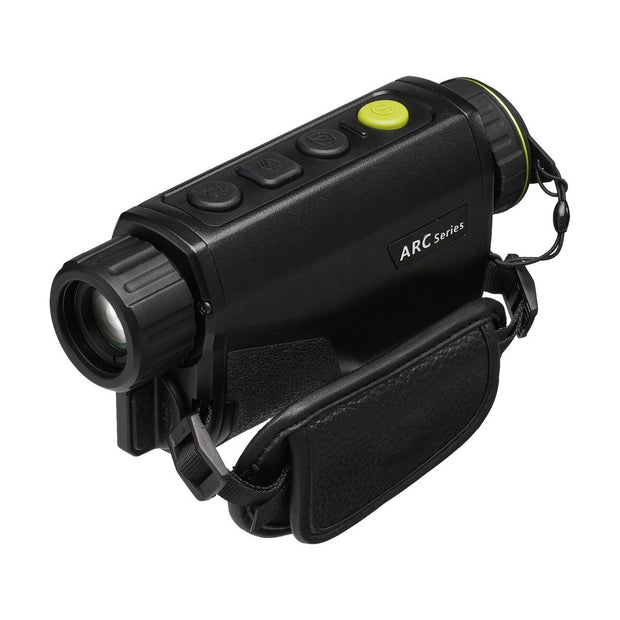

The Pixfra Arc A635 offers pro-grade thermal imaging capabilities in a compact, lightweight, and most importantly, cost-effective device. Featuring a highly sensitive 640×512, 12µm, <30mK NETD thermal sensor and a powerful 25mm f1.0 objective lens, this thermal imaging monocular achieves stunning optics and an impressive 1300m detection range; keeping you well informed when it comes to activity within the field of view and presenting a crisp and clear thermal image onto a full colour 1440×1080 OLED display.
Hours of Effective Observation
The Arc A635 features two replaceable, rechargeable batteries, each with a 6 hour power capacity — keeping your observations going well into the night without worrying about recharging.
Share the View
The Arc A635is designed to enhance the viewing experience during group observations thanks to its ability to connect to four smart devices via the free Pixfra app. Through this intuitive app, the Arc can share its screen with up to four people located within 20m of the device — so, when one person spots an object or animal of interest, all four members of the group can observe at the same time, without having to share the device’s viewfinder.
The app is FREE to download for both Android and iOS.
Comfort & Portability
Designed first and foremost for comfort and resilience, the Arc A635 features an ergonomically designed bodyshell and convenient button arrangement, ensuring easy operation and comfortable observations over long periods.
Weighing less than 350g, the Arc A635 remains incredibly lightweight, reducing the likelihood of fatigue when in-hand and fitting comfortably in a pack or pocket when not in use.
A robust magnesium alloy casing offers protection against the everyday bumps and scrapes that occur in the field, and its IP67 waterproof rating means the device can be used in any conditions, withstanding a splash and protecting it against water ingress.
Plus, for those who need to venture into challenging environments, the Arc A635 will even remain unaffected in extreme temperatures from –30 °C to +50 °C.
  • Thermal Sensor:- 640×512, 12μm, <30mK NETD
  • Detector Type:- Vanadium oxide uncooled focal plane detector
  • Spectral Range:- 8μm~14μm
  • Frame Rate:- 50 Hz
  • Objective Lens:- 35mm f1.0
  • Field of View:- H: 12.4°; V: 10.0°
  • Detection Range:- 1800m
  • Magnification:- 2.36x
  • Colour Palettes:- 6 (white hot/black hot /iron red/ alarm/amber/emerald)
  • Close Focus Distance:- 2m
  • Digital Zoom:- 1x, 2x, 4x, 8x
  • Display Screen Dimensions:- 0.41 inch, OLED
  • Screen Resolution:- 1440 x 1080
  • Diopter:- -4D ~ +5D
  • Eye Relief:- 15mm
  • Uniformity Correction:- Auto; Manual
  • Storage:- Built-in EMMC (32 GB)
  • Audio Recording:- Yes
  • Hot Spot Trace:- Yes
  • Wi-Fi:- Yes
  • Power Supply:- 5 V Type-C
  • Battery Type:- 1 rechargeable 1850 Lithium battery
  • Battery Capacity:- 3,200 mAh
  • Battery Operating Life:- Up to 6h
  • Operating Temperature:- –30 °C to +60 °C (–22 °F to +140 °F)
  • Storage Temperature:- –30 °C to +70 °C (–22 °F to +158 °F)
  • Protection:- IP67
  • Product Dimensions:- 151.8 mm × 42.3 mm × 74.3 mm (5.98″ × 1.67″ × 2.93″) (L × W × H)
  • Packaging Dimensions:- 245 mm × 150 mm × 144 mm (9.65″ × 5.91″ × 5.67″) (L × W × H)
  • Net Weight:- ≤340 g (0.75 lb) (battery excluded)
