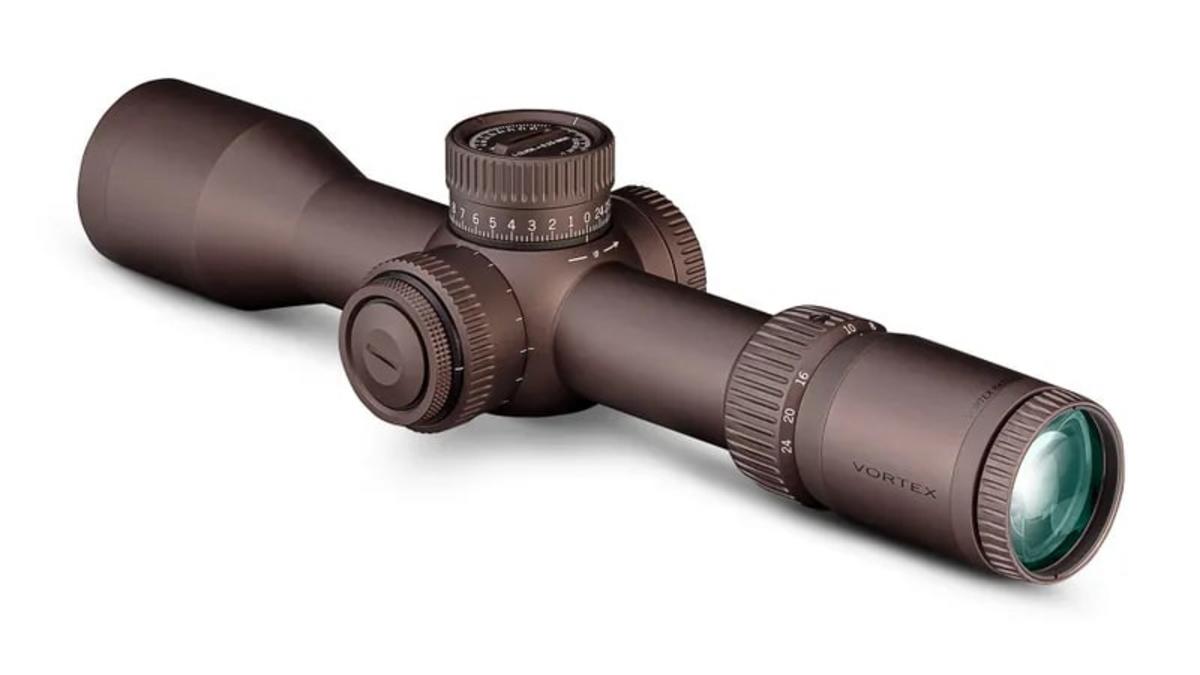

Vortex Razor® HD Gen III 4-24x44 FFP EBR-7D MOA
S153400
- Magnification: 4–24x
- Objective Lens Diameter: 44 mm
- Focal Plane: First Focal Plane
- Reticle: EBR-7D (MOA)
- Eye Relief: 3.3"
- Field of View: 30.9' – 5.3' @ 100 yds
- Turret Style: Elevation – Locking Exposed; Windage – Capped
- Tube Size: 34 mm
- Adjustment Graduation: 1/4 MOA
- Travel per Rotation: 25 MOA
- Max Elevation Adjustment: 158 MOA
- Max Windage Adjustment: 86 MOA
- Parallax Setting: 15 yds – ∞
- Length: 12.5"
- Weight: 32.3 oz
Trusted by elite shooters, the Razor® HD Gen III 4-24x44 FFP delivers the versatility needed for high-stakes tactical operations. Its low magnification and wide field of view ensure fast observation and close-range shots, while high magnification provides precision for long-range target identification. With a compact, rugged design that minimizes weight without sacrificing performance, it offers top-tier optics and unmatched reliability when it matters most.
Specifications
- Magnification: 4–24x
- Objective Lens Diameter: 44 mm
- Focal Plane: First Focal Plane
- Reticle: EBR-7D (MOA)
- Eye Relief: 3.3"
- Field of View: 30.9' – 5.3' @ 100 yds
- Turret Style: Elevation – Locking Exposed; Windage – Capped
- Tube Size: 34 mm
- Adjustment Graduation: 1/4 MOA
- Travel per Rotation: 25 MOA
- Max Elevation Adjustment: 158 MOA
- Max Windage Adjustment: 86 MOA
- Parallax Setting: 15 yds – ∞
- Length: 12.5"
- Weight: 32.3 oz

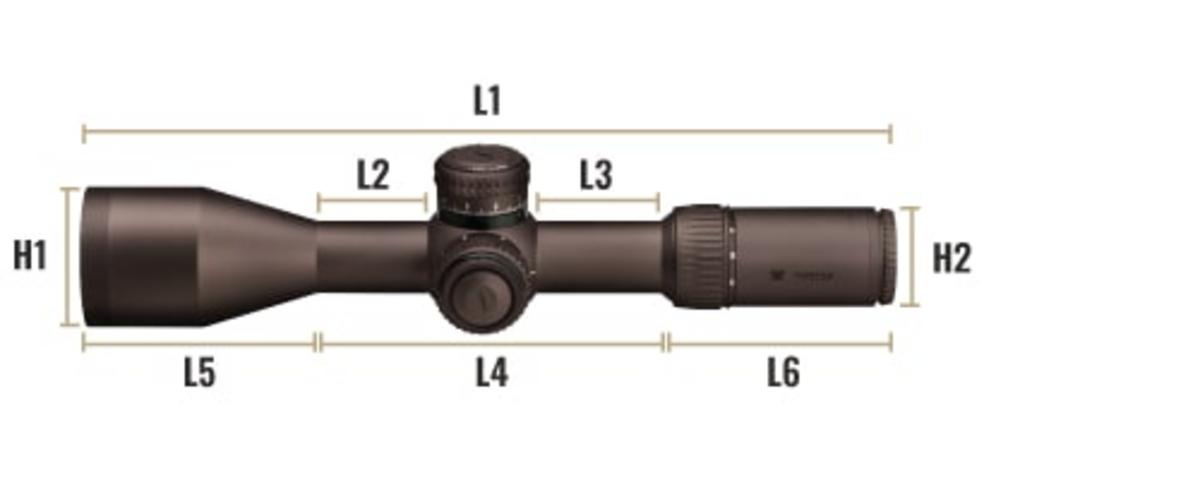

Razor HD GEN III 4-24x44 Dimensions (in inches)
See Image
Lengths
- L1: 12.5"
- L2: 1.75"
- L3: 2.23"
- L4: 5.95"
- L5: 2.96"
- L6: 3.57"
Heights
- H1: 2.05"
- H2: 1.80"
Class Leading HD Optical System
Stunning resolution and class-leading field of view combine to create our most advanced optical system.
First Focal Plane EBR-7D Reticle
Scale of the EBR-7D reticle remains in proportion to the zoomed image. Constant subtensions allow for accurate holdovers and ranging at all magnifications while the EBR-7D reticle is useful for long-range shooting.
L-Tec+™ Zero System
The L-Tec+™ Zero System is easy to use with all captive parts and only one set screw, making zeroing quick and simple. Once set, it also allows for more travel.
Compact and Lightweight
A compact, rugged design that minimizes weight without sacrificing performance.
APO (Apochromatic)
Index-matched lenses correct color across the entire visual spectrum.
Micro-Adjust Zero Setting
Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.
XR™ Plus Lens Coatings
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Optically Indexed Lenses
Optimize image sharpness and brightness from edge to edge.
Plasma Tech
Cutting-edge coating application process provides unparalleled coating durability and performance.
Glass-Etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Aircraft Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
ArmorTek®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil, and dirt.
Hard Anodized Stealth Shadow Finish
Highly durable anodization provides a low-glare matte surface and helps camouflage the shooter's position.
Locking Side Illumination
Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels with off positions between each setting.
Argon Gas Purged
Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.
Waterproof
Designed to withstand harsh weather conditions.
Fogproof
Designed to withstand a wide range of temperatures.
Shockproof
Designed to withstand the highest levels of recoil and impact.
-
