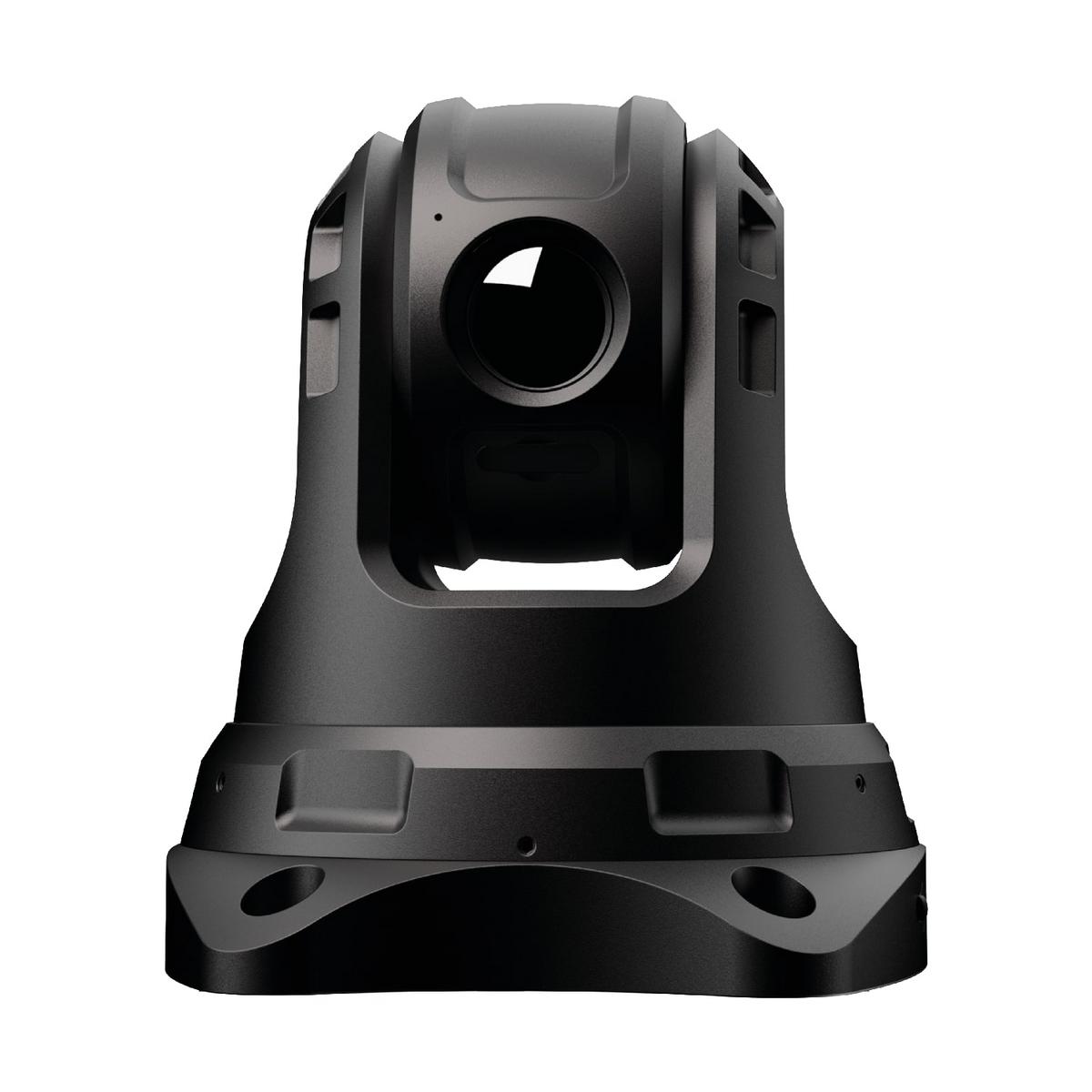

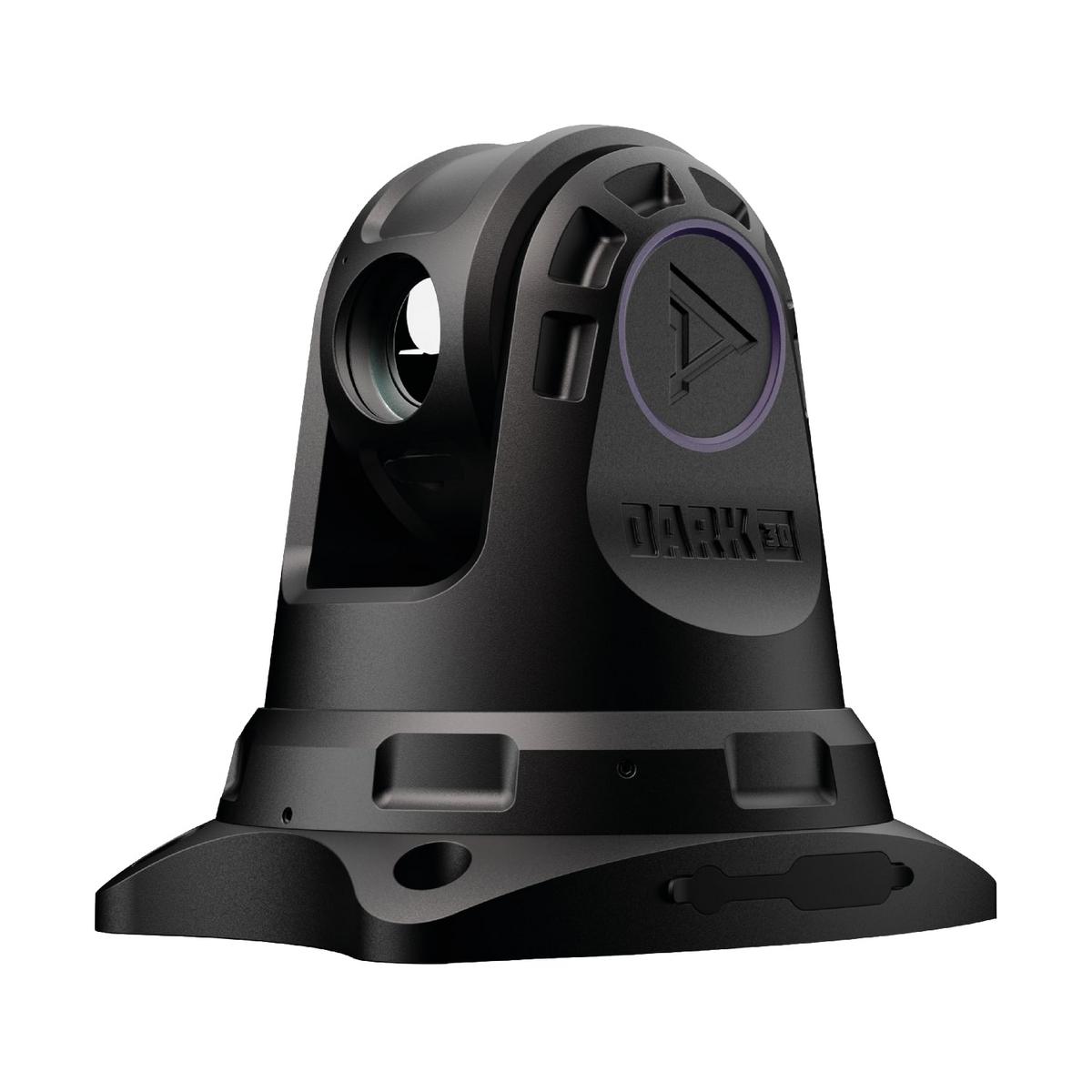

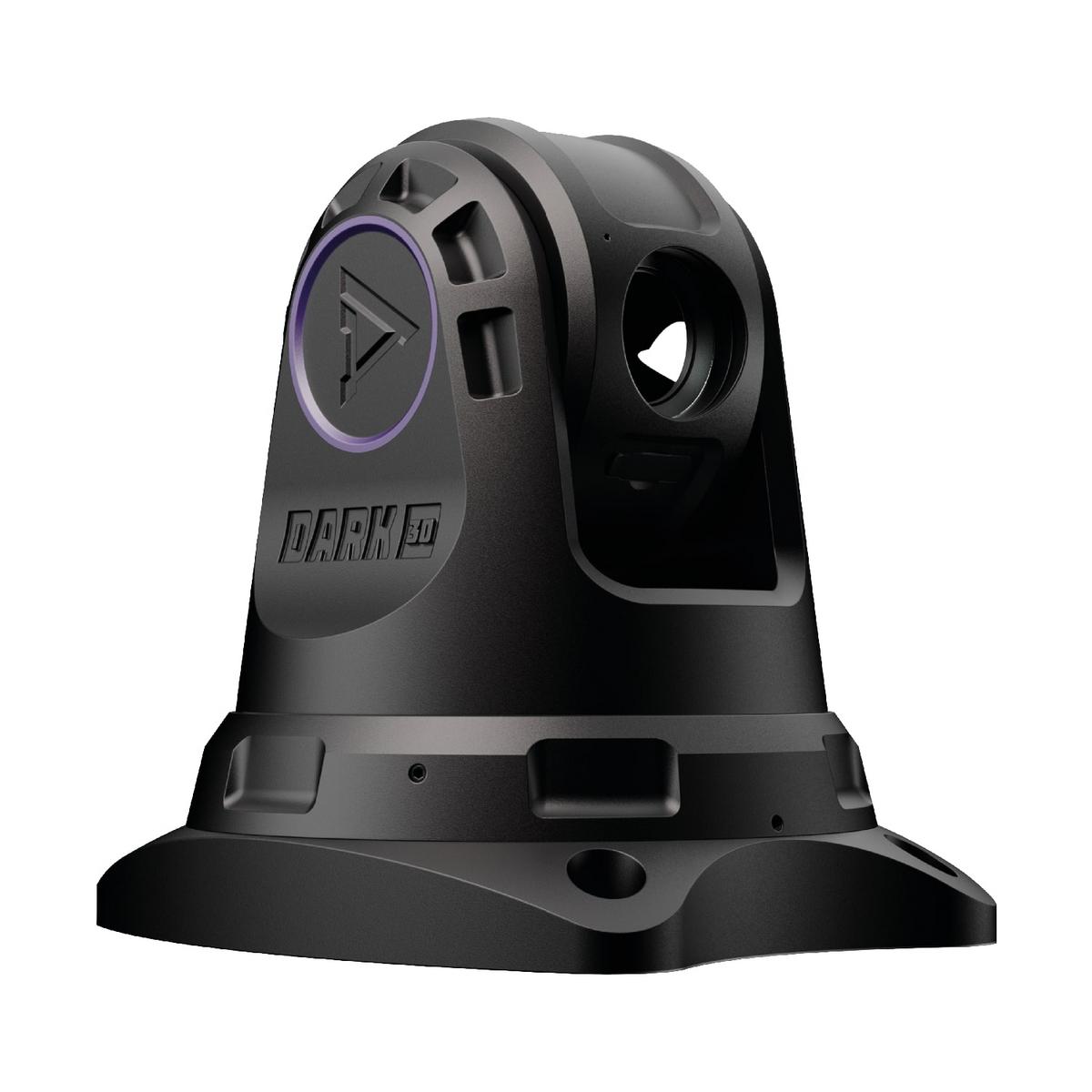

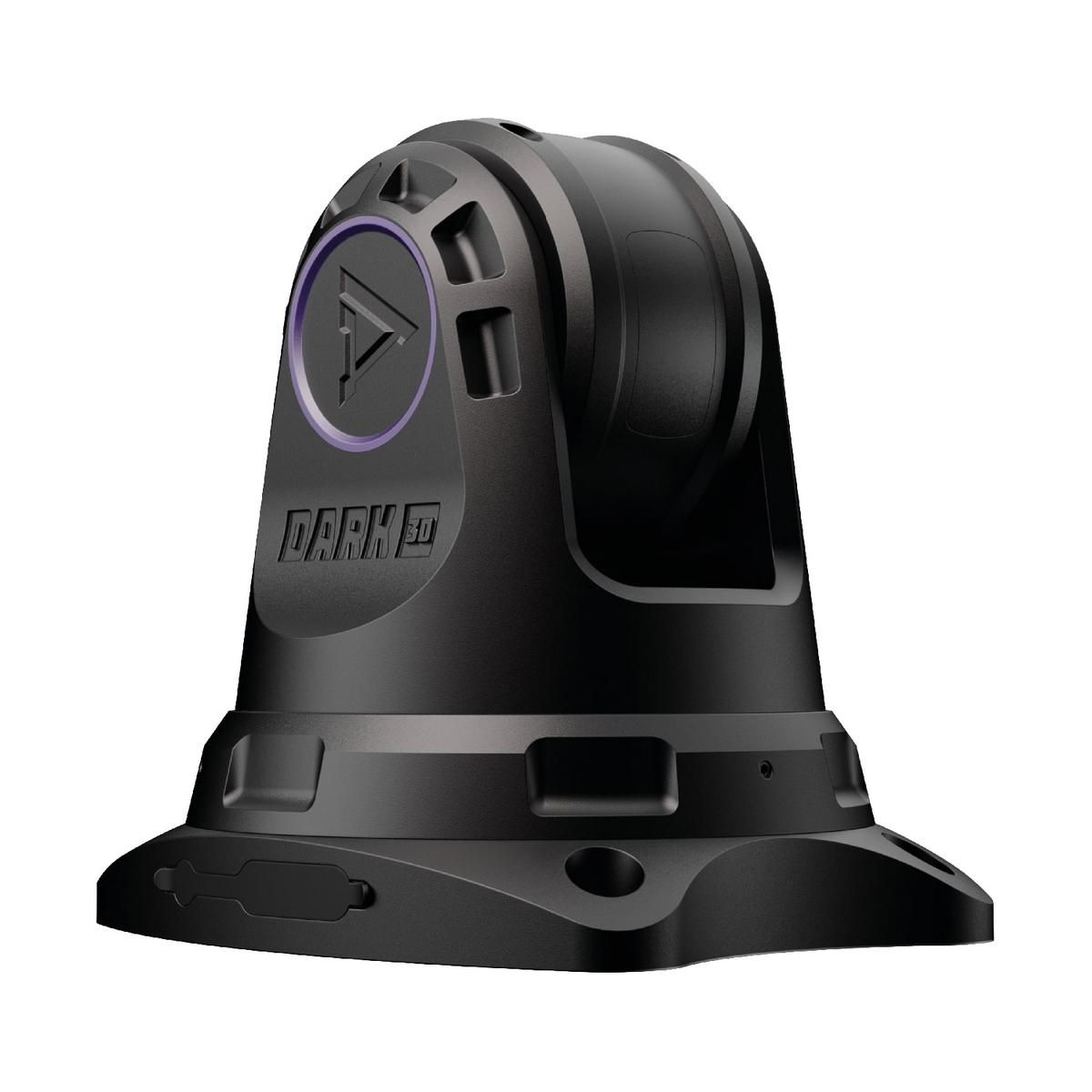

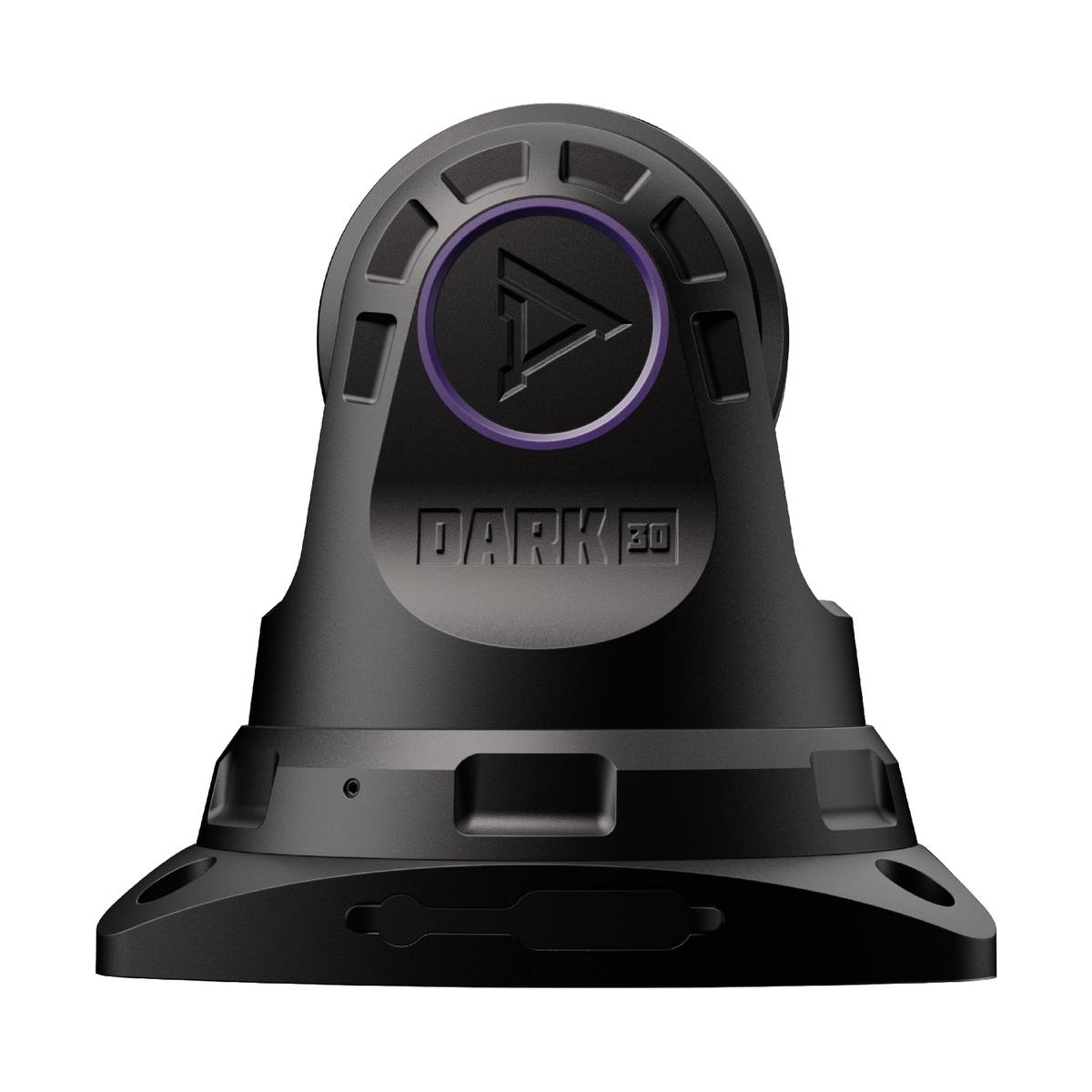

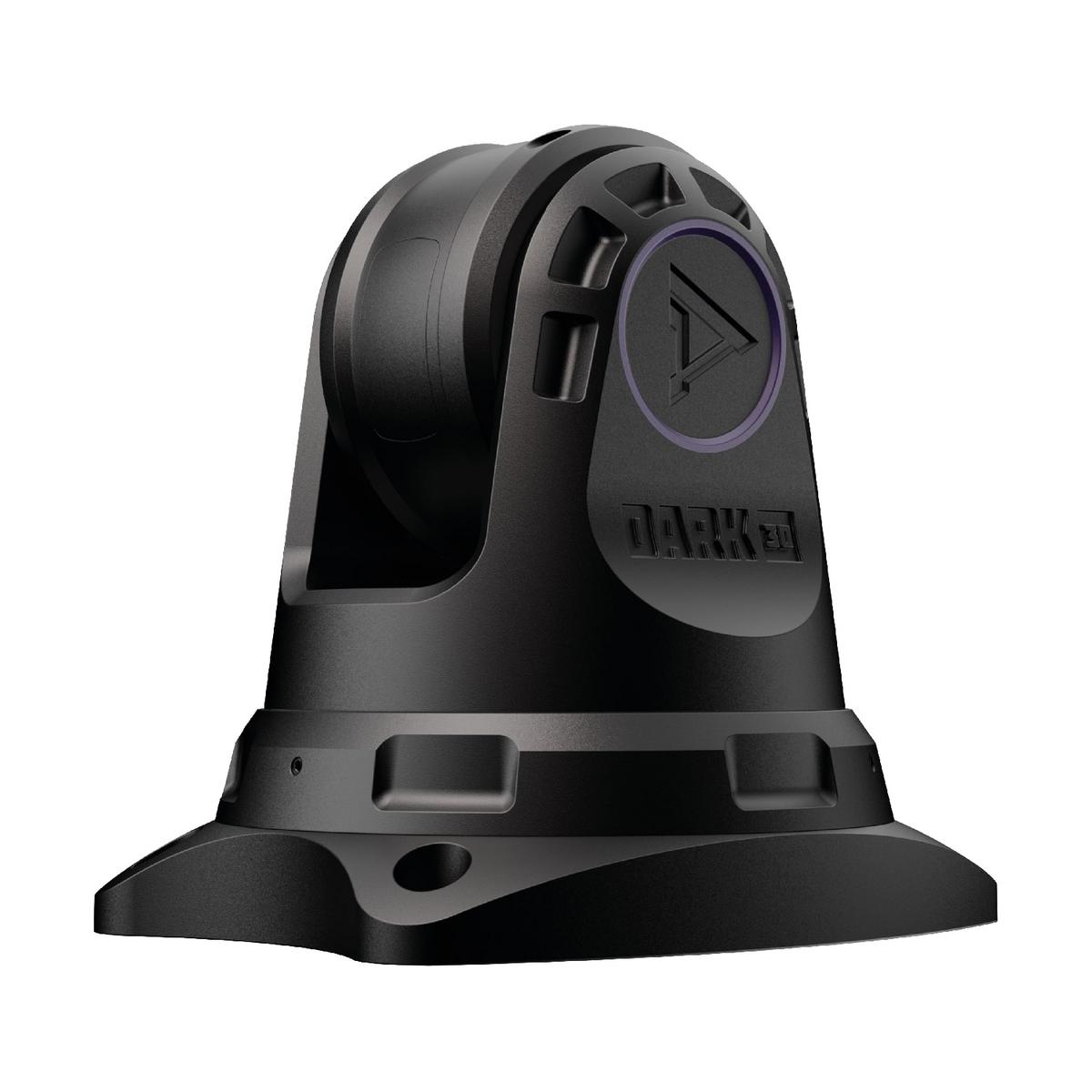

Dark 30 Defiance 640 PTZ

• Thermal Sensor    640×480, 17µm, <30mK NETD
• Frame Rate    60 fps
• Spectral Range    8-14µm
• Detection Range    1140 m
• Colour Palettes    5
• Water Resistance    IP66
• Pan Angle    Continuous 360°
• Tilt Angle    Straight downward to 45 degrees above horizontal
• Body Material    Aluminium
• Width    6.65” / 169 mm
• Depth    7.68“ / 195 mm
• Height    7.8” / 198 mm
• Weight    94.5 oz / 2680 g
• Operating Temperature Range °F / °C    -4°F to 122°F / -20°C to 50°C
• Ports    1 TF card slot, 2 HDMI ports, 2 DC ports
• Display Type    LCD
• Screen Size    10.1″
• Power Supply    12V DC
• Camera Amperage @12V DC    750mA
• Display Amperage @ 12V DC    320mA
• Adaptor Connection with both Camera and Display    1200mA
• Lens Material    Germanium
• Lens    32mm f1.00
• Focal Length    30 mm
• Digital Zoom    1-8x
• FOV Horizontal    20°
• FOV Verticle    15°
• FOV Diagonal    25°

Expand Your Horizons

The Dark 30 Defiance 640 PTZ is a powerful vehicle-mounted thermal imaging camera designed to open up your observation area to the extreme. Fitted with a powerful 640×480, 17µm, <30mK NETD thermal sensor and 32mm germanium objective lens and boasting a wide 20° FOV and 360° pan-and-tilt capabilities, this intuitive camera will allow you to scan the entire observation area and detect even the smallest heat source at a range of up to 1140m, all from the comfort of your car.

See with Crystal Clarity

As the only PTZ camera currently on the market to come with a direct camera-to-screen interface, images are presented in stunning 1920×1200 high-definition onto a generous 10.1” LCD screen with almost no latency, providing a near-lossless thermal image and enhancing your situational awareness. Setting the screen up and breaking it back down when not in use is nice and simple, allowing you to focus less on getting ready and more on the task at hand.

Tailor Your Experience with Five Thermal Palettes

Five thermal imaging palettes are available on the large display screen, allowing you to adapt to changes in environmental conditions. White Hot and Black Hot palettes are perfect for detection, distinctly pinpointing hotspots. Rainbow, Magenta, and Green Hot palettes are excellent choices when it comes to identifying an observed object’s minute anatomical features.

Discover a Multitude of Mounting Options

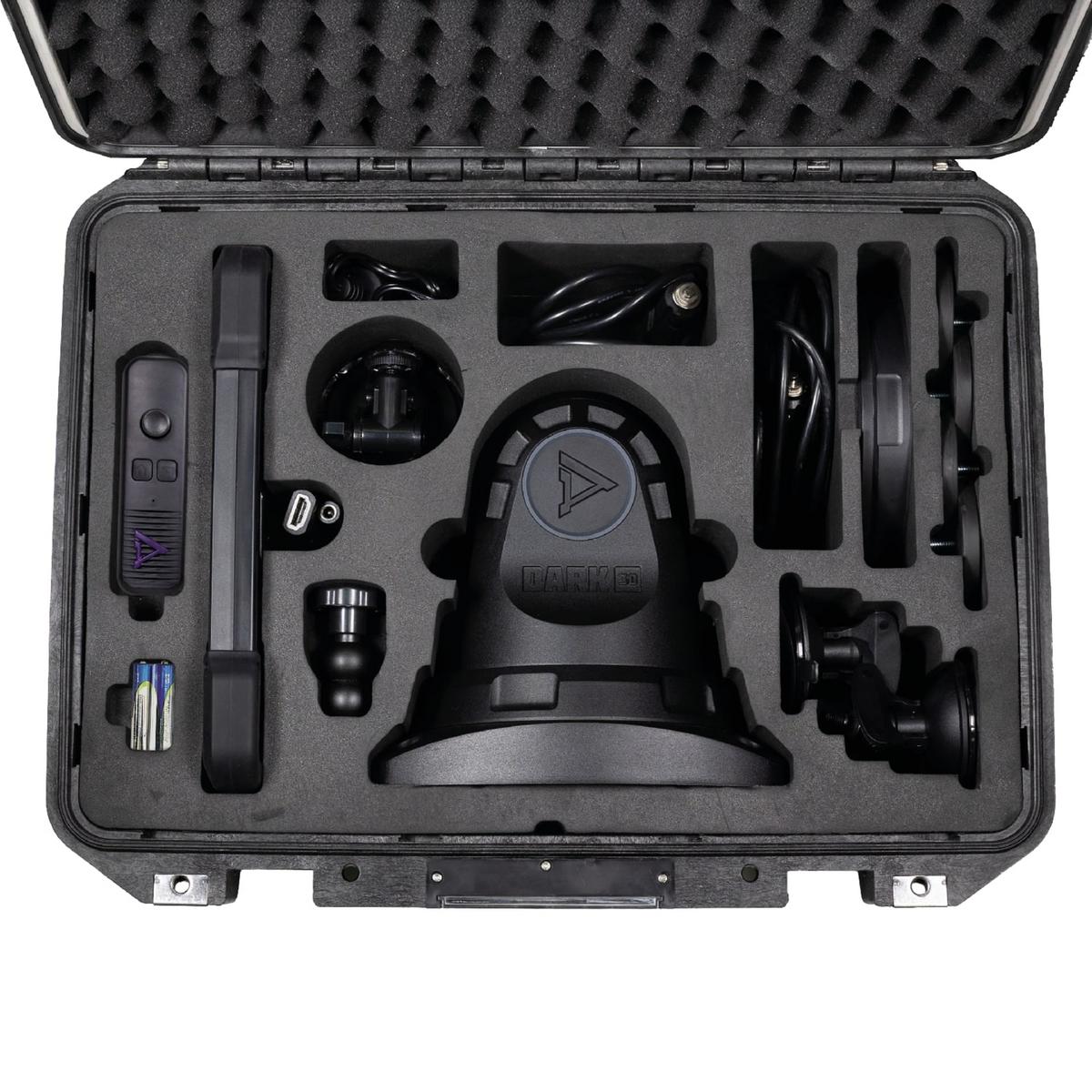

Multiple mounting options are available, catering to all types of user needs. Use the suction cup or magnetic feet if you want to mount the camera during observations and dismount it when not in use or go for the direct mount to bolt it to a vehicle for a more permanent thermal solution. Installation has been made nice and simple, with all required hardware provided — ensuring you’re ready to go in no time at all.

Built to Endure

With an IP66 rating and a durable aluminium bodyshell, the Defiance 640 PTZ has been designed to endure whatever mother nature has to throw at you. Whether you’re caught in a downpour or sweating it out in a heatwave, with its waterproof qualities and resistance to extreme temperatures (from -20 to +50°) this robust and reliable thermal imaging PTZ won’t let the weather dictate your observation experience.

Take Control with the Dark 30 App

Download the free Dark 30 app (available for both Android and iOS devices) to gain control over the Dark 30 Defiance 640 PTZ through your smartphone or tablet and stay in command of your device no matter how you’re using it.

Specs

• Thermal Sensor    640×480, 17µm, <30mK NETD
• Frame Rate    60 fps
• Spectral Range    8-14µm
• Detection Range    1140 m
• Colour Palettes    5
• Water Resistance    IP66
• Pan Angle    Continuous 360°
• Tilt Angle    Straight downward to 45 degrees above horizontal
• Body Material    Aluminium
• Width    6.65” / 169 mm
• Depth    7.68“ / 195 mm
• Height    7.8” / 198 mm
• Weight    94.5 oz / 2680 g
• Operating Temperature Range °F / °C    -4°F to 122°F / -20°C to 50°C
• Ports    1 TF card slot, 2 HDMI ports, 2 DC ports
• Display Type    LCD
• Screen Size    10.1″
• Power Supply    12V DC
• Camera Amperage @12V DC    750mA
• Display Amperage @ 12V DC    320mA
• Adaptor Connection with both Camera and Display    1200mA
• Lens Material    Germanium
• Lens    32mm f1.00
• Focal Length    30 mm
• Digital Zoom    1-8x
• FOV Horizontal    20°
• FOV Verticle    15°
• FOV Diagonal    25°

•
