Thermal Sensor: 384×288, 17µm
sNETD: <15 mK
Objective Lens: 50 mm f1.0
Detection Range: 1800 m
Field of View: 7.5° | 13.1 m @ 100 m
Magnification Range: 3.5–14x
Display: 1920×1080 Full-HD AMOLED
Frame Rate: 50 Hz
Click Value: 9.1 mm @ 100 m
Click Range (H/V): 1800 m @ 100 m / 1800 m @ 100 m
Eye Relief: 50 mm / 1.97 inch
Dioptre Adjustment: -5 / +5
Sensitivity Adjustment: Normal / High / Ultra
Colour Palettes: 9 (White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Sepia, Red Monochrome, Violet, Green)
Image Enhancement: Smoothing filter
Display Off: Yes
Auto Shut-off: Yes
Mobile Applications: Stream Vision 2, Stream Vision Ballistics
Built-in Rangefinder: Yes
Rangefinder Measurement Range: 1200 m
Battery Type: LPS7i
Battery Life: Up to 10 hours (depending on temperature)
Max. Recoil Power: 6000 joules
External Power: 5V / 9V USB Type-C
Housing Material: Magnesium Alloy
Level of Protection: IP67
Calibration: Manual / Auto / Semi-auto
Video Recording / Still Image Capture: Yes (with audio) / Yes
Built-in Memory: 64 GB
USB: USB Type-C
Wi-Fi Waveband: 2.4 GHz / 5 GHz
Bluetooth: Yes
Dimensions: 271 × 86 × 71 mm
Weight: 870 g
Mount: Weaver N-Mount

Precision in Any Condition: Pro-grade Optics

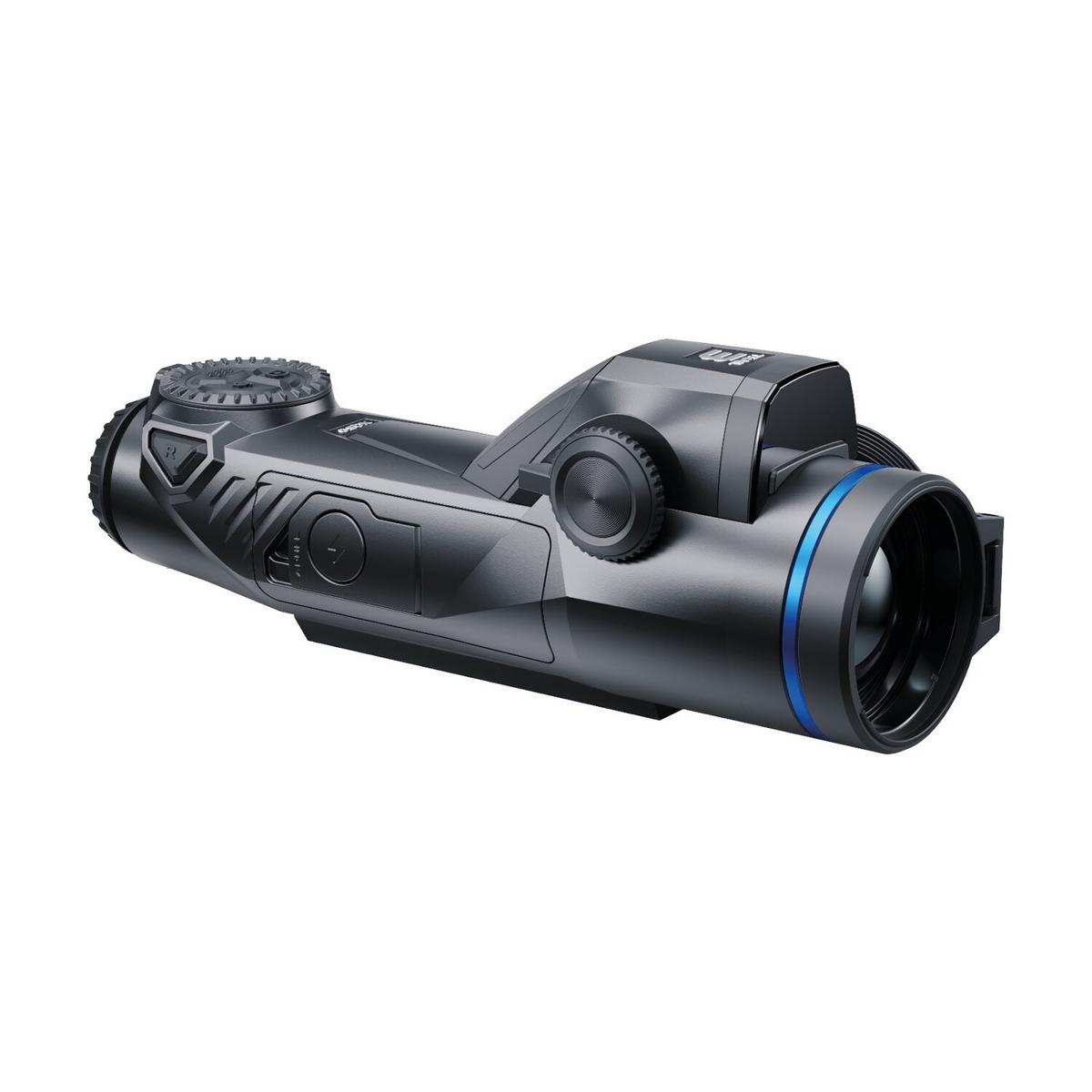

Optimised for short- to mid-range shooting in challenging weather and low-contrast environments, the Trail 3 LRF XQ50 features a professional-grade 384×288, 17µm thermal sensor and a powerful 50 mm f1.0 germanium objective lens, providing a detection range of up to 1800 m and a FOV of 7.5°.

<15mK sNETD thermal sensitivity delivers a crystal-clear thermal image in ever-changing hunting conditions, including adverse weather such as dense fog, heavy rain, and high humidity.

These thermal images are presented with exceptional clarity on the Trail 3’s Full-HD 1920×1080 AMOLED display. An in-built proximity sensor automatically switches the display off when the device is lowered and not in use, reducing light bleed in the field while preserving battery life — so you can focus on your hunt without worrying about power.

Confidence with Every Shot: Built-in Laser Rangefinder & Stream Vision Ballistics

A built-in precision laser rangefinder provides a measuring distance of up to 1200 m with an accuracy of ±1 m. This delivers valuable distance data, allowing you to determine your target range and shoot with confidence.

The LRF also supplies crucial distance data when paired with the Stream Vision Ballistics app. Using sophisticated algorithms, Stream Vision Ballistics provides accurate trajectory corrections and a suggested point of aim (SPOA). It can create ammo-specific profiles, allowing you to transfer the Trail 3 between rifles without an elongated setup process.

Enhanced Precision: Picture-in-Picture Mode

Precision is enhanced through the Trail 3’s rounded Picture-in-Picture function. This provides a separate viewing section (approximately 10% of the display) in the centre of the screen, allowing you to zoom through the full 3.5–14x magnification range while maintaining complete situational awareness.

Adapt to Your Environment: 9 Colour Palettes

The Trail 3 offers a choice of 9 colour palettes for effective observation in varying conditions:

• White Hot

• Black Hot

• Red Hot

• Rainbow

• Ultramarine

• Sepia

• Red Monochrome

• Violet

• Green

White Hot, Black Hot, and Red Hot are ideal for object detection.
Rainbow and Ultramarine enhance recognition and identification.
Sepia, Red Monochrome, and Violet are suited for extended night-time observation.
Green mimics traditional night vision and is proven to reduce eye strain during prolonged viewing.

Built for Professional Use: Robust Design

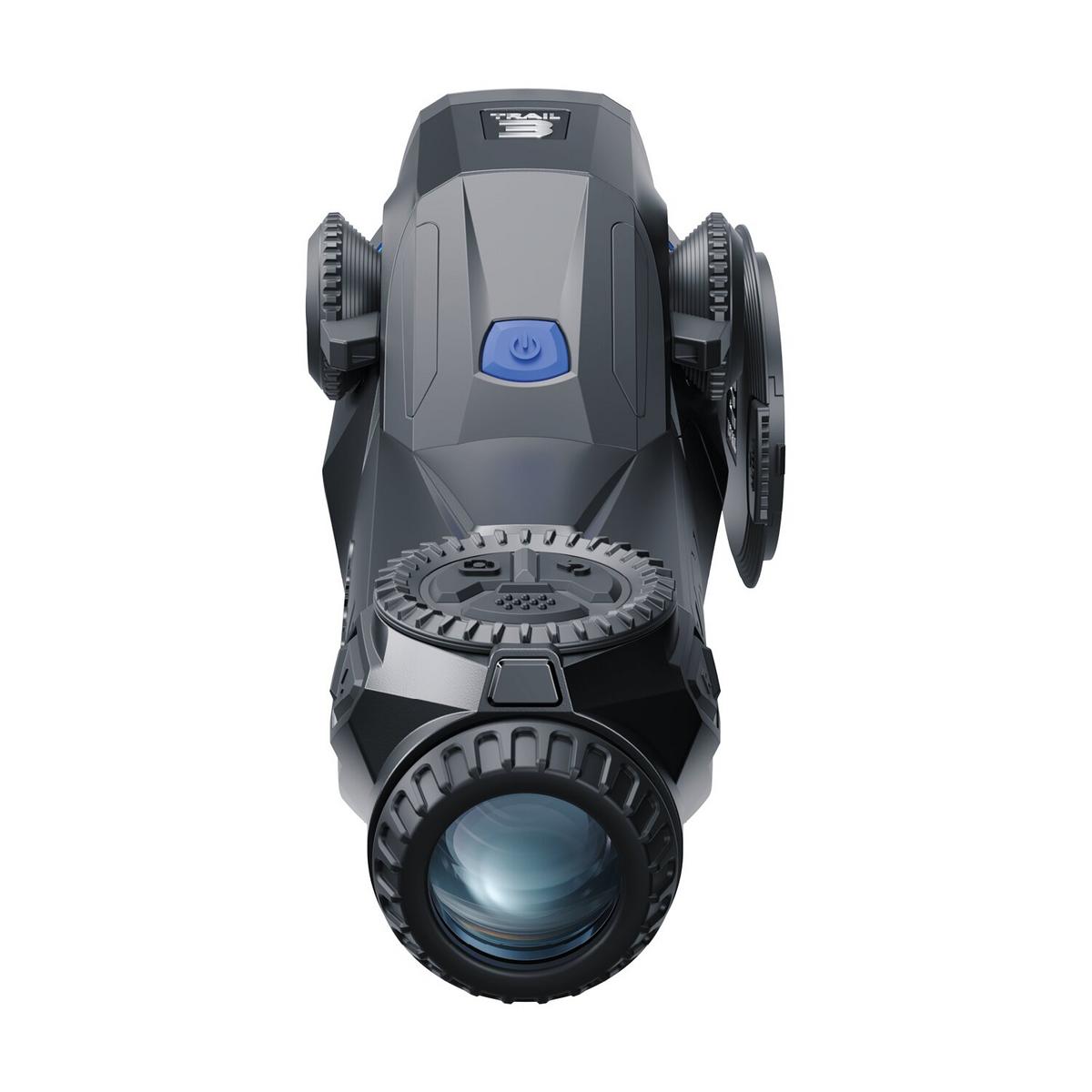

A robust and durable design includes ambidextrous focusing knobs, making the Trail 3 suitable for both left- and right-handed shooters.

The rugged magnesium alloy bodyshell protects against knocks and scrapes in demanding field conditions, while the IP67 protection rating ensures reliable performance in heavy rain, snow, and harsh environments.

Fully operational in temperatures from -25°C to +55°C, the Trail 3 is recoil-rated up to 6000 joules thanks to its robust monoblock construction. It is suitable for high-calibre rounds including 9.3×64, .30-06, .300, .375 H&H, as well as smooth-bore and pneumatic rifles.

More Hunting Opportunities: Up to 10 Hours of Battery Life

The Trail 3 uses a replaceable, rechargeable LPS7i battery pack, providing up to 10 hours of operation (depending on temperature and usage).

The quick-release battery compartment allows fast battery changes, ensuring minimal interruption during use in low-light conditions.

Built-in Video Recorder

Capture key moments with the built-in video recorder, which records video with audio and captures still images.

Files are stored directly on the generous 64 GB of internal memory or can be transferred via the Stream Vision 2 app for sharing or backup.

Stream Vision 2 Connectivity

A built-in Wi-Fi module enables connection to the Stream Vision 2 app, offering:

• Use of a smartphone as a wireless remote control

• Real-time display mirroring on a mobile device

• Remote video recording and still image capture

• Browsing and downloading of saved photos and videos

• Remote firmware updates

Technical Specifications

Thermal Sensor: 384×288, 17µm
sNETD: <15 mK
Objective Lens: 50 mm f1.0
Detection Range: 1800 m
Field of View: 7.5° | 13.1 m @ 100 m
Magnification Range: 3.5–14x
Display: 1920×1080 Full-HD AMOLED
Frame Rate: 50 Hz
Click Value: 9.1 mm @ 100 m
Click Range (H/V): 1800 m @ 100 m / 1800 m @ 100 m
Eye Relief: 50 mm / 1.97 inch
Dioptre Adjustment: -5 / +5
Sensitivity Adjustment: Normal / High / Ultra
Colour Palettes: 9 (White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Sepia, Red Monochrome, Violet, Green)
Image Enhancement: Smoothing filter
Display Off: Yes
Auto Shut-off: Yes
Mobile Applications: Stream Vision 2, Stream Vision Ballistics
Built-in Rangefinder: Yes
Rangefinder Measurement Range: 1200 m
Battery Type: LPS7i
Battery Life: Up to 10 hours (depending on temperature)
Max. Recoil Power: 6000 joules
External Power: 5V / 9V USB Type-C
Housing Material: Magnesium Alloy
Level of Protection: IP67
Calibration: Manual / Auto / Semi-auto
Video Recording / Still Image Capture: Yes (with audio) / Yes
Built-in Memory: 64 GB
USB: USB Type-C
Wi-Fi Waveband: 2.4 GHz / 5 GHz
Bluetooth: Yes
Dimensions: 271 × 86 × 71 mm
Weight: 870 g
Mount: Weaver N-Mount

•
