Thermal Sensor: 640×480, 12µm
sNETD: <18 mK
Objective Lens: 50 mm f1.0
Detection Range: 2200 m
Field of View: 8.8° | 15.4 m @ 100 m
Magnification Range: 3–24x
Display: 1920×1080 Full-HD AMOLED
Frame Rate: 50 Hz
Click Value: 10.7 mm @ 100 m
Click Range (H/V): 2200 m @ 100 m / 2200 m @ 100 m
Eye Relief: 50 mm / 1.97 inch
Dioptre Adjustment: -5 / +5
Sensitivity Adjustment: Normal / High / Ultra
Colour Palettes: 9 (White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Sepia, Red Monochrome, Violet, Green)
Image Enhancement: Smoothing filter
Display Off: Yes
Auto Shut-off: Yes
Mobile Applications: Stream Vision 2, Stream Vision Ballistics
Built-in Rangefinder: Yes
Rangefinder Measurement Range: 1200 m
Battery Type: LPS7i
Battery Life: Up to 10 hours (depending on temperature)
Max. Recoil Power: 6000 joules
External Power: 5V / 9V USB Type-C
Housing Material: Magnesium Alloy
Level of Protection: IP67
Calibration: Manual / Auto / Semi-auto
Video Recording / Still Image Capture: Yes (with audio) / Yes
Built-in Memory: 64 GB
USB: USB Type-C
Wi-Fi Waveband: 2.4 GHz / 5 GHz
Bluetooth: Yes
Dimensions: 271 × 86 × 71 mm
Weight: 870 g
Mount: Weaver N-Mount

Precision in Any Condition: Pro-grade Optics

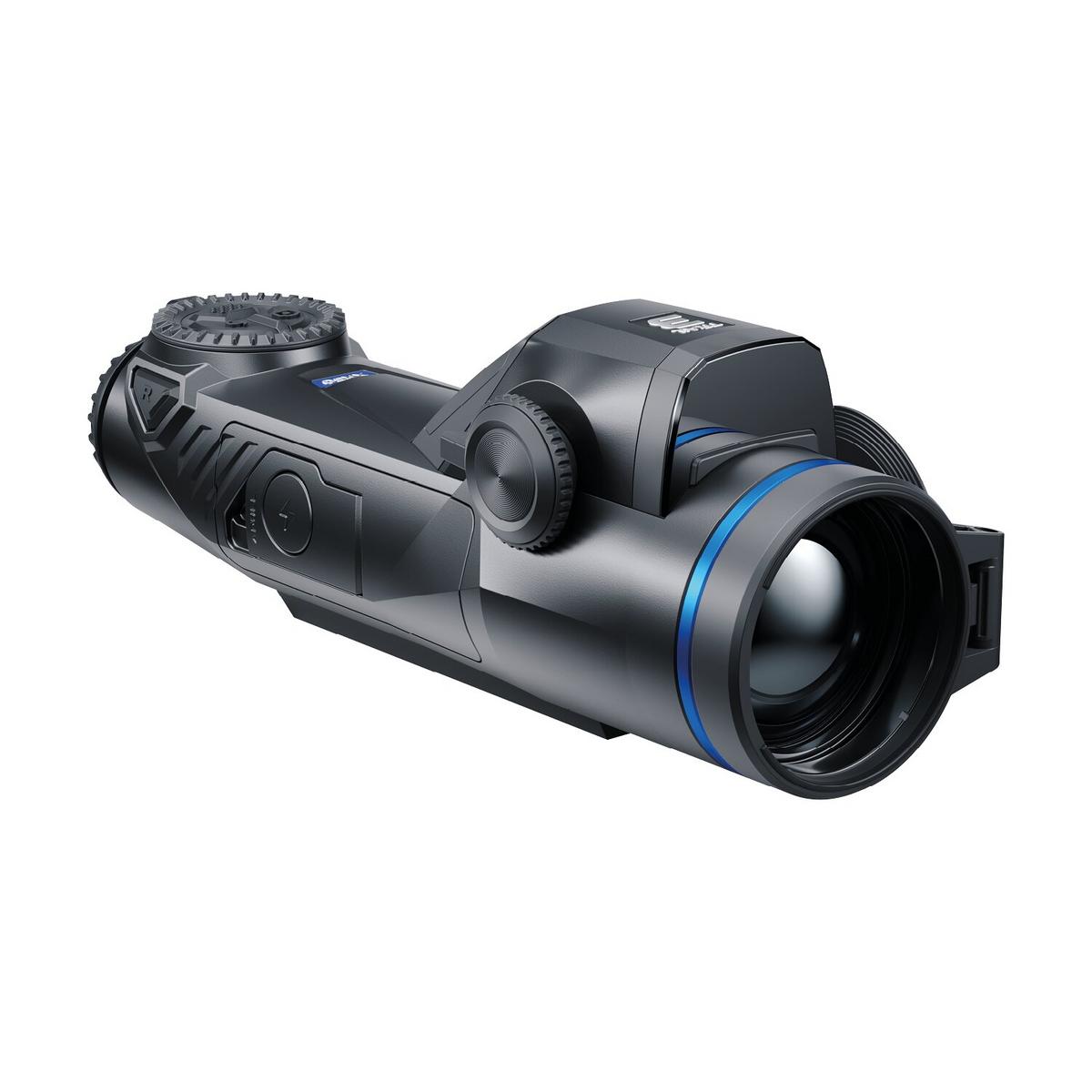

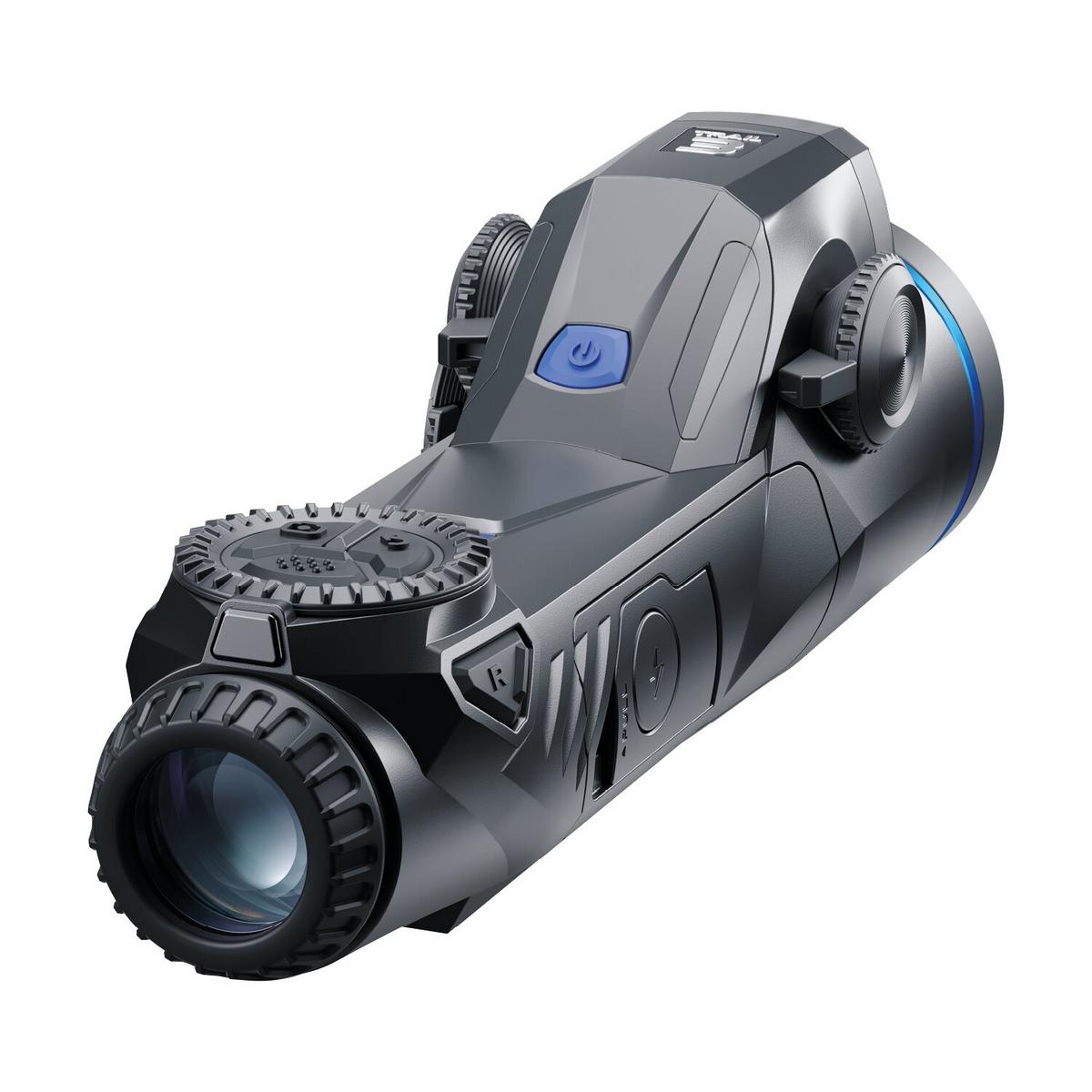

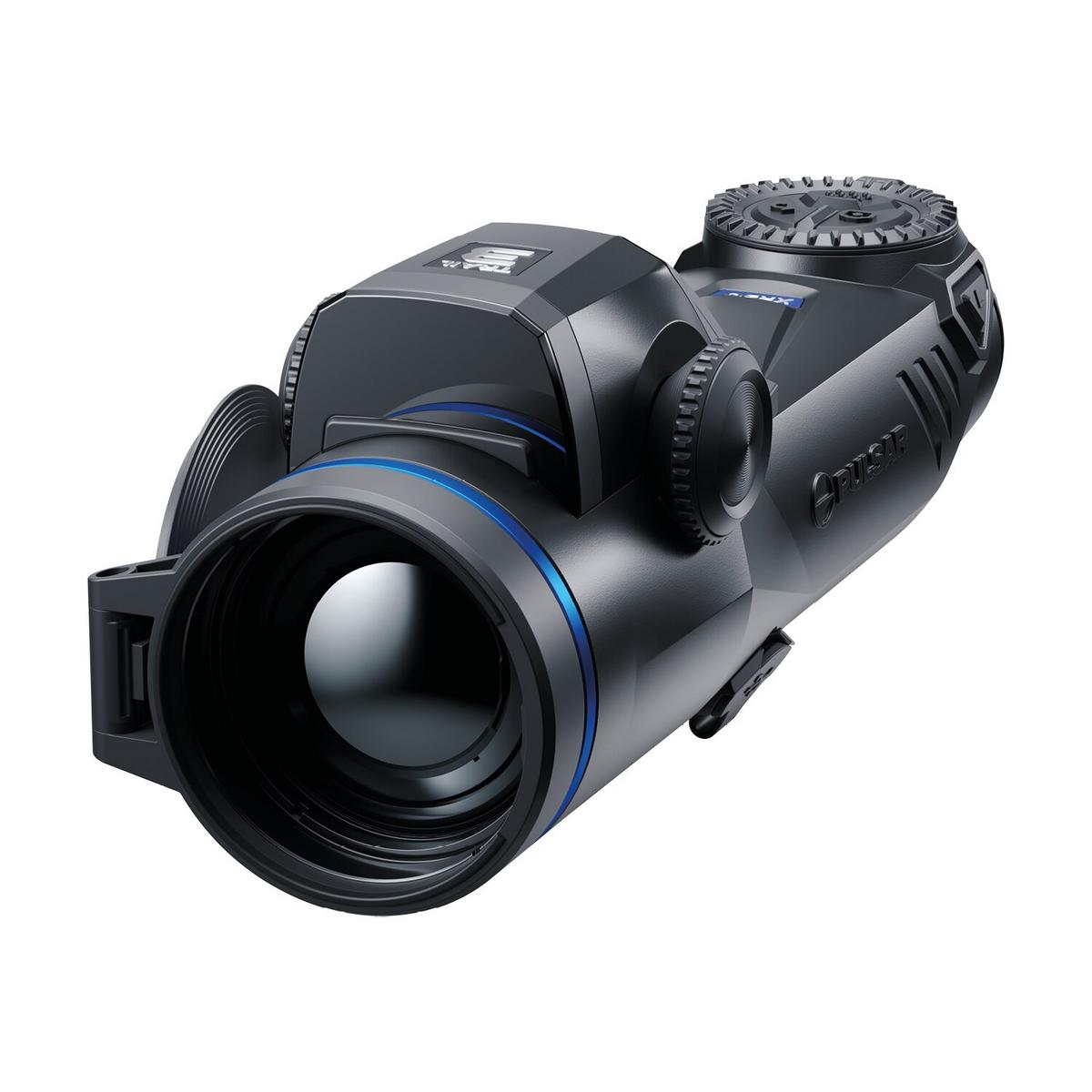

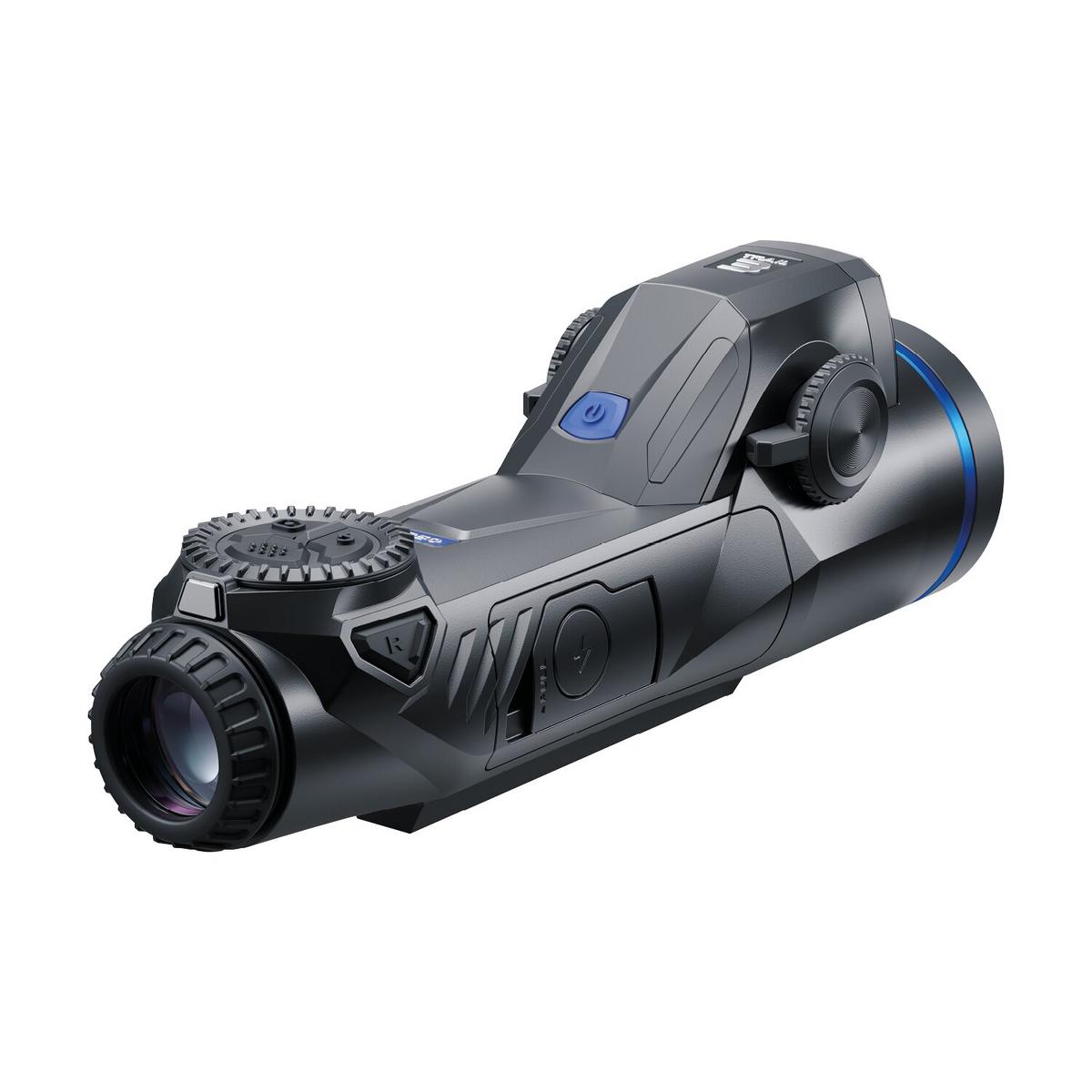

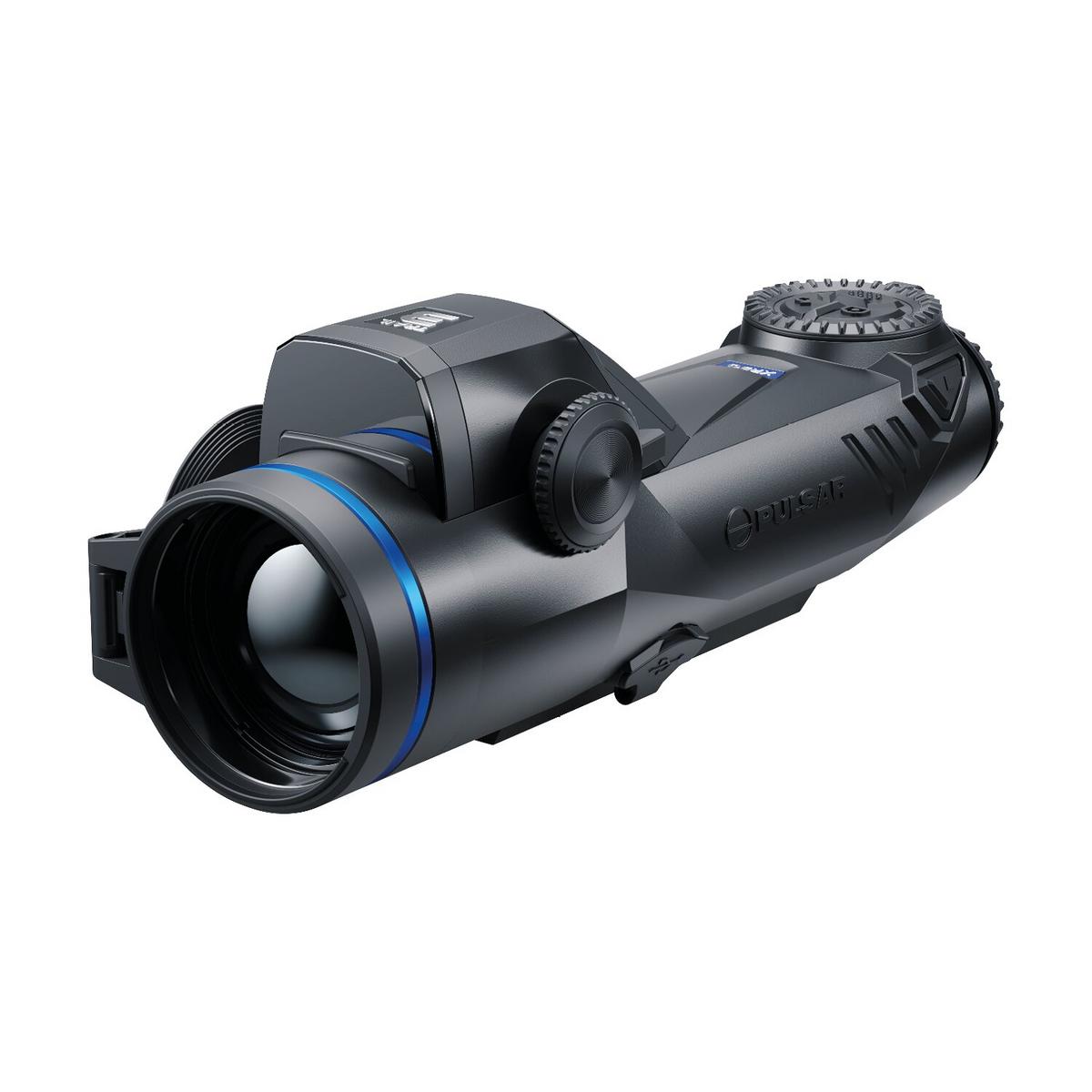

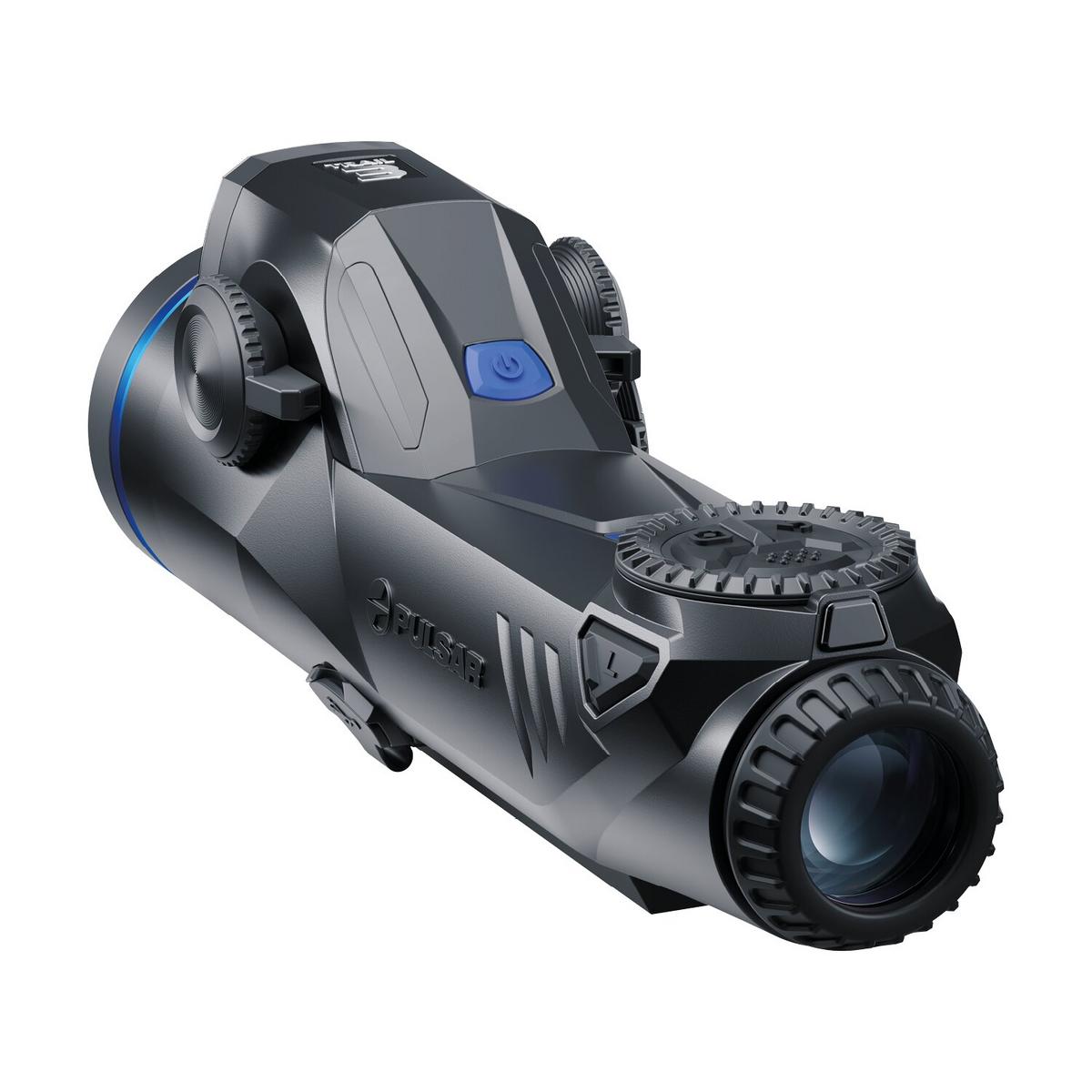

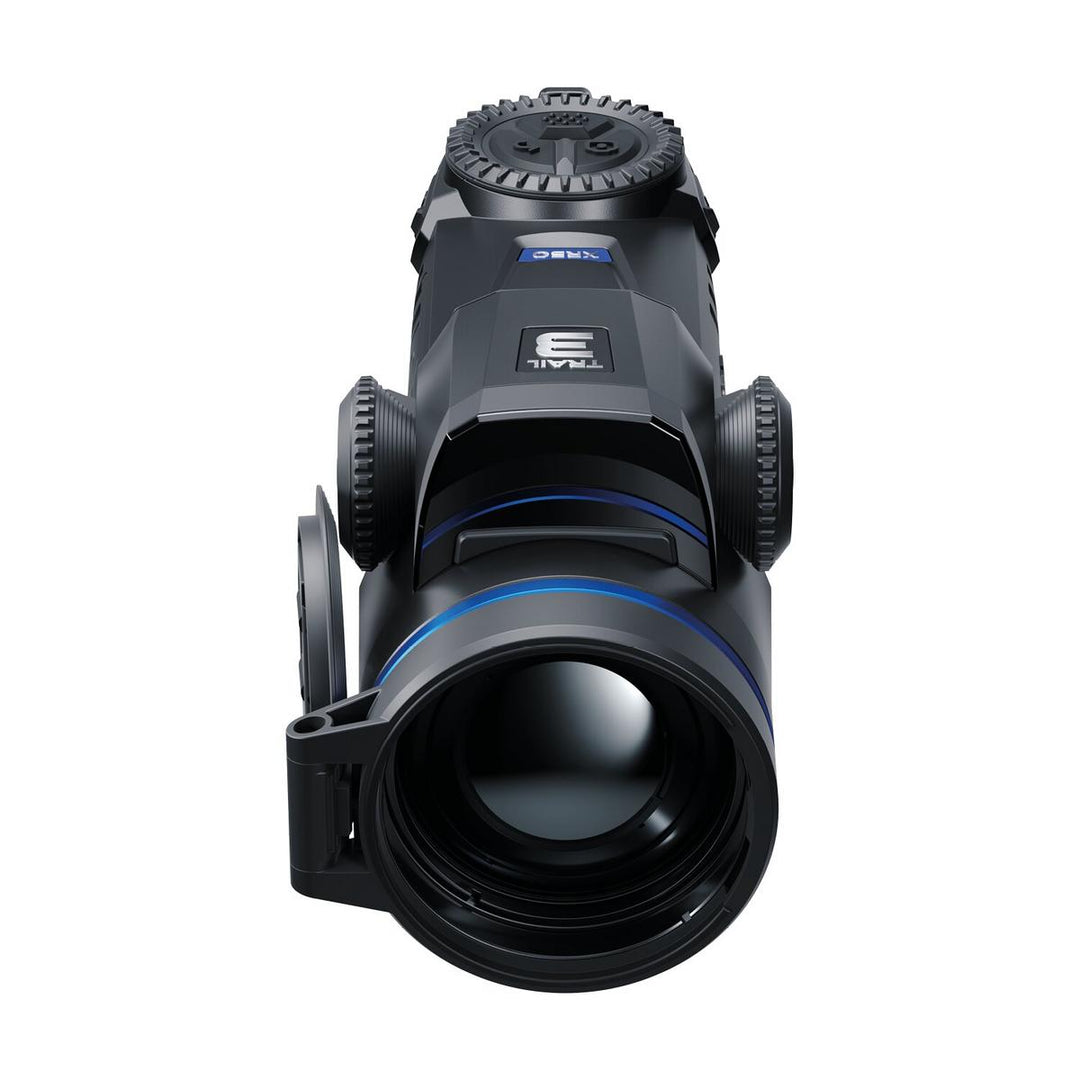

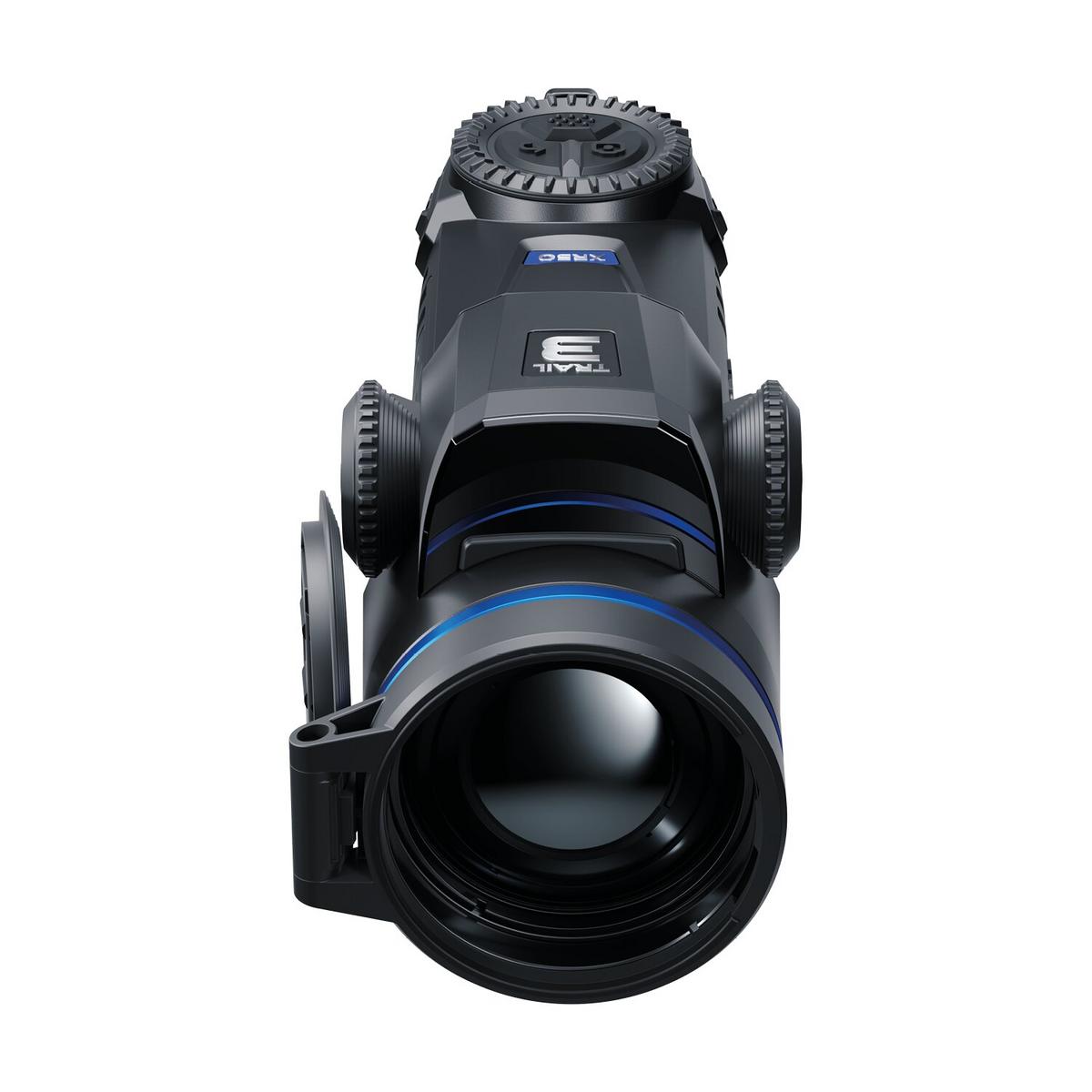

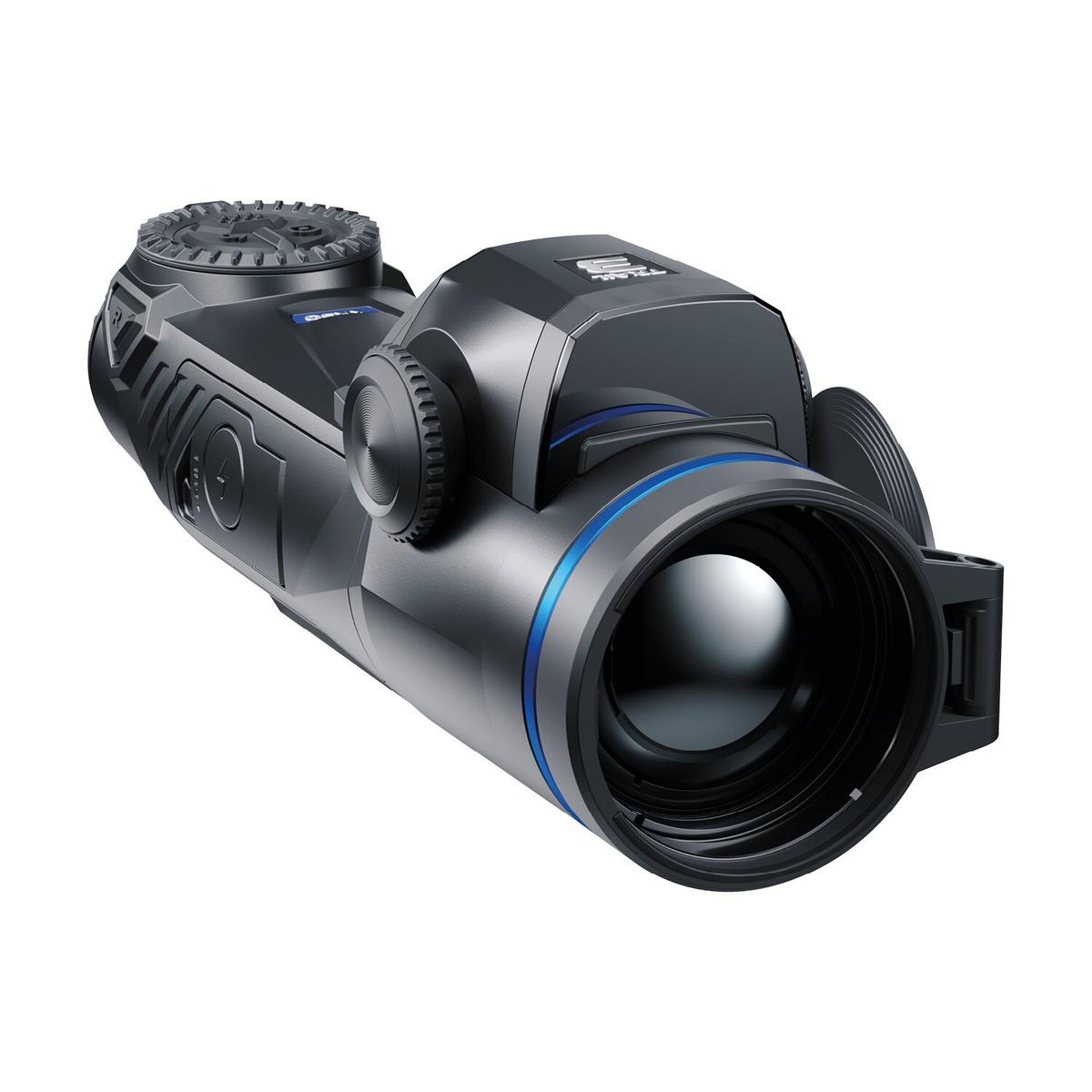

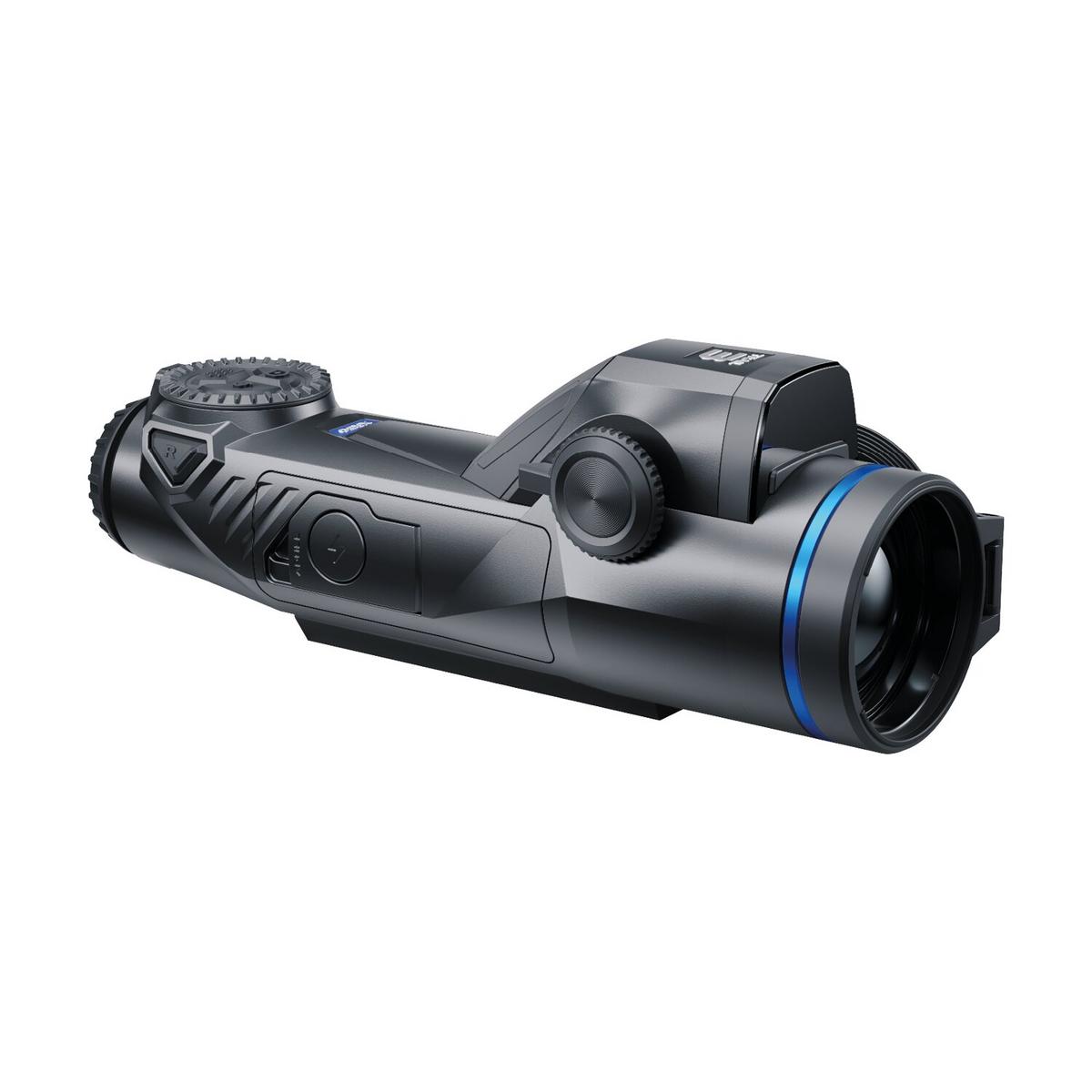

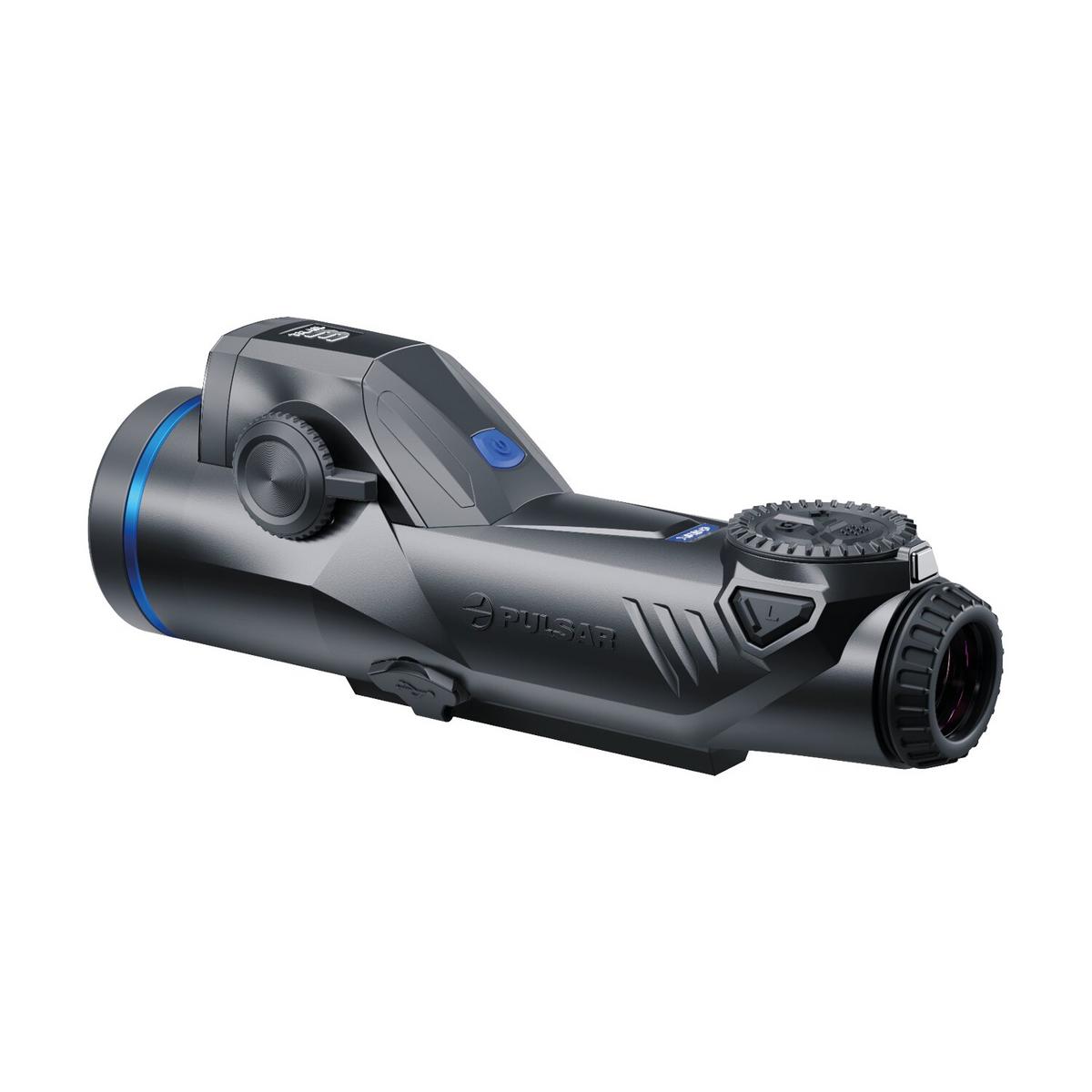

Optimised for long-range hunting across open landscapes, the Trail 3 LRF XR50 features a professional-grade 640×480, 12µm thermal sensor and a powerful 50 mm f1.0 germanium objective lens, providing a detection range of up to 2200 m and a FOV of 8.8°.

<18mK sNETD thermal sensitivity delivers a crystal-clear thermal image in ever-changing hunting conditions, including adverse weather such as dense fog, heavy rain, and high humidity.

Thermal images are presented with exceptional clarity on the Trail 3’s Full-HD 1920×1080 AMOLED display. An in-built proximity sensor automatically switches the display off when the device is lowered and not in use, reducing light bleed in the field while preserving battery life — allowing you to focus on your hunt without worrying about power.

Confidence with Every Shot: Built-in Laser Rangefinder & Stream Vision Ballistics

A built-in precision laser rangefinder provides a measuring distance of up to 1200 m with an accuracy of ±1 m. This supplies valuable distance data, enabling confident and accurate shooting.

When paired with the Stream Vision Ballistics app, the LRF provides crucial distance input for trajectory correction and a suggested point of aim (SPOA). The app can also create ammo-specific profiles, allowing you to transfer the Trail 3 between rifles without a lengthy setup process.

Enhanced Precision: Picture-in-Picture Mode

The Trail 3’s rounded Picture-in-Picture function enhances precision by providing a separate viewing window (approximately 10% of the display) in the centre of the screen. This allows you to zoom through the full 3–24x magnification range while maintaining complete situational awareness.

Adapt to Your Environment: 9 Colour Palettes

The Trail 3 offers a choice of 9 colour palettes to adapt to changing environmental conditions:

• White Hot

• Black Hot

• Red Hot

• Rainbow

• Ultramarine

• Sepia

• Red Monochrome

• Violet

• Green

White Hot, Black Hot, and Red Hot are ideal for object detection.
Rainbow and Ultramarine enhance recognition and identification.
Sepia, Red Monochrome, and Violet are well suited to extended night-time observation.
Green mimics traditional night vision and reduces eye strain during prolonged viewing.

Built for Professional Use: Robust Design

A robust and durable design includes ambidextrous focusing knobs, making the Trail 3 suitable for both left- and right-handed shooters.

The magnesium alloy bodyshell protects against knocks and scrapes in demanding field use. With an IP67 protection rating, the Trail 3 operates reliably in heavy rain, snow, and challenging environments.

Fully operational in temperatures from -25°C to +55°C, the riflescope is recoil-rated up to 6000 joules. Its monoblock construction allows use with high-calibre rounds including 9.3×64, .30-06, .300, .375 H&H, as well as smooth-bore and pneumatic rifles.

More Hunting Opportunities: Up to 10 Hours of Battery Life

The Trail 3 uses a replaceable, rechargeable LPS7i battery pack, providing up to 10 hours of operation (depending on temperature and usage).

A quick-release battery compartment allows fast battery changes, ensuring minimal interruption during use in low-light conditions.

Built-in Video Recorder

The built-in video recorder captures video with audio as well as still images.

Files are stored directly to the 64 GB internal memory or can be transferred via the Stream Vision 2 app for sharing and backup.

Stream Vision 2 Connectivity

A built-in Wi-Fi module connects to the Stream Vision 2 app, offering:

• Use of a smartphone as a wireless remote control

• Real-time display mirroring on a mobile device

• Remote video recording and still image capture

• Browsing and downloading of saved photos and videos

• Remote firmware updates

Technical Specifications

Thermal Sensor: 640×480, 12µm
sNETD: <18 mK
Objective Lens: 50 mm f1.0
Detection Range: 2200 m
Field of View: 8.8° | 15.4 m @ 100 m
Magnification Range: 3–24x
Display: 1920×1080 Full-HD AMOLED
Frame Rate: 50 Hz
Click Value: 10.7 mm @ 100 m
Click Range (H/V): 2200 m @ 100 m / 2200 m @ 100 m
Eye Relief: 50 mm / 1.97 inch
Dioptre Adjustment: -5 / +5
Sensitivity Adjustment: Normal / High / Ultra
Colour Palettes: 9 (White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Sepia, Red Monochrome, Violet, Green)
Image Enhancement: Smoothing filter
Display Off: Yes
Auto Shut-off: Yes
Mobile Applications: Stream Vision 2, Stream Vision Ballistics
Built-in Rangefinder: Yes
Rangefinder Measurement Range: 1200 m
Battery Type: LPS7i
Battery Life: Up to 10 hours (depending on temperature)
Max. Recoil Power: 6000 joules
External Power: 5V / 9V USB Type-C
Housing Material: Magnesium Alloy
Level of Protection: IP67
Calibration: Manual / Auto / Semi-auto
Video Recording / Still Image Capture: Yes (with audio) / Yes
Built-in Memory: 64 GB
USB: USB Type-C
Wi-Fi Waveband: 2.4 GHz / 5 GHz
Bluetooth: Yes
Dimensions: 271 × 86 × 71 mm
Weight: 870 g
Mount: Weaver N-Mount

•
